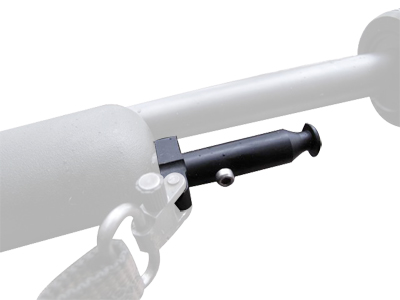

Vektor Maskin Bipod mount. Fits Blaser R93

This is a high quality bipod mount, designed to fit on the Blaser R93 Offroad and Professional. It is compatible with the connection on Versapod, Parker Hale and similar brands. The mount comes with a attachment point for a swivel mount for the sling.

Installing the mount is very simple:

1. Remove the front sling stud and replace the screw with the one supplied with the bipod mount

2.Place the shortest end of the bipod mount into the hole where the sling stud used to be. Engage the screw in the threads and pull the mount loosely into the stock.

3. Adjust orientation of the bipod mount. The sling interface should point downward/away from the barrel. Do this properly now, you only get one shot at correct alignment due to the two ears on either side of the threaded hole which are designed to cut its way into the stock material.

4. Tighten the screw. Observe that the bipod mount will move into the stock the same as the height of the ears as these cut their way into the stock



Weight: 15 grams

Black, non-reflective surface coating
