Schmidt Bender

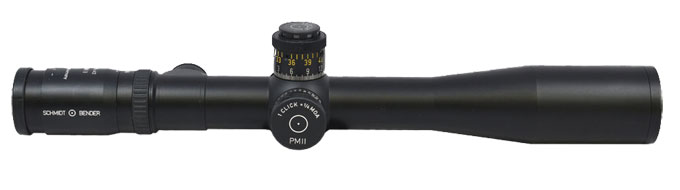

Schmidt Bender PMII Riflescope 4-16x42 P4 Fine CW DT Scope
This item may be regulated for export by the U.S. Department of State or the US Department of Commerce. Please see our Export Policy
Description
Built at the request of the U.S. military to provide a long range capable scope with a smaller objective diameter. Includes illuminated reticle and parallax adjustment, each controlled by a separate turret.
There are two elevation adjustment options: Option One is a single turn, counter clockwise turret with 0.1 Mil click values and 13 MRad/130cm/46.8 MOA of adjustment. Option Two is a double turn clockwise turret with 1/4 MOA click values and 56 MOA total adjustment. Offered with P3 or P4 Fine reticles.
Specifications
SKU
SRP041642-BP4FDM
MPN
SRP041642-BP4FDM
Eye Relief
3.5"
Field of View
22.5'
Illuminated Reticle
yes
Magnification Range
4-16
Reticle Position
First Focal Plane
Scope Finish
matte black
Scope Length
15.5"
Scope Objective Diameter
42 mm
Scope Tube Size / Mount
34 mm
Turret Adjustment (Click Value)
.25 MOA clockwise adjustment
56 MOA elevation travel
+-14 MOA windage
Scope Weight
31.25 oz
Item Condition
New
Product Type
Riflescopes
