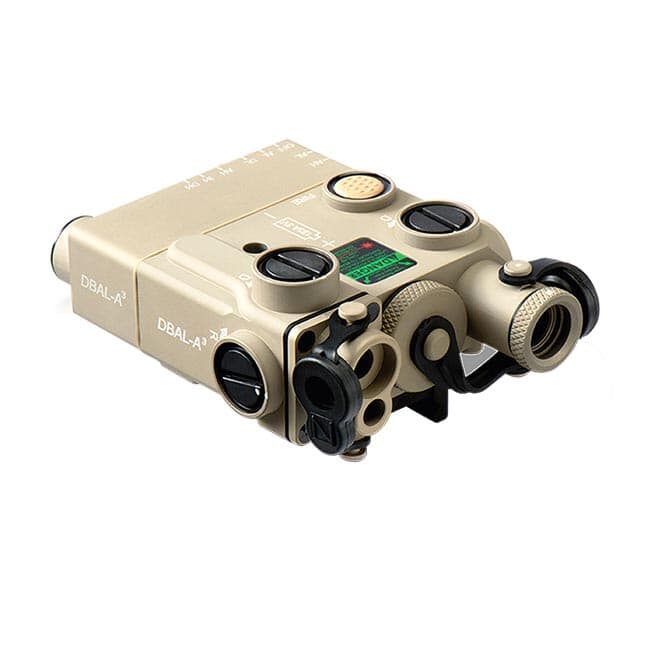

The Steiner DBAL-A3 is an eye-safe IR laser pointer, IR illuminator, and green laser pointer in one single unit. Based on standard issue equipment for US soldiers, the DBAL-A3 features defocused adjustable IR illumination technology.
Additional Specifications:
Wavelength - Visible Green Laser532 nm
Wavelength - IR Laser835 nm
Wavelength - IR Illuminator835 nm
Beam Divergence - Visible Red or Green Laser<0.8 mRad
Beam Divergence - IR Laser<0.8 mRad
Beam Divergence - IR Illuminator95-195mRAD (non LED)
Range/Visibility (Night/Day)* - Visible Green Laser750 m / 15 m
Range/Visibility (Night/Day)* - IR Laser>250m
Range/Visibility (Night/Day)* - IR Illuminator=1000 m
Temperature-10° C to +65° C
BatteryCR 123A
Battery Life (mode dependent)> 3 Hours
MaterialAircraft Aluminum
ColorBlack, Desert Sand
Weight (with battery)8 oz.
Dimensions3.5 (L) x 2.75 (W) x 1.59 (H)
WaterproofSubmersible to >5 m
MountQD HT Mount
Windage and Elevation AdjustmentYes
Activation SwitchIntegrated Push Button
Remote Cable Pressure PadYes
Warranty3 Years
Special FeaturesDual Remote Cable Ports
9009-Steiner
000381890092
9009
3.5"x2.75"x1.59" (L x W x H)
CR 123A
8 oz.
New
Laser
