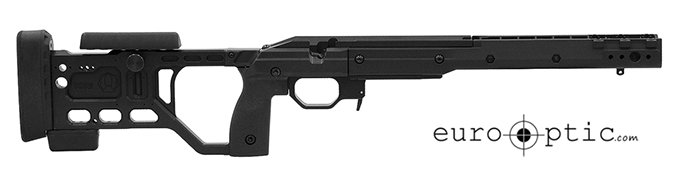

KRG 180-Alpha Savage SA Side Bolt Release Black Chassis

Kinetic Research Group’s 180-Alpha is designed specifically for Savage rifles.

Forend

• Polymer
• Mounting holes will take L2 Picatinny rails, QD sling mounts, etc.
• Access hole for action mounting screw (allows the action to be removed without the forend having to be removed)

Chassis

• V-bedding system that is CNC’d into aluminum
• Can take larger aftermarket recoil lugs
• Will accept barrel contour up to 1.2” straight cylinder

Trigger Guard/Mag catch

• Can accept Timney, Rifle Basix, and factory triggers
• Extended release button is available as an optional item

Magazines Used

• AICS 5 or 10 rounds mags (not included)

Cheekpiece/Handgrips

• 1” travel
• Quickly removed and re-installed using a clamp and thumbscrew design
• Simple feature allows the cheekpiece to return it to the exact height it had been set
• Cheekpiece can move forward or backward
• Made of polymer

Buttstock

• Aluminum
• Thumbshelf for same-side-thumb-grip
• QD sling mount on each side
• Buttpad has vertical adjustability with a hex wrench (pattern is for a Remington 700 which allows for installation of aftermarket pre-fit pads)

Length of Pull

• Length of Pull can be adjusted with 3/8” spacers for a total of 2 ¼” adjustment
• Length of Pull varies slightly between versions from 12.7” to 15”

Mounting Features

• Multiple QD mounting options on both buttstock and forend
• Harris bipod stud on forend
• Comes with MOE L2 and L3 rails

Materials/Finishes

• All aluminum parts are Type III hard anodized
• Most fasteners are stainless steel with black oxide coating
• Steel parts are salt bath nitrided or stainless steel
• Grip panels are injection molded reinforced polymer

The 180-Alpha Chassis is available for the following inlets:

• Savage SA (4.4” spacing) side or bottom bolt release

Download the 180-Alpha Chassis Installation Instructions here.
