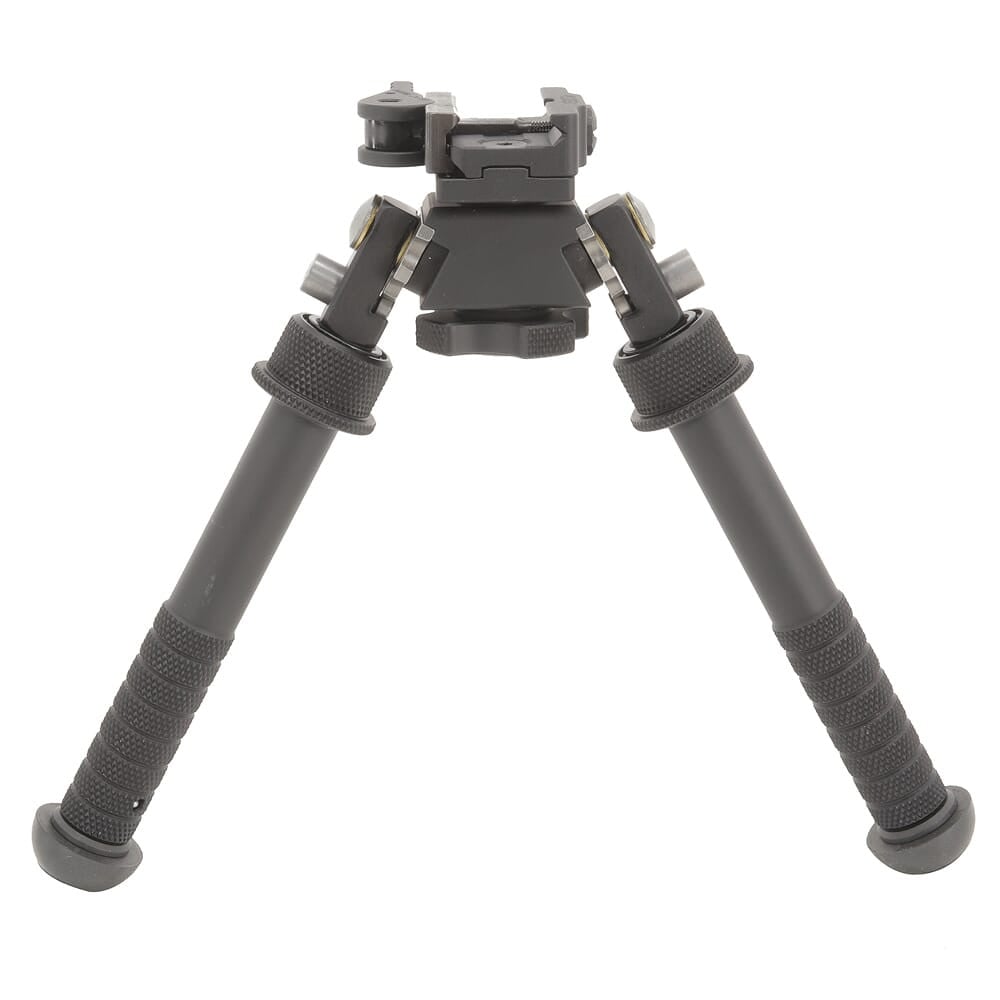

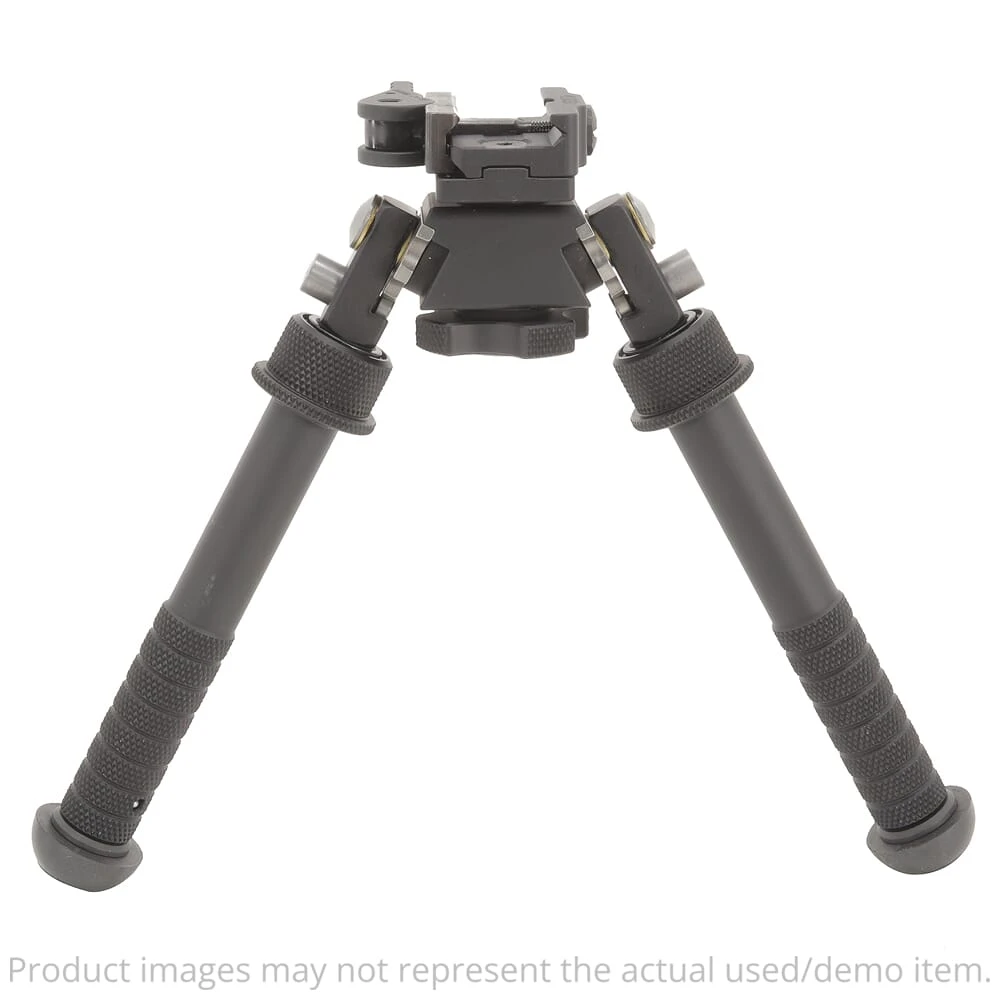

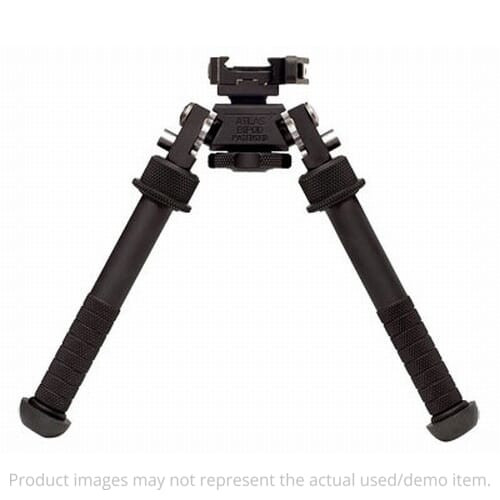

B&T Industries V8 Atlas Bipod with ADM-170-S BT10-LW17

Mounts directly to any 1913 style Picatinny rail via included ADM 170-S Lever. Available in black only. Mounts directly to any 1913 style Picatinny rail via included ADM 170-S Lever. Available in black only

Additional Technical Specifications

• Lever Mount With ARMS 17S Mount
• Construction from T6061 Aluminum, Hard Anodized black
• Stainless steel springs and fasteners
• UHMW components used for smooth tracking
• 15 degrees +/- of preloaded Pan
• 15 degrees +/- of preloaded Cant
• Preload on Pan and Cant can be tightened by means of the knurled knob
• Picitinny Rail Mount interface by either standard machine screw fastener based clamp or optional ARMS 17S lever mount.
• Non orientated leg positioning use either hand to move leg into any of the four leg positions
• Leg positions are; stowed back, 90 degrees straight down, 45 degrees forward and stowed forward.
• All 4 leg positions are solid allowing the shooter to load the bipod at the 45 and 90 degree positions.
• Non orientated leg length adjustment, Outer leg slides on the Inner leg locating on any of five positions ¾" apart and can be done by either hand.
• Optional 3" leg extensions to increase height available.
• Standard soft durable Rubber feet that are suitable for many surfaces.
• Optional interchangeable Ski and Multi Spiked style feet can be swapped in the field with the press of a ball plunger with a bullet tip.
• Optional mounting systems available for Accuracy International and Sako rifles.
• Estimated range of elevation on the BT10 is 5-9" from the surface up to the rail.
• Made in America
