In ATN’s continuing effort to supply our clients with cutting edge Night Vision Systems, ATN has introduced a new line of select units based on ATN White Phosphor Technology (WPT™).
Studies show that nighttime scenes appear remarkably more natural in black and white versus the usual green. B&W provides clearer information about contrast, shapes and shadows. ATN`s White Phosphor Technology provides users with this natural B&W Night Vision image.
The majority of the WPT performance characteristics are on par or better than the latest Gallium Arsenide based Image Intensifier Tubes. WPT specifications include typical resolution of 60 lp/mm (with some over 74 lp/mm) and Signal-to-Noise figures as high as 25.
Operators that tested ATN units, that use ATN WPT, reported a significantly better degree of detail, overall contrast, full moon similarity and range of shades. WPT provides more discriminating shades of intensity between white and black than between green and black resulting in better contrast and depth perception than when compared to green phosphor NVGs.
Description

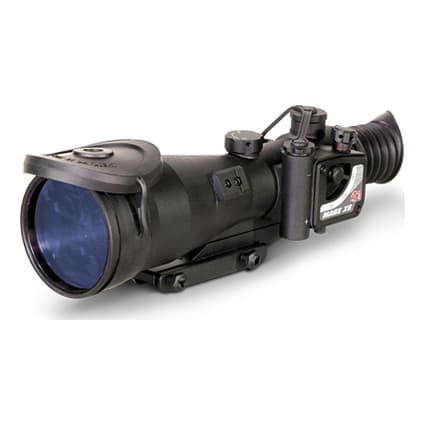

The ATNMars Night Vision Weapon Sights , the worldэs largest line of professional Night Vision Scopes, has a new flagship – the ATN MARS6x-WPT. Inspired by ATN’s quest for technical perfection and named after the Roman God of War, the ATN MARS6x-WPT Riflescope represents the absolute latest in the world of Night Vision Equipment . Similar to all ATN Aries Scopes, the ATN MARS6x-WPT features only the purest grades of heavy glass and computer-aided optical designs to create multi-element, high-speed, multicoated lenses for ultra-fast light transmission and resolution beyond current military standards. Every optical lens on the ATN MARS6x-WPT Scope is individually fitted and calibrated to achieve optimum performance.
*WPT is a registered trademark of American Technology Network, Corp. Features
- Superior quality Multi-coated all-glass optics
- Precision windage and elevation adjustments
- Tactical digital remote control
- Waterproof and submersible to 66 feet for 1 hour
- Included mount for Picatinny or 7/8" Weaver-style rail
- Unit accepts either, (1) 3V CR123A or (1) AA battery
- Nitrogen-purged for resistance to internal fogging
- Free Mil-spec hard case included
- Limited Two-Year Warranty
Specification
| Total Darkness IR System | Yes |
| ‘SMART’ Technology | No |
| IIT Generation | WPT™ |
| Resolution | 60-74 lp/mm |
| Magnification | 6x |
| Lens System | F 2.0, 160 mm |
| Proshield Lens Coating | Yes |
| FOV | 6° |
| Exit Pupil | 7 mm |
| Eye Relief | 45 mm |
| Range of Focus | 25 m to infinity |
| Diopter Adjustment | -5 to +5 |
| Controls | Direct |
| Remote Control | Yes |
| Automatic Brightness Control | Yes |
| Bright Light Cut-off | Yes |
| Infrared Illuminator | Detachable IR450 |
| IR Indicator | Yes |
| Low Battery Indicator | Yes (in FOV) |
| Power Supply | 1x1.5 V AA type battery or
1x3 V CR123A type battery |
| Battery Life | 55 hours (3 V)
40 hours (1.5 V) |
| Reticle System | Red or Amber on Green |
| Windage & Elewation Adjustment | 1/6 MOA |
| Environmental Rating | Waterproof |
| MIL-STD-810 | Yes |
| Operating Temperature | -51 to +45°C |
| Storage Temperature | -55 to +70°C |
| Dimensions | 295x90x100 mm
11.6"x3.7"x3.9" |
| Weight | 1.55 kg / 3.4 lbs |
| Warranty | 2 years |
