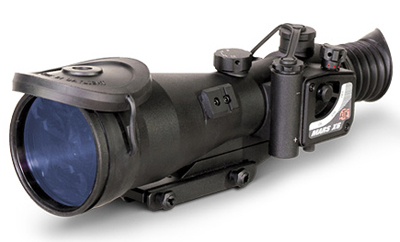

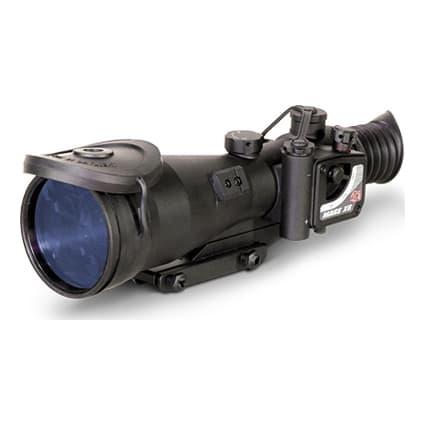

ATN MARS6x-WPT Night Vision Sight NVWSMRS6WP

In ATN’s continuing effort to supply our clients with cutting edge Night Vision Systems, ATN has introduced a new line of select units based on ATN White Phosphor Technology (WPT™).

Studies show that nighttime scenes appear remarkably more natural in black and white versus the usual green. B&W provides clearer information about contrast, shapes and shadows. ATN`s White Phosphor Technology provides users with this natural B&W Night Vision image.

The majority of the WPT performance characteristics are on par or better than the latest Gallium Arsenide based Image Intensifier Tubes. WPT specifications include typical resolution of 60 lp/mm (with some over 74 lp/mm) and Signal-to-Noise figures as high as 25.

Operators that tested ATN units, that use ATN WPT, reported a significantly better degree of detail, overall contrast, full moon similarity and range of shades. WPT provides more discriminating shades of intensity between white and black than between green and black resulting in better contrast and depth perception than when compared to green phosphor NVGs.

Description

The ATNMars Night Vision Weapon Sights , the worldэs largest line of professional Night Vision Scopes, has a new flagship – the ATN MARS6x-WPT. Inspired by ATN’s quest for technical perfection and named after the Roman God of War, the ATN MARS6x-WPT Riflescope represents the absolute latest in the world of Night Vision Equipment . Similar to all ATN Aries Scopes, the ATN MARS6x-WPT features only the purest grades of heavy glass and computer-aided optical designs to create multi-element, high-speed, multicoated lenses for ultra-fast light transmission and resolution beyond current military standards. Every optical lens on the ATN MARS6x-WPT Scope is individually fitted and calibrated to achieve optimum performance.

*WPT is a registered trademark of American Technology Network, Corp.

Features

• Superior quality Multi-coated all-glass optics
• Precision windage and elevation adjustments
• Tactical digital remote control
• Waterproof and submersible to 66 feet for 1 hour
• Included mount for Picatinny or 7/8" Weaver-style rail
• Unit accepts either, (1) 3V CR123A or (1) AA battery
• Nitrogen-purged for resistance to internal fogging
• Free Mil-spec hard case included
• Limited Two-Year Warranty

Specification

Total Darkness IR System	Yes
‘SMART’ Technology	No
IIT Generation	WPT™
Resolution	60-74 lp/mm
Magnification	6x
Lens System	F 2.0, 160 mm
Proshield Lens Coating	Yes
FOV	6°
Exit Pupil	7 mm
Eye Relief	45 mm
Range of Focus	25 m to infinity
Diopter Adjustment	-5 to +5
Controls	Direct
Remote Control	Yes
Automatic Brightness Control	Yes
Bright Light Cut-off	Yes
Infrared Illuminator	Detachable IR450
IR Indicator	Yes
Low Battery Indicator	Yes (in FOV)
Power Supply	1x1.5 V AA type battery or 1x3 V CR123A type battery
Battery Life	55 hours (3 V) 40 hours (1.5 V)
Reticle System	Red or Amber on Green
Windage & Elewation Adjustment	1/6 MOA
Environmental Rating	Waterproof
MIL-STD-810	Yes
Operating Temperature	-51 to +45°C
Storage Temperature	-55 to +70°C
Dimensions	295x90x100 mm 11.6"x3.7"x3.9"
Weight	1.55 kg / 3.4 lbs
Warranty	2 years
