ATN NVM14-3 Weapon Sight

3rd Gen. Standard IIT Features:

• Photo Cathode type: Gallium Arsenide
• Resolution 64 lp/mm
• Signal-to-Noise Ratio 22 Typical
• 10,000-hour tube life

3rd Gen. Image Intensifier Tubes

Our standard 3rd Generation Image Intensifier Tubes are of the highest quality. They have a micro channel plate, GaAs photocathode and a completely self-contained integral high-voltage power supply. These 3rd Generation tubes provide a combined increase in resolution, Signal-to-Noise and photosensitivity over tubes with a Multi-Alkaline photocathode. Generation 3 is the standard for the USA military.

Description

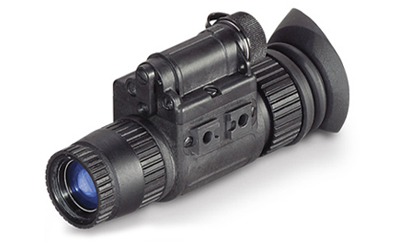

The ATN NVM14-3 is a hand-held, head-mounted, helmet-mounted, or weapon-mounted Night Vision System that enables walking, driving, weapon firing, short-range surveillance, map reading, vehicle maintenance and administering first aid in both moonlight and starlight. Each unit allows for vertical adjustment (by using head straps), fore-and-aft adjustment, objective lens focus and eyepiece focus. The device is also equipped with an Infrared light-emitting source.

The ATN NVM14-3 Night Vision Monocular utilizes the principle of intensification of the residual light which is reflected from the surrounding objects. The optical system of the Night Vision Monocular consists of an objective lens, an Image Intensifier Tube and an eyepiece.

Even under unsteady brightness conditions, Automatic Brightness Adjustment System always keeps the IIT brightness level constant. The Automatic Protective System controls the existing illumination level through the photo receiver. If the illumination level surpasses 100-300 lx for the following 10 seconds, the Monocular will shut off automatically.

The eyepiece incorporates several LED indicators:

• Red - serves as an IR Illuminator Indicator and an Battery Low Indicator at a time.
• Green - serves as an Excessive Brightness Indicator. If the bright light remains unchanged for over 10 seconds after the indicator turns on, the Monocular will automatically shut-off.

More about ATN NVM-14 Night Vision Monocular.

ATN NVM14-3 Spec Sheet

ATN NVM14-3 User Guide

Features

• Compact and rugged design
• Waterproof
• Head or helmet mountable for hands-free usage
• Weapon mountable
• Auto Brightness Control
• Bright Light Cut-off
• Total Darkness Technology with built-in infrared illuminator and flood lens
• Compatible with most IR lasers
• Adaptable for use with cameras
• Ergonomic, simple, easy-to-operate controls
• Utilizes either a 123А Lithium battery or an AA Alkaline
• Battery Adapter included
• Optionally available patented Life Tracker System for measuring hours of operation
• Limited two-year warranty

Specification
