ATN PS15-3 Night Vision Goggle Review

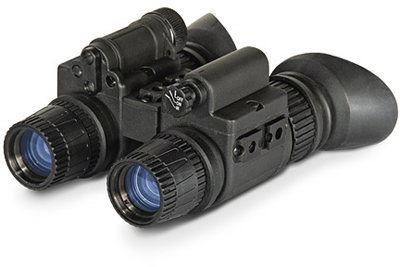

The ATN PS15 is a compact, lightweight dual night vision goggle system. It utilizes two high-performance image intensifier tubes to provide extremely clear and crisp images under the darkest conditions. This dual-tube design provides increased depth perception and outstanding clarity. A built-in IR lets the user easily read a map and function in a total darkness environment. Available in a wide array of Image Intensifier Tube configurations, the ATN PS15 Night Vision Goggles is designed to handle every budget and mission requirement. The ATN PS15 Night Vision System is a high-performance choice!

ATN PS15-3 Spec Sheet

ATN PS15-3 User Guide

ATN PS15-3 Night Vision Goggle Features

• Dual goggle/binocular
• Hands free use
• Comfortable flip-up head gear
• Lightweight and compact
• Optional 3x focal lenses
• Waterproof
• Limited Two-Year Warranty

ATN PS15-3 Night Vision Goggle Specifications

• ‘SMART’ Technology: No
• Multi-Purpose System: No
• Photocathode Type: GaAs
• Resolution: 64 lp/mm
• Signal to Noise Ratio: 22 Typical
• Figure of Merit: 1600 Typical
• MTTF - Mean Time Before Failure: 10,000 hours
• Magnification: 1x
• Lens System: F1.2, 27 mm
• Proshield Lens Coating: Yes
• Range of Focus: 0.25 m to infinity
• Diopter Adjustment: -6 to +2
• Controls: Direct
• Automatic Brightness Control: Yes
• Bright Light Cut-off: Yes
• Automatic Shut-off System: Yes
• Infrared Illuminator: Yes - Built in Flood
• IR Indicator: Yes (in FOV)
• Low Battery Indicator: Yes (in FOV)
• Power Supply: 1x1.5 V AA type battery or 1x3 V CR123A type battery
• Battery Life: 40 hrs
• Environmental Rating: Waterproof
• MIL-STD-810: Complies
• Operating Temperature: -40 to +50°C
• Storage Temperature: -50 to +70°C
• Warranty: 2 years
