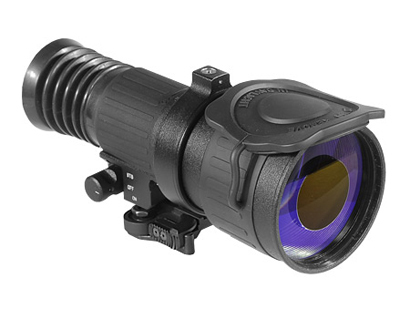

ATN PS22-3P - Day Night Weapon Sight NVDNPS223P

The ATN PS22-3P System is an attachment for a Daytime Riflescopes with 1x Magnification that converts scope into a high-quality, very accurate Night Vision Weapon Sight.

The ATN PS22-3P mounts in front of a Daytime Scope. Re-zeroing of the scope is not required. The ATN PS22-3P comes standard with 7/8" weaver mount. There is also Adapter for ARMS quick release mount and optional Ring Adapters allows to mount unit onto the objective of the Day Scope (25...62mm diameter). The IR Illuminator can be mounted onto the optional Picatinny Rail.

The ATN PS22-3P utilizes a 2nd+ Gen. or 3rd Gen. Image Intensifier Tube. This ingenious setup allows the shooter to go from day to night in less than 30 seconds without tools, without changes in eye relief and remain zeroed all around the clock.

The ATN PS22-3P is a complex optical-electronic system. The Night Vision Device contains an Image Intensifier Tube assembly with an integrated high-voltage power source and the three volt battery housing.

ATN PS22-3P* Spec Sheet

ATN PS22-3P* User Guide

ATN PS22-3P Features:

• Easily changes daytime scope to Night Vision
• Mounts in front of the daytime scope, no re-zeroing required
• Multi-coated all-glass optics
• Fast catadioptic front lens system
• Large 21 mm output window
• Lightweight and rugged
• Comes with Quick Release Mount
• Optional 7/8" weaver mount
• Optional Scope Mounting System attaches the PS22 unit to the
• objective of the day scope (25...62 mm diameter)
• Automatic brightness control
• Resistance to severe conditions
• Limited Two-Year Warranty


ATN PS22-3P Specs:

• Total Darkness IR System = Yes
• "SMART" Technology = No
• IIT Generation = 3
• Resolution = 64-72 lp/mm
• Magnification = 1x
• Lens System = F1.44, 80 mm
• Proshield Lens Coating = Yes
• FOV = 13°
• Exit Pupil = 21 mm
• Range of Focus = 10 m to infinity
• Diopter Adjustment = No
• Controls = Direct
• Remote Control = Yes
• Automatic Brightness Control = Yes
• Bright Light Cut-off = Yes
• Infrared Illuminator = Detachable IR450
• IR Indicator = Yes
• Low Battery Indicator = No
• Power Supply = 1 x 3 V CR123A type battery
• Battery Life = 50 hrs
• Reticle System = No
• Windage & Elewation Adjustment = No
• Environmental Rating = Waterproof
• MIL-STD-810 = Yes
• Operating Temperature = -40 to +50°C
• Storage Temperature = -50 to +70°C
• Dimensions = 150x80x72 mm 5.9"x3.2"x2.8"
• Weight = 0.64 kg / 1.4 lbs
• Warranty = 2 years
