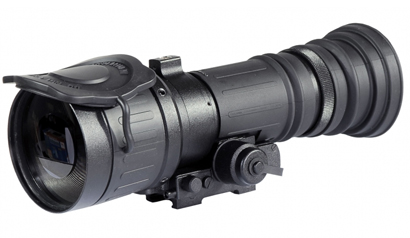

ATN PS40-2I - Day Night Weapon Sight NVDNPS402I

Representing the latest advancement in Night Vision Optics, the ATN PS40-2I gives your daytime scope Night Vision capability in a matter of seconds.

The ATN PS40-2I mounts in front of a daytime scope to enable nighttime operation. No shift of impact, no need to rezero nor change of eye relief occurs. The ATN PS40-2I uses the latest in image intensifier tube technology for outstanding resolution and performance.

Precision optical alignment is essential for a front sight system to work properly. This is why each ATN PS40-2I is individually tested and aligned on an optical scale by our engineers to provide perfect alignment.
The ATN PS40-2I is one of the most compact and lightweight NV systems in its class, at only 840 grams.

ATN PS40-2I Features:

ATN PS40-2I Spec Sheet

ATN PS40-2I User Guide

• Easily changes daytime scope to Night Vision
• Mounts in front of daytime scope, no re-zeroing required
• Multi-coated all-glass optics
• Fast catadioptic front lens system
• Large 40 mm eyepiece/output window
• Lightweight and rugged
• Comes with Quick Release Mount
• Optional 7/8" weaver mount
• Optional Scope Mounting System attaches the PS40 unit to the objective of the day scope (47-50; 56-58.7 mm diameter)
• Automatic brightness control
• Limited Two-Year Warranty



ATN PS40-2I Specs:

• Total Darkness IR System Yes
• "SMART" Technology No
• IIT Generation 2+
• Photocathode type Multi-Alkali
• Resolution 40-45 lp/mm
• Figure of merit <900
• Magnification 1x
• Lens System F1:1.44, 80mm
• Proshield Lens Coating Yes
• FOV 12°
• Exit Pupil 40 mm
• Range of Focus 10 m to infinity
• Diopter Adjustment No
• Automatic Brightness Control Yes
• Bright Light Cut-off Yes
• Infrared Illuminator Detachable IR450 (optional)
• IR Indicator Yes
• Low Battery Indicator Yes
• Power Supply 1 x 1.5V AA type battery or 1 x 3V CR123A type battery
• Battery Life 60 hours ( 3 V ) 30 hours (1. 5 V )
• Reticle System No
• Windage & Elewation Adjustment No
• Environmental Rating Waterproof
• MIL-STD-810 Yes
• Operating Temperature -20 to +50°C
• Storage Temperature -50 to +50°C
• Dimensions 177 x 85 x 83 mm 7.0" x 3.4" x 3.3"
• Weight 0.84 kg / 1.85 lbs
• Warranty 2 years
