USED/MISC
This item may be regulated for export by the U.S. Department of State or the US Department of Commerce. Please see our Export Policy

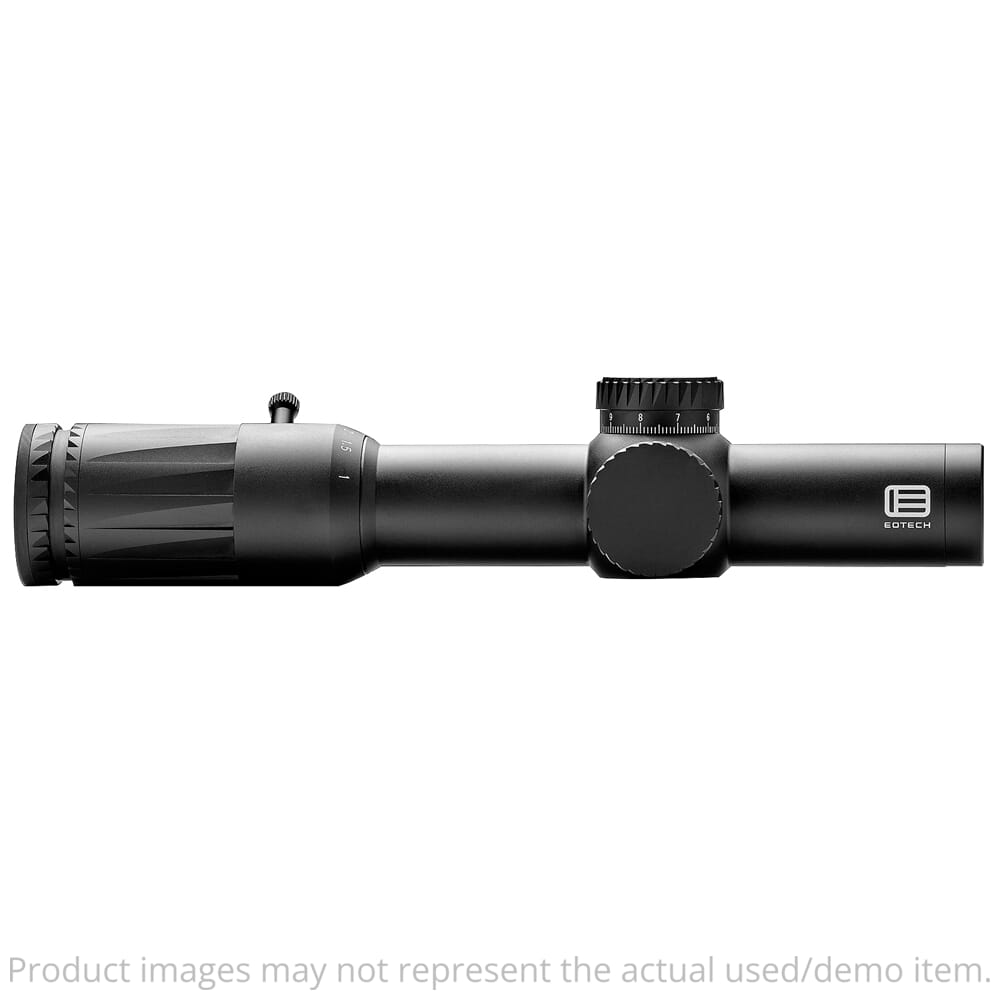

EOTech’s Vudu 1-10x28mm Riflescope combines durability and precision into one high-performance optic! It features a one piece, aircraft grade aluminum tube for superior strength and shock resistance. The lenses are constructed from XC High-Density glass with multi-coatings for exceptional light transmission and outstanding edge-to-edge clarity. The Vudu’s elevation turret is exposed for making adjustments in the field, and uses a unique push-pull locking mechanism to prevent any accidental changes. When making adjustments, the turrets produce an audible and tactile “click” to assist the shooter in making the proper point-of-impact corrections. Other features of the Vudu 1-10x28mm is the advanced LE-5 reticle. The LE-5 is composed of a precise illuminated crosshair in the middle of an illuminated circle, which sits atop a “Christmas tree” of holdover points as well as horizontal and vertical stadia lines with multiple hash marks. This entire configuration is in the center of EOTech’s exclusive Speed Ring. Thanks to the LE-5’s first focal plane position, the Speed Ring can be used to rapidly acquire and engage targets at shorter ranges and lower magnifications, essentially allowing the shooter to use the Vudu 1-10x28mm like a red dot sight. When the magnification is dialed up, the Speed Ring disappears from view and the LE-5 reticle is brought into full focus. This significantly improves accuracy at longer ranges, and lets the shooter take full advantage of the reticle’s holdover points and hash marks for bullet drop and wind drift compensation.
UA4939
VDU1-10FFLE5
3.27 inches - 3.90 inches (low power)
3.35 inches - 3.62 inches (high power)
116.6 feet @ 100 yards (low power)
11.7 feet @ 100 yards (high power)
Yes - 10 levels
Vudu 1-10X28 Rifle Scope
Operator Manual
Reticle Manual
Throw Lever
Lens Cleaning Cloth
1x - 10x
First focal plane
Exposed
Push/Pull locking mechanism
15 MRAD graduation per rotation
29 MRAD total travel
Black
10.63 inches
28mm
LE-5 reticle
34mm
0.1 MRAD
21.3 ounces
Capped
15 MRAD graduation per rotation
23 MRAD total travel
Used
Riflescopes
Counter Clockwise (CCW)
