Description

Nuts Securing Method

20 MOA Inclination

30mm Ring Diameter

0.394" / 10 mm Height to Bottom of Ring

0.906" / 23 mm Height to Centerline

3.000" / 75 mm Length Inside of Rings

4.921" / 125 mm Length to Outside of Rings

4.921" / 125 mm Overall Mount Length

3.937" / 100 mm Length Between Nuts/Levers

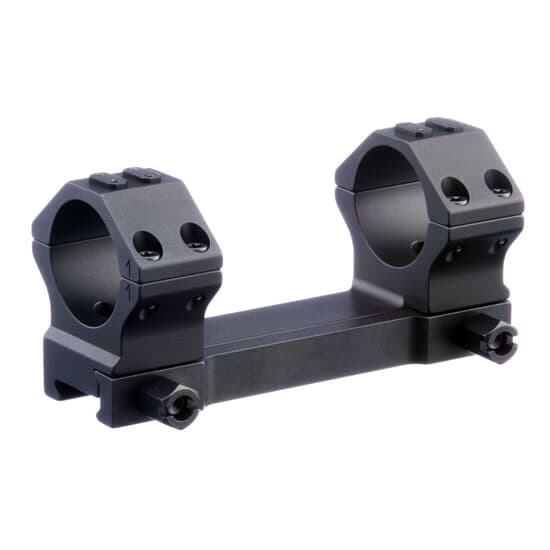

With several new models released by ERATAC in 2017, Short-Version One-Piece Mounts are suitable for use with any bolt action or AR10-type rifle.

Fully-machined from solid, high-grade aluminum
All parts are Mil-spec, Type-III anodized (black), rendering them corrosion-proof
Available for 30-, 34-, and 36-mm scope tubes
MPN series T10xx secure with safety levers
MPN series T20xx secure with nuts
All versions available in 0- and 20-MOA inclination.
