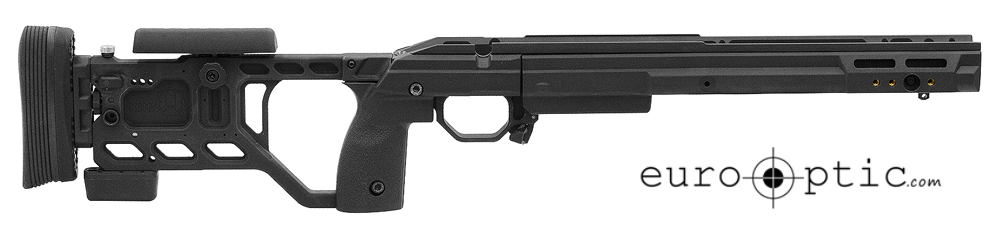

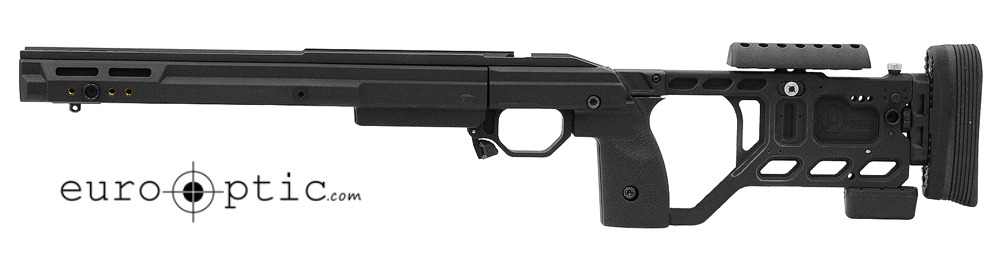

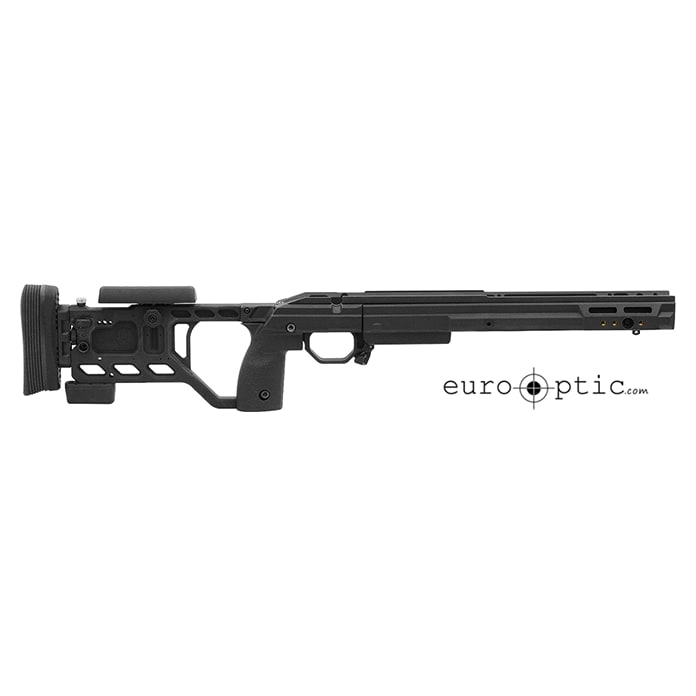

Kinetic Research Group’s Whiskey-3 Chassis has great features that allow the shooter to set the chassis up to their particular shooting style.
Forend
- Polymer
- Threaded mounting holes at various positions
- Access hole for action mounting screw (allows for the action to be removed without removing the forend)
- Side mounting options for rail
- Flush mount QD sling plate
- External QD cup on both sides of forend
Chassis
- Designed for 5- or 10-round AICS magazines (Rem 700 LA uses CIP-length AICS magazines, Badger M2008 version uses AI AW 10-round double stack magazines)
- Tikka chassis have V-Bedding; Rem 700 chassis have Radius system. Both are CNC’d into aluminum backbone.
- Hardened stainless steel recoil lug
- Rem 700 chassis can accommodate larger aftermarket recoil lugs
- Will accept any barrel contour up to 1.25” straight cylinder (no larger than .9” at the muzzle recommended)
Trigger Guard/Mag catch
- Made of reinforced polymer (Tikka T3 chassis has aluminum)
- Will accept stock Tikka T3 triggers or Barnard triggers
- Rem 700 chassis will accept the new x-mark triggers and most aftermarket triggers
- Mag catch is low profile to reduce snags but still provides excellent ergonomics and control
Magazines Used
- Remington 700 short action and Tikka T3 use AICS either 5 or 10 round .308 mags
- Remington 700 long action and Badger M2008/13 long action use .338 CIP length magazines
- Magazines are not included
Folding Mechanism
- Main latch uses lever style lockup with tapered design which allows lockup through wear of the system
- Secondary latch locks the buttstock into the folded position
- Latch components are made of hardened stainless steel and nitride high strength chromoly steel.
Cheekpiece
- Infinitely adjustable within cheekpiece range (1” travel)
- Quickly removed and re-installed using a clamp and thumbscrew design
- Simple feature allows the cheekpiece to return it to the exact height it had been set
- Made of polymer
Buttstock
- Length of pull is between 13.3” to 15.3” depending on version
- Length of pull is adjustable in 1/4” increments for a total of 2” adjustment
- CNC milled from billet aluminum
- Buttpad moves vertically to set positions within range
- Buttpad has tool-less adjustments
- Buttpad can tilt 15° to each side
Mounting features
- Buttstock has QD sling mount on each side
- Harris bipod stud is included on the forend
- All stocks come with one MOE L2 and MOE L3 rail
Materials
- Most Aluminum parts are Type III hard anodized
- Fasteners are stainless steel with black oxide coating
- Steel parts are salt bath nitrided or stainless steel
- Grip panels are injection molded reinforced polymer
The Whiskey-3 Chassis is available for the following inlets:
- Tikka T3 (non-magnum length calibers)
- Remington 700 (short and long action)
- Sako TRG-22 and TRG-42
- Sako M995
Download the Whiskey-3 Chassis Installation Instructions here.
