Leica CRF 1600B Rangemaster Laser Rangefinder 40534 Like New Demo

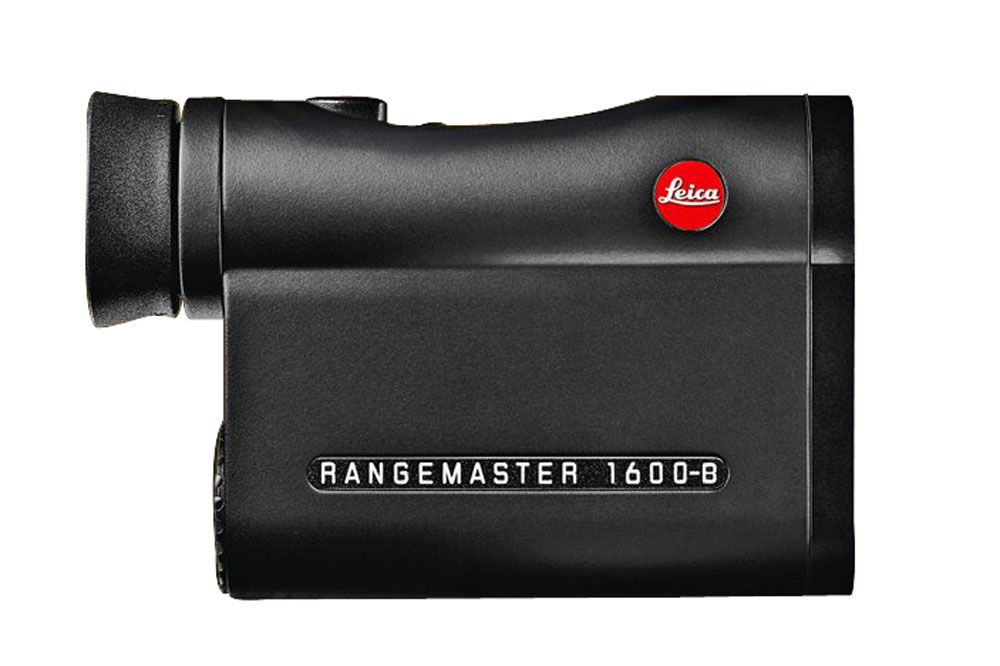

Rangemaster CRF 1600-B

In addition to the determined distance for the calculation of the ballistic curve, the newly developed ABC® ballistic programme integrates data for the angle of declination, temperature, barometric pressure and ammunition type. The CRF 1600-B enables the output of values for a range of different ballistic needs: standard reticle › holdover / ASV › clicks / ballistic reticle › level terrain distance.
In this way - and only in this way - is it possible to precisely determine the required point-of-aim corrections.

_ Superior optics with outstanding image brightness for finely detailed observation
_ Newly developed ABC® intelligent ballistics programme
_ For all equipment and ballistics applications
_ Simple and intuitive handling
_ Range up to 1500 m (1600 yds)

Function 1

When using a classic reticle, the point-of-impact correction is applied by means of an elevation adjustment. The CRF 1600-B displays the distance and the required elevation adjustment in either centimetres or inches. The value displayed relates to the target and shows the required deviation from point blank.

Function 2

If the point-of-impact correction is applied by click adjustments with rapid reticle adjustment (ASV), the number of clicks required to adjust the reticle can be displayed. Display formats: 1 MOA, 1/3 MOA, 1/4 MOA, 10 mm/100 m, 5 mm/100 m.

Function 3

When using a ballistic reticle, level terrain distance information is vital for a precise shot. As in all other functions, this information is provided automatically taking into account the angle of declination, temperature and barometric pressure.
