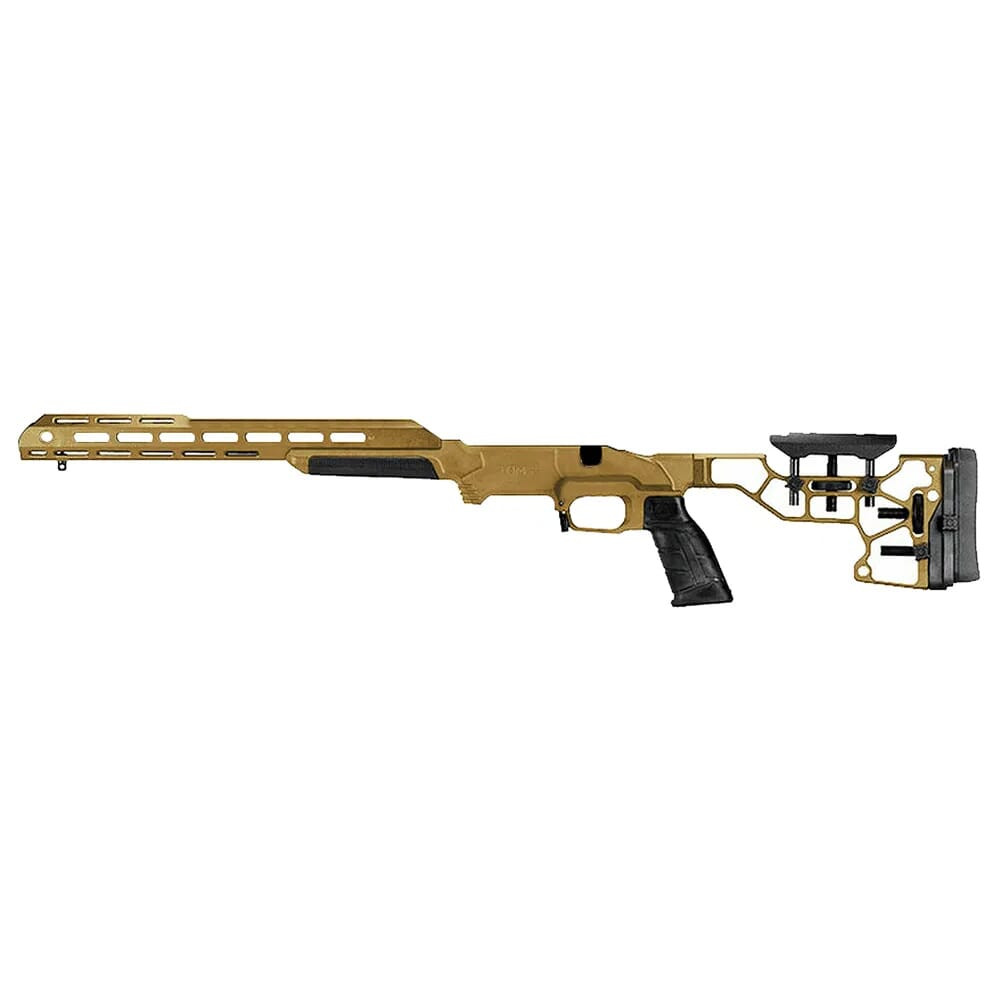

MDT’s ESS Chassis System delivers superior versatility, user friendly features, and a wide array of customization options! It utilizes MDT’s proven V-block bedding system to provide a solid, reliable base for the rifle’s action, and a semi-flush ambidextrous paddle can be activated with a weak or strong hand. The recoil lug mortise is designed to accommodate most aftermarket recoil lugs, and the trigger area will accept many aftermarket triggers. The ESS Chassis comes equipped with a fully adjustable stock, allowing the user to finely tune it to their preferred length of pull and cheek height. It ships with an MDT pistol grip that’s been strategically placed in an optimum position relative to the trigger, but this grip can be interchanged with AR-style grips as well. A polymer forend grip at the point of balance adds additional comfort, and for shooters who prefer an open grip, the ESS is equipped with thumb shelves on both sides of the chassis. The forend grip area is also wider with an octagonal profile, and a serrated barricade stop gives the user flexible options when shooting over bags.
Features:
- Ambidextrous, easy reach magazine latch – can be operated with trigger finger or left hand
- The extra large magazine well for easy mag insertion/removal
- Barricade stop in front of the magazine to prevent putting pressure on the magazine
- Angled front profile with hand grip for minute vertical adjustments and comfort/protection from the elements
- Thumb rests on both sides of the chassis
- Wide front profile for extra comfort/stability when resting on flat surfaces
- Compatible with AICS magazines
- Includes the MDT Pistol Grip, but is compatible with all non-beavertail AR pattern pistol grips. Beavertail grips will fit with minor trimming
- CNC machined from Aircraft grade Aluminum and finished with H-series Cerakote. Cheek-piece, fore-grip, and butt-pad constructed of composites
ESS Compatible Accessory List
Stocks Compatible with ESS Base Chassis Models + Lengths of Pull
- SRS-X: 13.5” – 14.5” Part Number: 102611 (multiple colors)
- SRS-X Elite Standard: 13.5” – 14.5” 103779 (multiple colors)
- SRS-X Elite Short: 12.5” – 13.5” Part Number: 103440 (multiple colors)
- SRS-XF Folding: 13.75” – 14.75” Part Number: 103452 (multiple colors)
- SCS-Lite (Carbine, needs adapter): 14.25” – 15.25” Part Number: 104583 (multiple colors)
- SCS (Carbine, needs adapter): 13” – 14” Part Number: 102856 (multiple colors)
- CCS (Carbine, needs adapter): 14.25” – 15.25” Part Number: 104717 (multiple colors)
Adapters
- XTN to Carbine Stock Adapter: Part Number – 102690 (allows carbine stocks to be used)
Grips
- The ESS Base Chassis is compatible with all MDT grips
Weights
- ACC Interior Weights: Part Number – 104059
- M-LOK Exterior Forend Weights: Part Number – 103965
Other Accessories
- Baker Wings: Part Number – 106385
- Foregrip Adapter: Part Number – 103486
- Chassis Forend
- High Scope Base
