Meopta

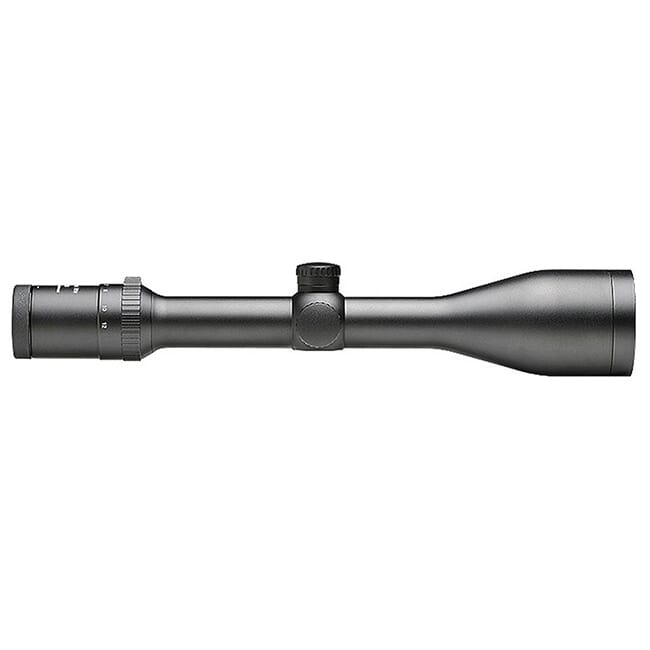

Meopta MeoStar R1 3-12X56 4D DichroTech 30mm FFP Riflescope 575200
Description
The 3-12x56 Meostar R1 has a 30mm maintube diameter, with its reticle placed in the rear focal plane (in front of the eyepiece) to maintain its virtual size throughout the entire magnification range. Targeting smaller game at longer distances is quite easy with the reticle location in the rear focal plane.
The 3-12x56 Meostar R1 is an extremely large and powerful optic for use in any ambient light conditions. It offers the magnification options useful for the open spaces of North American hunters, combined with an enormous oversized 56mm diameter objective lens to gather the light needed to produce stellar illumination upon the subject even at the maximum 12x power. The Meostar’s unique internal mechanism is designed for the highest mechanical resistance for consistent accuracy shot after shot.
Key Features of the Meostar R1
The Meostar Finish AdvantageThe supreme 3-12x56 Meostar R1 riflescope has an aircraft aluminum alloy construction and a bead blasted exterior, as well as an ‘Elox’ andonizing process, which ensure an extremely durable and non-reflective black matte outer finish.
Meostar’s Magnificent MulticoatingsMeopta has dramatically improved their light transmission per glass surface with a proprietary IMB-5501 anti reflective coatings & ION assisted applications process. Light transmission is staggeringly high at 99.8% per surface!
- 30mm internal diameter tube
- ±3 Dioptric correction
- Supreme lowlight performance, well into dusk, thanks to 56mm diameter objective lens
- Soft rubber eyecup prevents injury from recoil power
Specifications
SKU
575200-Meopta
UPC
836538004681
MPN
575200
Exit Pupil
14.8 - 4.6 mm
Eye Relief
3.3" - 3.0"
Field of View
33 - 11ft at 100yds
Illuminated Reticle
No
Light Transmission
Daylight: 92%
Twilight: 90%
Magnification Range
3-12 x
Parallax Adjustment
No
Reticle Position
First Focal Plane
Elevation Turret Details
Adjustment Range: 125cm / 100m or 45in / 100yds
Scope Finish
Black
Scope Length
14.3"
Scope Objective Diameter
56mm
Reticle Details
4D DichroTech
Scope Tube Size / Mount
30mm
Turret Adjustment (Click Value)
1/4 MOA
Scope Weight
21.9 oz
Windage Turret Details
Adjustment Range: 125cm / 100m or 45in / 100yds
Twilight Factor
13 - 25.9
Item Condition
New
Product Type
Riflescopes
Scope Turret Rotation
Counter Clockwise (CCW)
