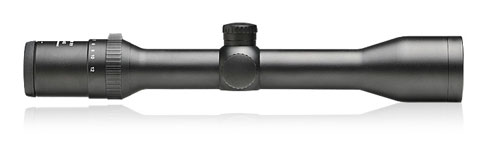

Meopta Meostar R1 4-12x40 #4 Riflescope 480590
This item may be regulated for export by the U.S. Department of State or the US Department of Commerce. Please see our Export Policy
Description
The 4-12x40 Meostar R1 Riflescope offers a versatile magnification range with and excellent light transmission abilities. The 40mm objective performs well in twilight conditions, even when you zoom up to maximum power. The profile of this scope is somewhat conservative, with its moderate front bell, and 30mm main tube.
It’s conservative appearance belies its true nature somewhat; this scope delivers outstanding optical performance, thanks to Meopta’s optical genius and proprietary multicoating technology. This state-of-the-art multicoating process is layered upon each air-to-glass surface to ensure edge-to-edge sharpness, and a clear line of sight regardless of the sun’s angle of incidence. Further refinement of the sight picture comes to your eye via dry-nitrogen purging of the robust 30mm main-tube, which eliminates the negative effects of dynamic climates.
Mechanically, this Meostar performs with world-class precision. The internal adjustments are machined with extremely close tolerances, and set with rectifying tension that’s engineered to keep your point of zero accurate, and repeatable.
To use a riflescope with your firearm, you’ll need a mounting base and mounting rings in addition to the scope itself. Bases attach to your firearm and rings attach to your scope. Proper spacing of the rings, as well as the ring height should be considered to ensure a proper line of sight can be established. This will maximize the value of your investment, and enhance your shooting experience. It should be noted that in many mounting applications, a professional gunsmith’s skills will be needed for proper installation.
Key Features
- • Meostar’s Multicoatings
- Extremely high (99.8%) levels of light transmission per glass surface with a proprietary IMB-5501 anti reflective coatings & ION assisted application process.
- • The Meostar Finish
- Aircraft aluminum alloy construction with a bead blasted exterior & ‘Elox’ anodizing process ensures an extremely durable and non-reflective finish.
- • #4 Reticle in the Second Focal Plane
- Three long posts at 3, 6, & 9 o’clock direct your vision directly to the center. A single vertical stadia and fine cross hairs intersect to indicate your exact point of aim. The central opening, or ‘gate’, is intentionally narrow for efficient target acquisition against dark & distracting backgrounds.
Second focal plane positioning of the reticle maintains its size throughout the magnification range (non-magnifying)
Specifications
SKU
MRM041240-B04
UPC
836538000980
MPN
480590
Eye Relief
3.5"
Field of View
29.7' @ 100yds
Illuminated Reticle
No
Magnification Range
4 - 12
Reticle Position
Second Focal Plane
Scope Finish
matte black
Scope Length
12.9"
Scope Objective Diameter
40 mm
Scope Tube Size / Mount
30 mm
Turret Adjustment (Click Value)
1/4 MOA
Scope Weight
18.5 oz
Item Condition
New
Product Type
Riflescopes
