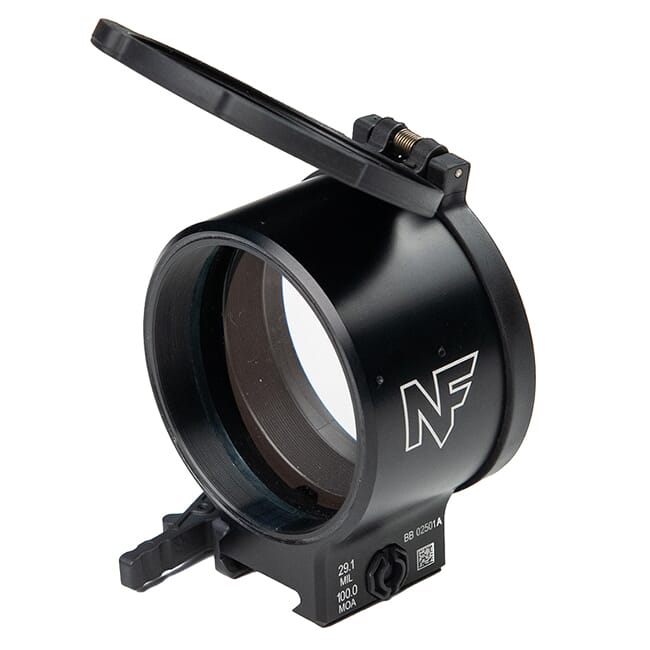

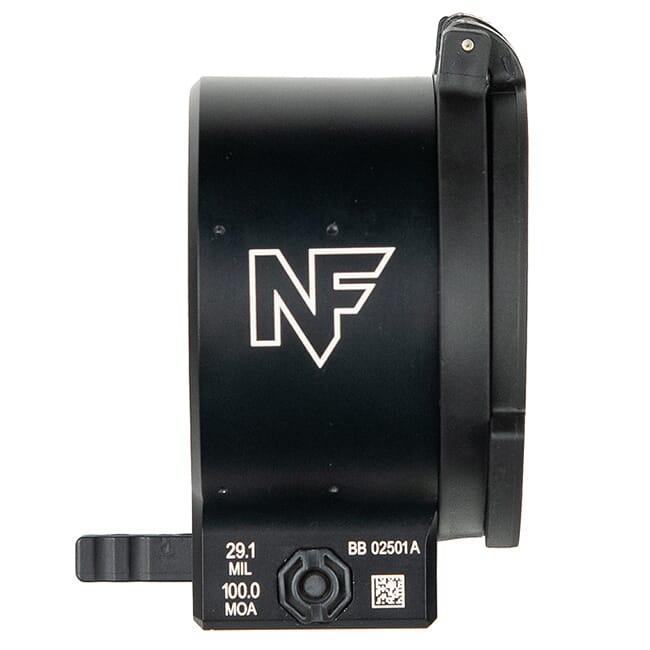

Nightforce Wedge Prism Assembly - 100 MOA/29 MRAD Additional Elevation A541

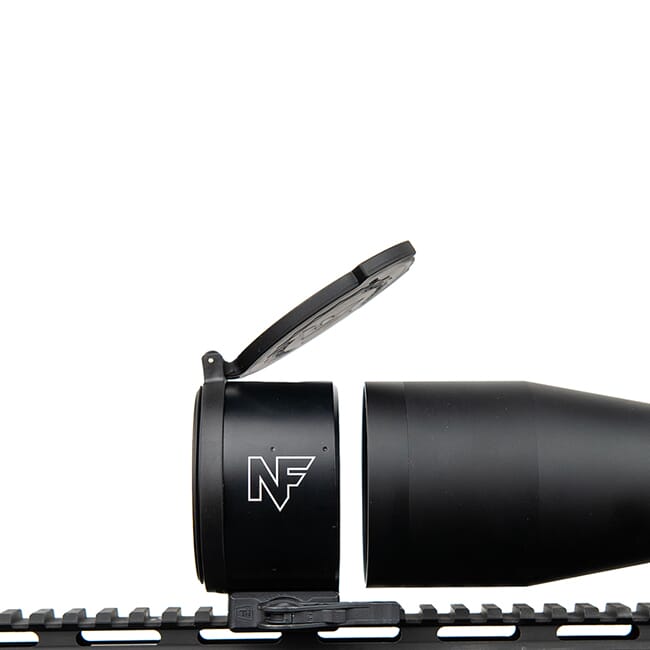

When shooting at extreme ranges, many shooters find their riflescope lacks the necessary elevation travel. The Nightforce Wedge Prism is offered in two variants, 50 MOA or 100 MOA, that install forward of the riflescope to increase the effective elevation travel. The Wedge Prism optically shifts the incoming image to the riflescope by a precise elevation value, which directly adds to the available elevation travel within the riflescope.

Key Features

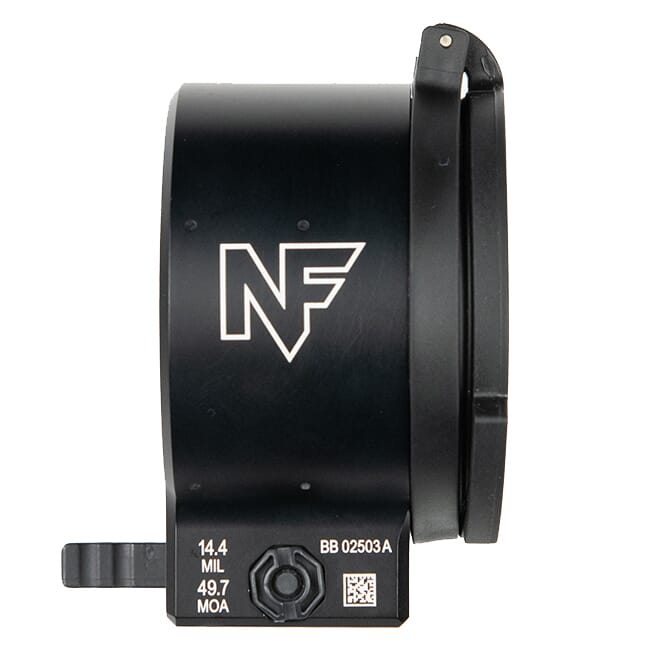

• 50 MOA/14.5 MRAD or 100 MOA/29.1 MRAD elevation shift variants available for extreme long-range use
• Quick Detach MIL-STD 1913 attachment ensures consistent elevation shift when installed in the field
• Compatible with all brands of riflescopes
• Exact elevation shift measured for each unit and engraved for reference in the field

Specifications

• Optical Shift: 29.1 MRAD*
• Length (excluding cover): 1.8"
• Width: 2.7"
• Height: 3.3"
• Glass Centerline: 1.5"
• Weight: 9.2 oz
• Mounting System: MIL-STD 1913 (1.5" / 3 slots)



*Nominal value. The actual shift varies slightly and is measured and engraved on each unit.
