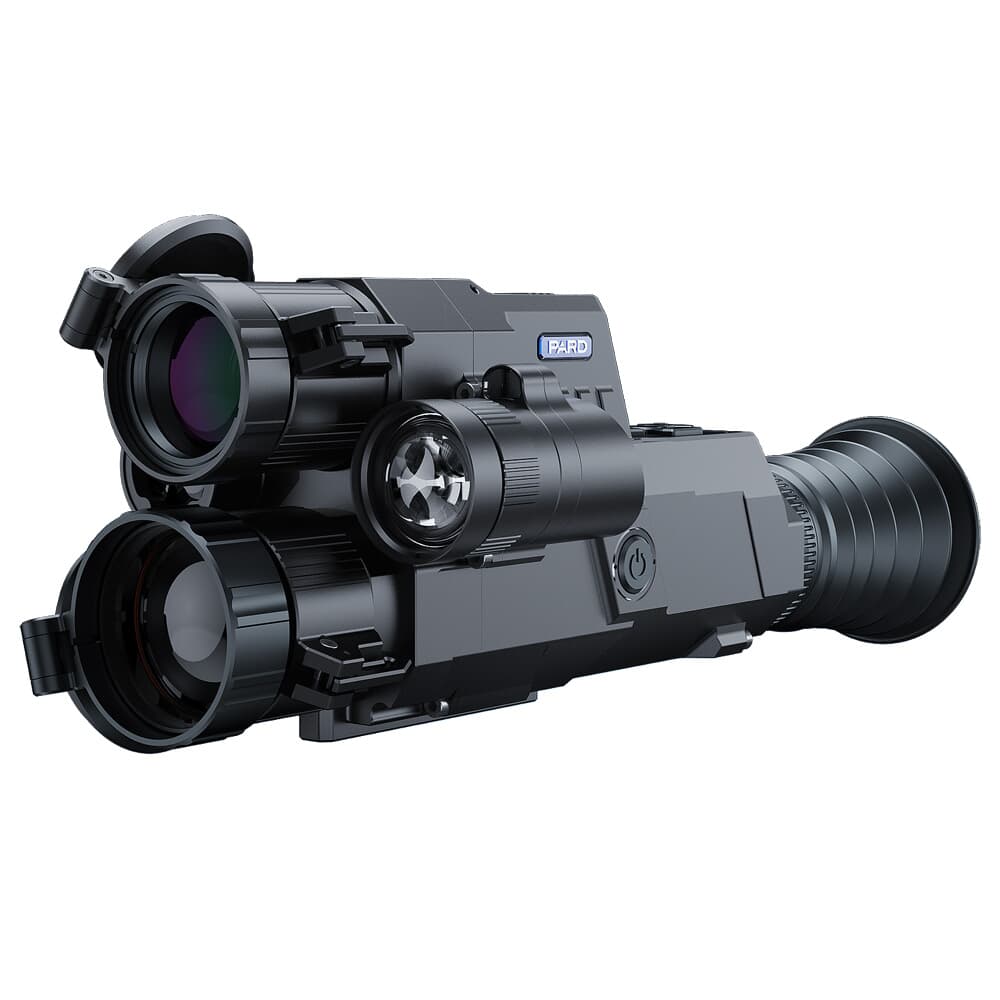

PARD Landsat 640 45 Compact LRF Dual Spectral Scope with 45mm Lens and 850nm IR

SKU:LA6C-45/70/850/LRF-PARD
(0)

Additional Payment Options

Government Export Restriction

This item may be regulated for export by the U.S. Department of State or the US Department of Commerce. Please see our Export Policy

ITAR Product

By adding to cart, I understand, acknowledge, and agree to the Export Policy. I am a US Person, and I do not intend to export this product. Please see our Export Policy

Description

The Landsat6 is the newest introduction from PARD. The dual spectral imaging technology combines long distance thermal detection, high definition night vision, a ballistics calculator, AND a laser rangefinder into a single unit. The Landsat6 thermal unit features a 640x512 resolution sensor, 35mm glass multi-coated objective lens, a wide FOV, 1.8x optical magnification, 2x digital magnification, 12µm pixel pitch and ≤20mK Noise Equivalent Temperature Difference (NETD) that will detect a human sized target out to 2100yds. The 2560x1440 CMOS night vision sensor is backed up with a 2.9μm pixel pitch and sensitivity down to .001 lux. The PARD VLEA image engine supports a 70mm focal lens, 4.3x base magnification, 2x digital zoom and a 3.4°x3.4° FOV. The 800x800 IPS LCD display features 6 individual reticle styles, 4 reticle colors, 3 scene modes, 6 thermal options and 100mm of eye relief to make your viewing experience amazing! Photo (2592x1944 .jpeg) and video (1024x768 .mp4 thermal/1440x1080 .mp4 night vision) can be easily saved to the removable 128GB micro SD card (not included). The Landsat6 also integrates a laser range finder (LRF) that is sensitive out to 1200yds and feeds the onboard ballistics calculator to instantly produce a new digital point of impact in complete darkness. Thermal and night vision images can be displayed independently or simultaneously with the picture-in-picture (PIP) function providing a clear heat signature and night-vision detail. Additional features include WIFI connectivity to your iOS or Android device through the use of the free PardVision2 app, USB Type-C & HDMI output connections, IP67 weatherproof rating (protection against airborne dust and 3ft water submersion for up to 30 minutes), recoil proof to 6000J (think .308 caliber), -22℉-131℉ operating temperature, HOT image tracking (automatically follows the heat source), gyroscope, loop recording, electronic compass, microphone, aluminum chassis construction and lithium ion 21700 removable/rechargeable batteries. All these technological features are packed into a unit that weighs only 26.5 oz (750g).

Specifications

SKU

LA6C-45/70/850/LRF-PARD

UPC

850050408550

MPN

LA6C-45/70/850/LRF

Battery Life

upto 5 hours

Dimensions

Product Dimension(L * W * H, mm) 265*92*90

Eye Relief

100

Field of View

3.4°x3.4° FOV

Magnification Range

1.8x optical magnification, 2x digital magnification

Polarity

Image Mode WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY

Power Supply

21700 removeable and rechargeable type c charging port

Range

Human detection distance(m) 1800 Vehicle detection distance(m) 3300

Sensor Resolution

640x480

Size

800x800 IPS LCD

Optic Details

Resolution(pixel) 640x512 Pixel Size(µm) 12*12 NETD ≤20mK(0.02℃) Frame Rate(Hz) 50 Detection Distance(m) 1800 Image Engine PARD IREA Objective lens(mm) 35 Reticle Style 6 Reticle Color 4(Red/White/Yellow/Green) Scene Mode City/Rain/Forest Image Mode WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY

Thermal Sensitivity

NETD ≤20mK(0.02℃)

Spectral Response

Pixel Size(µm) 12*12

Weight

785g

Item Condition

New

Product Type

Thermal
