REVIC Optics

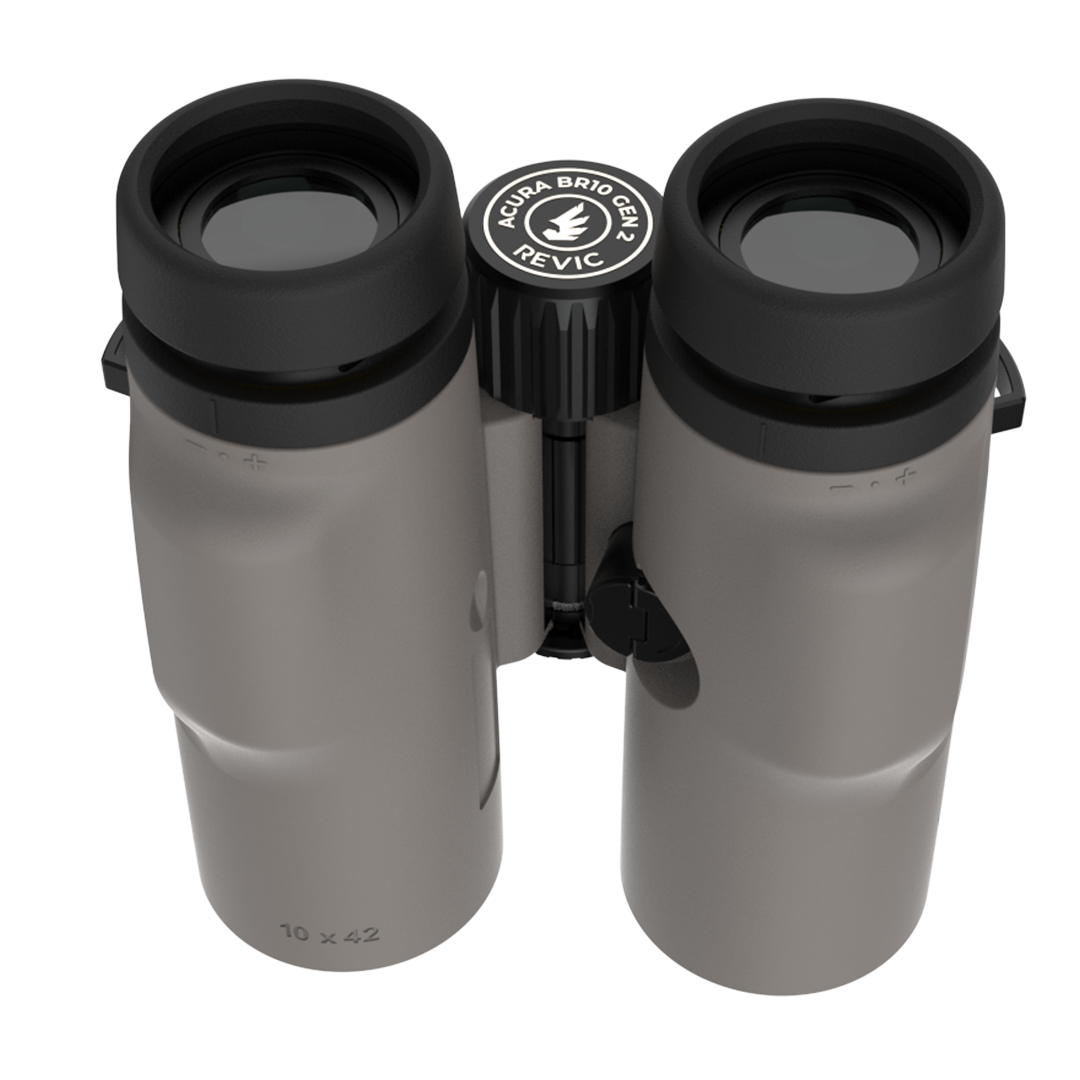

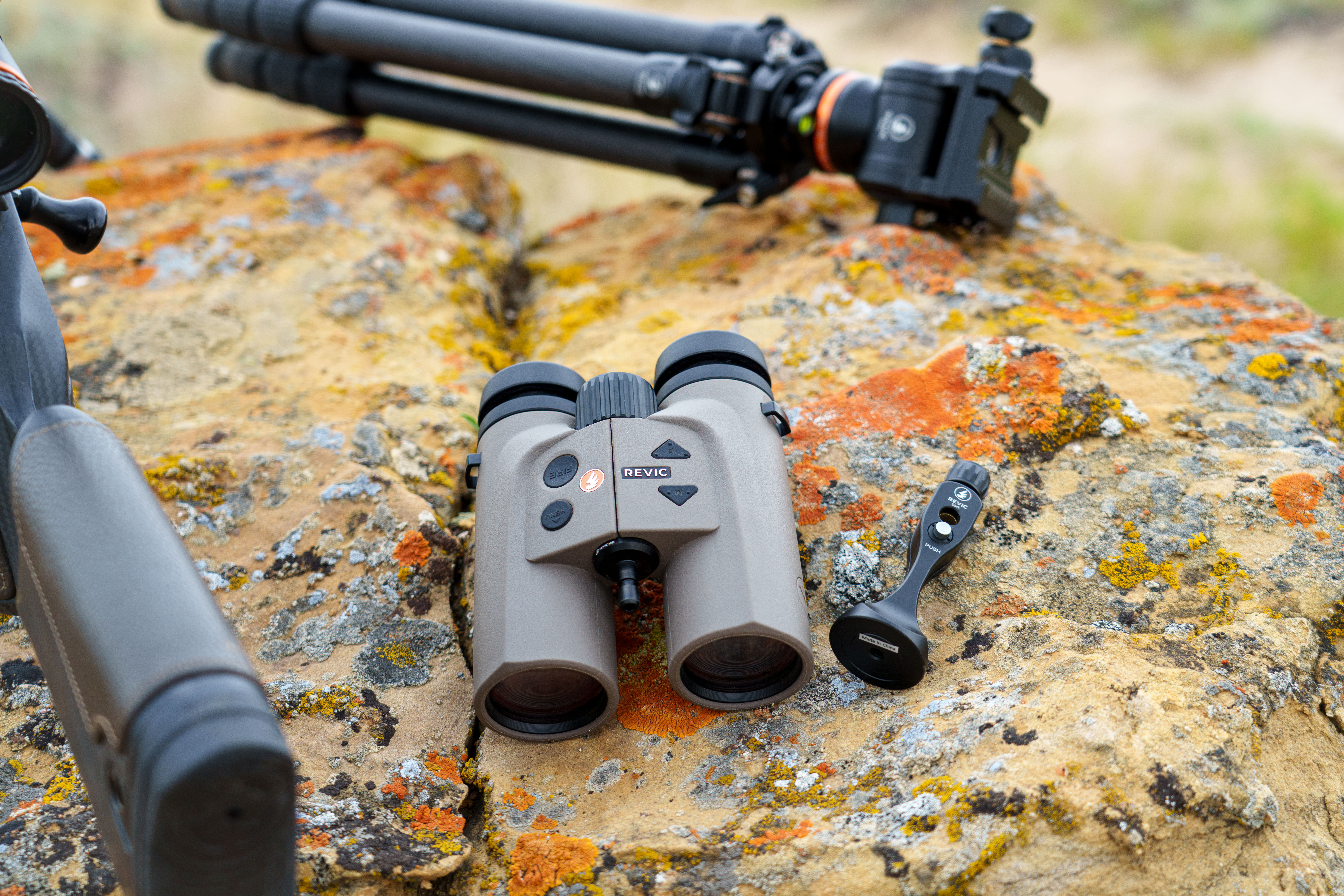

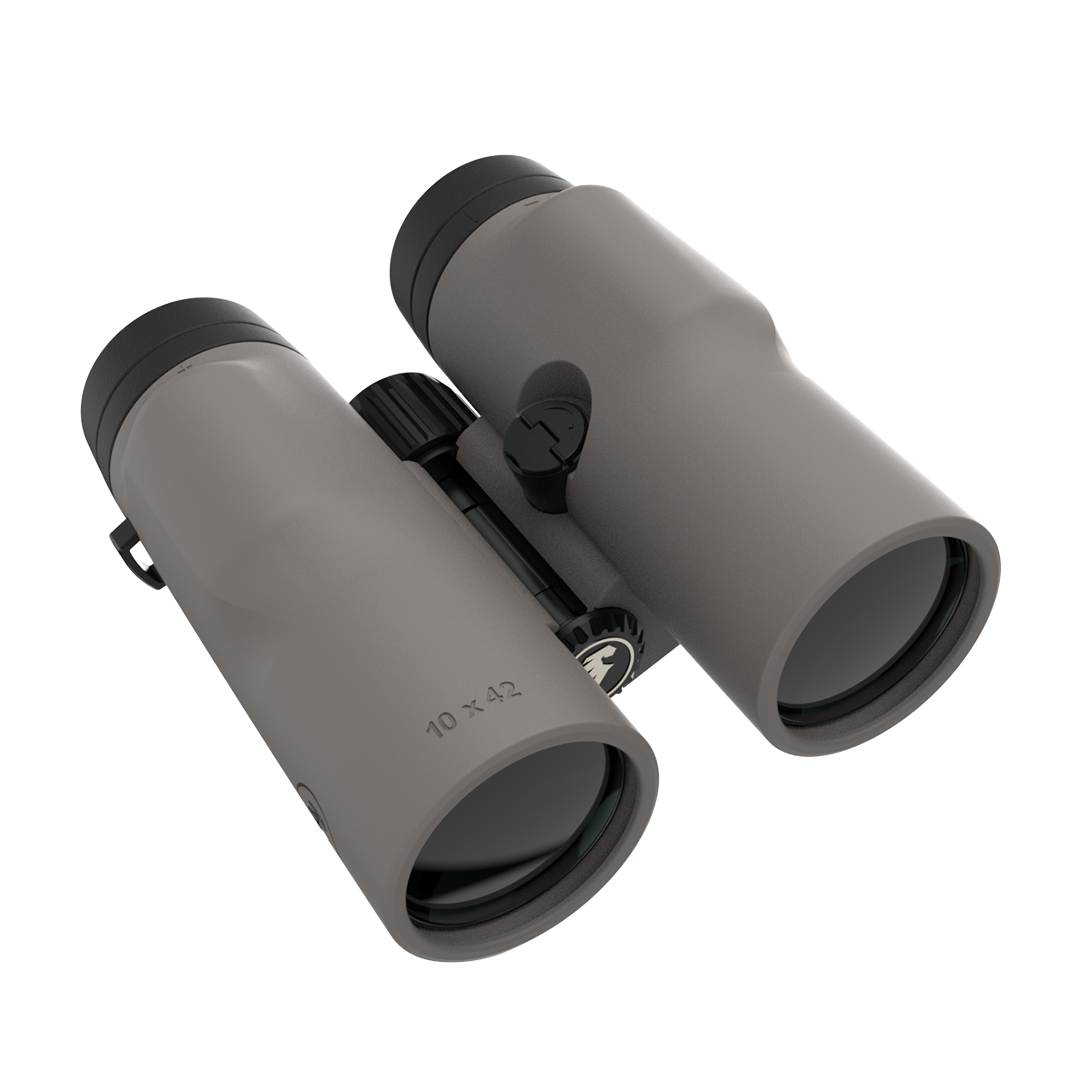

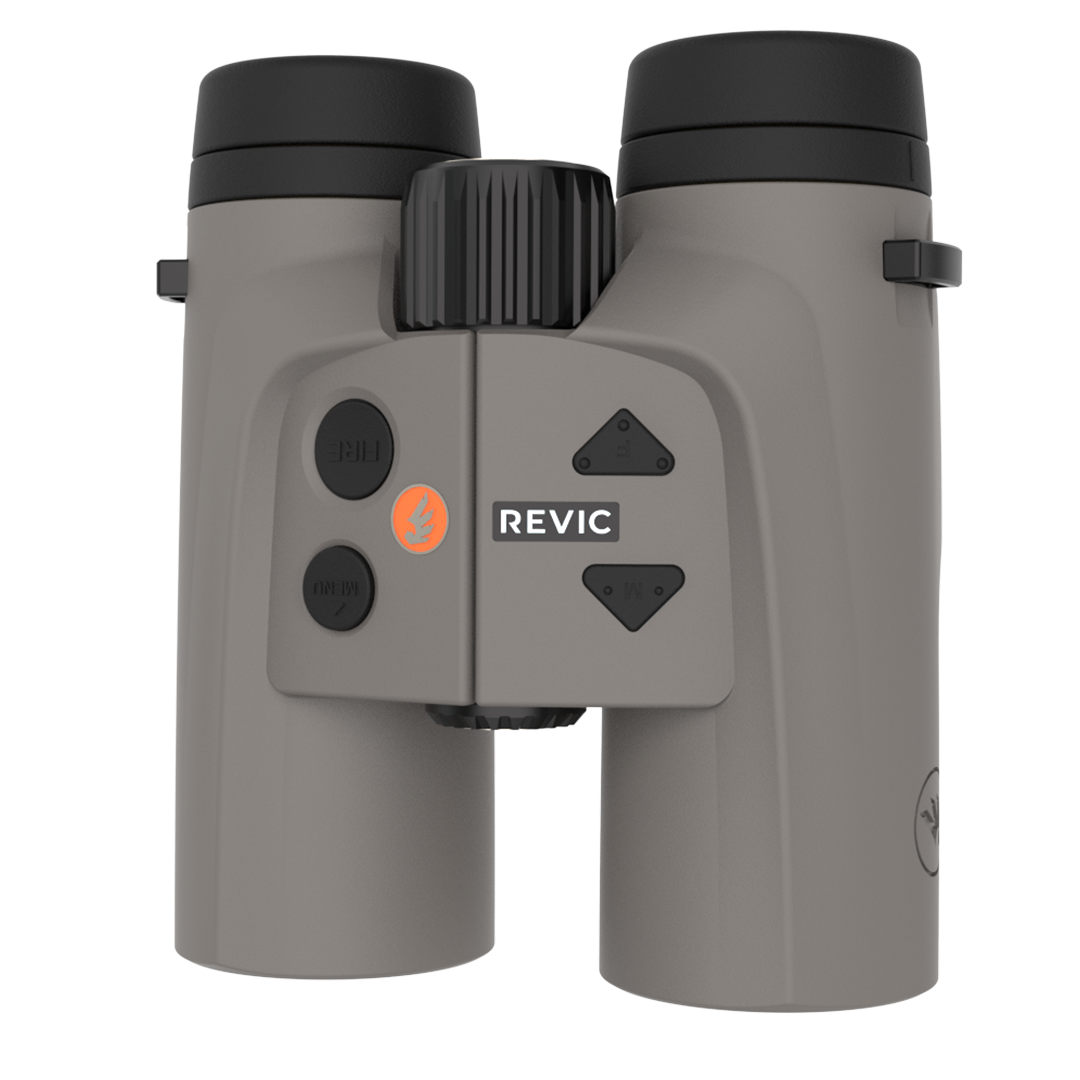

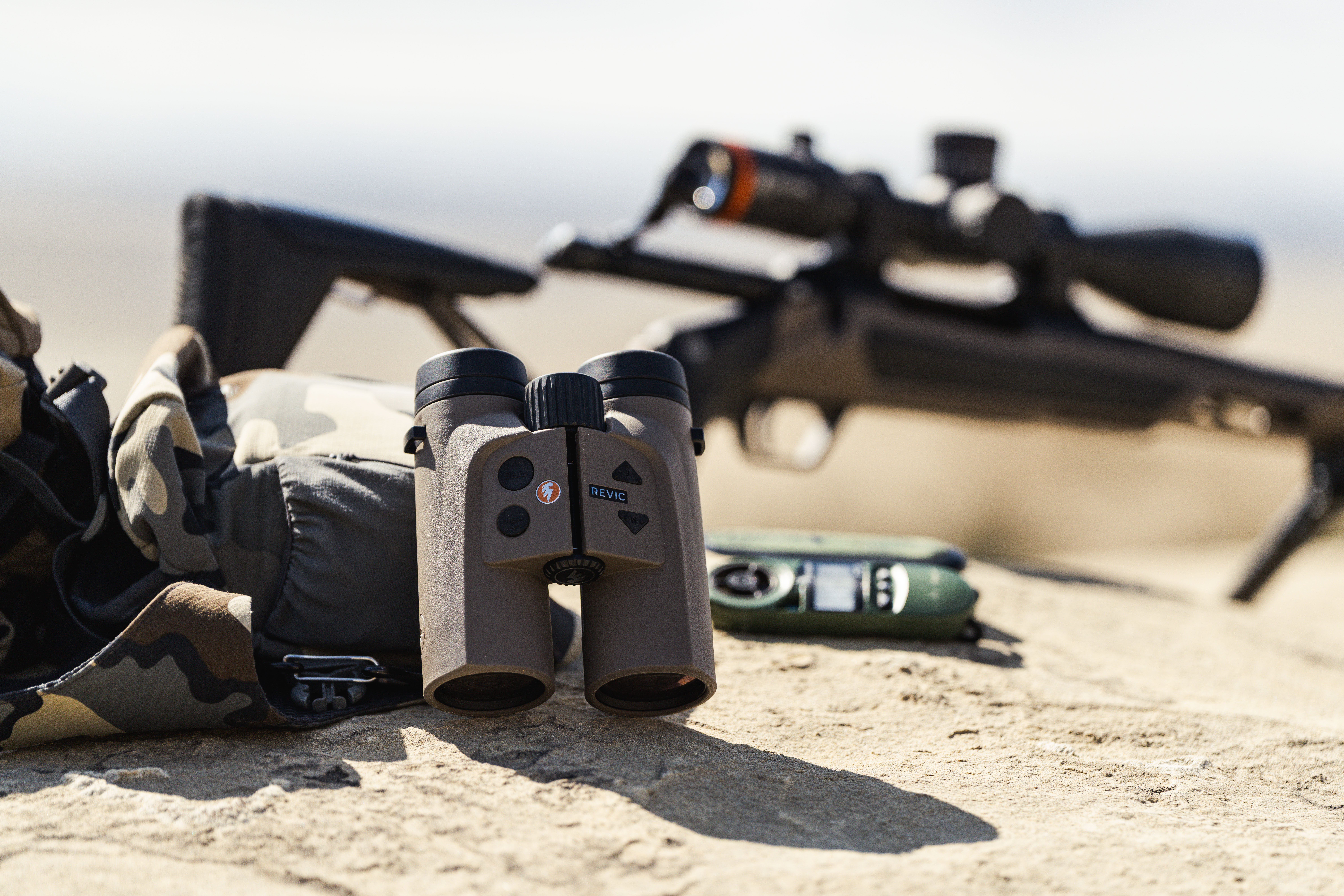

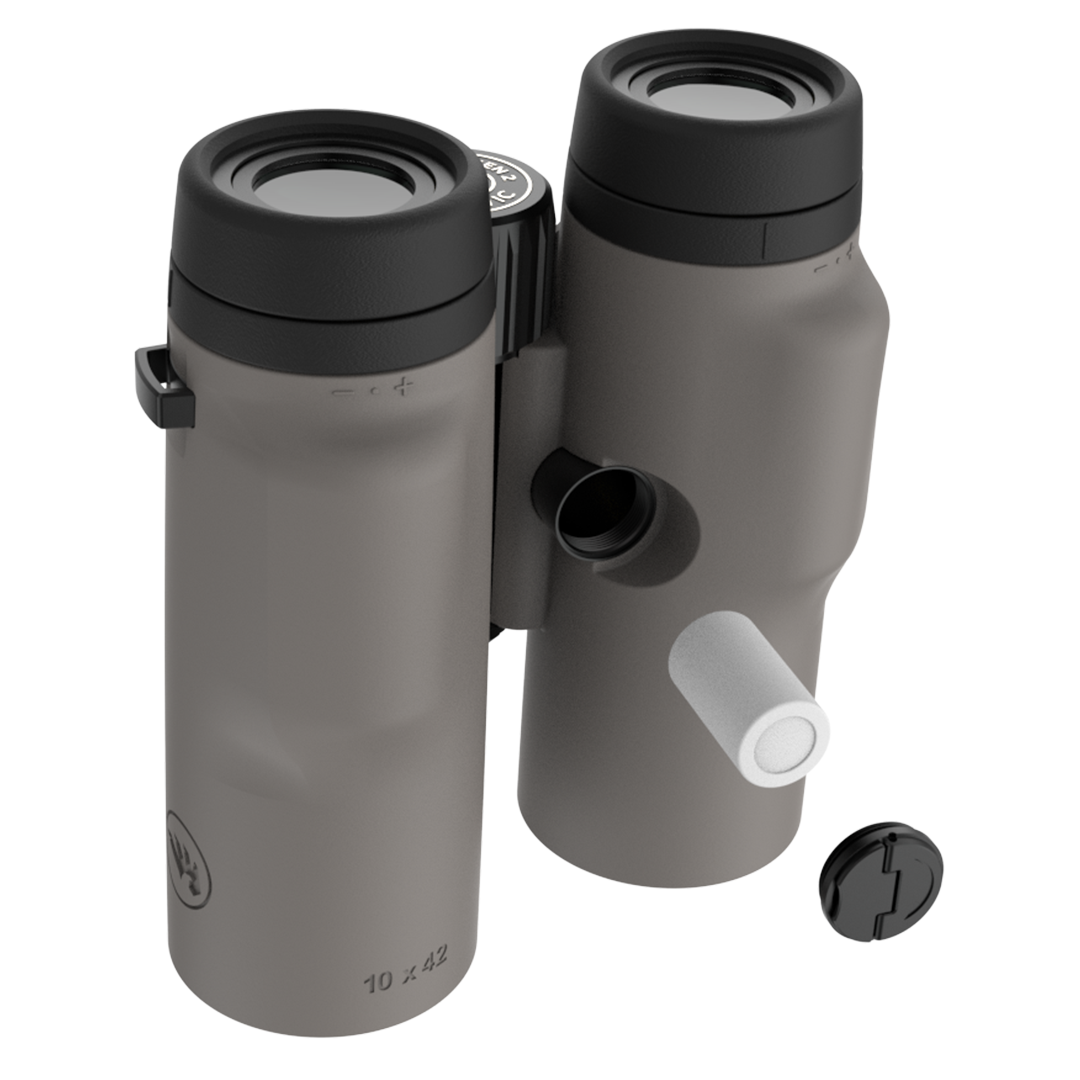

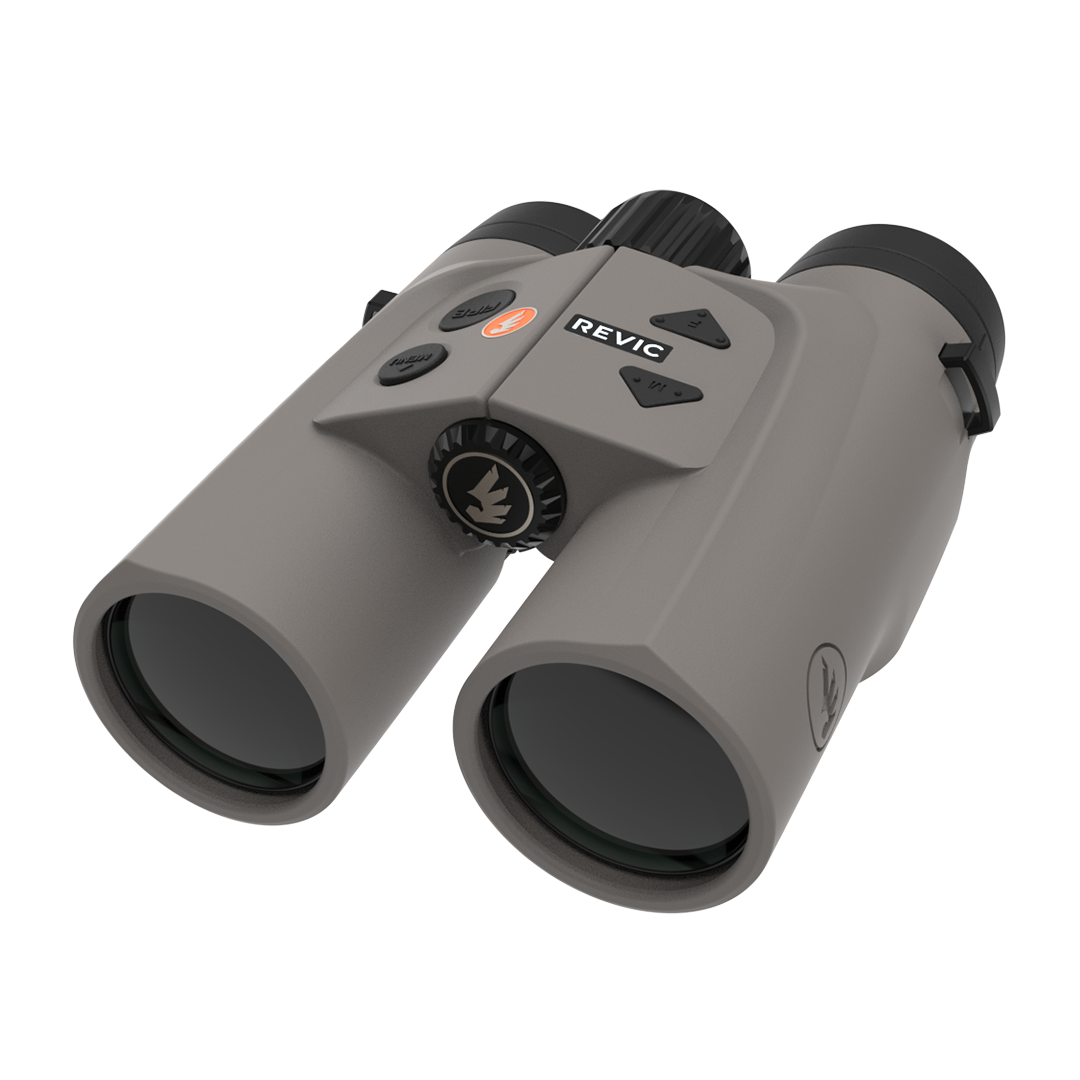

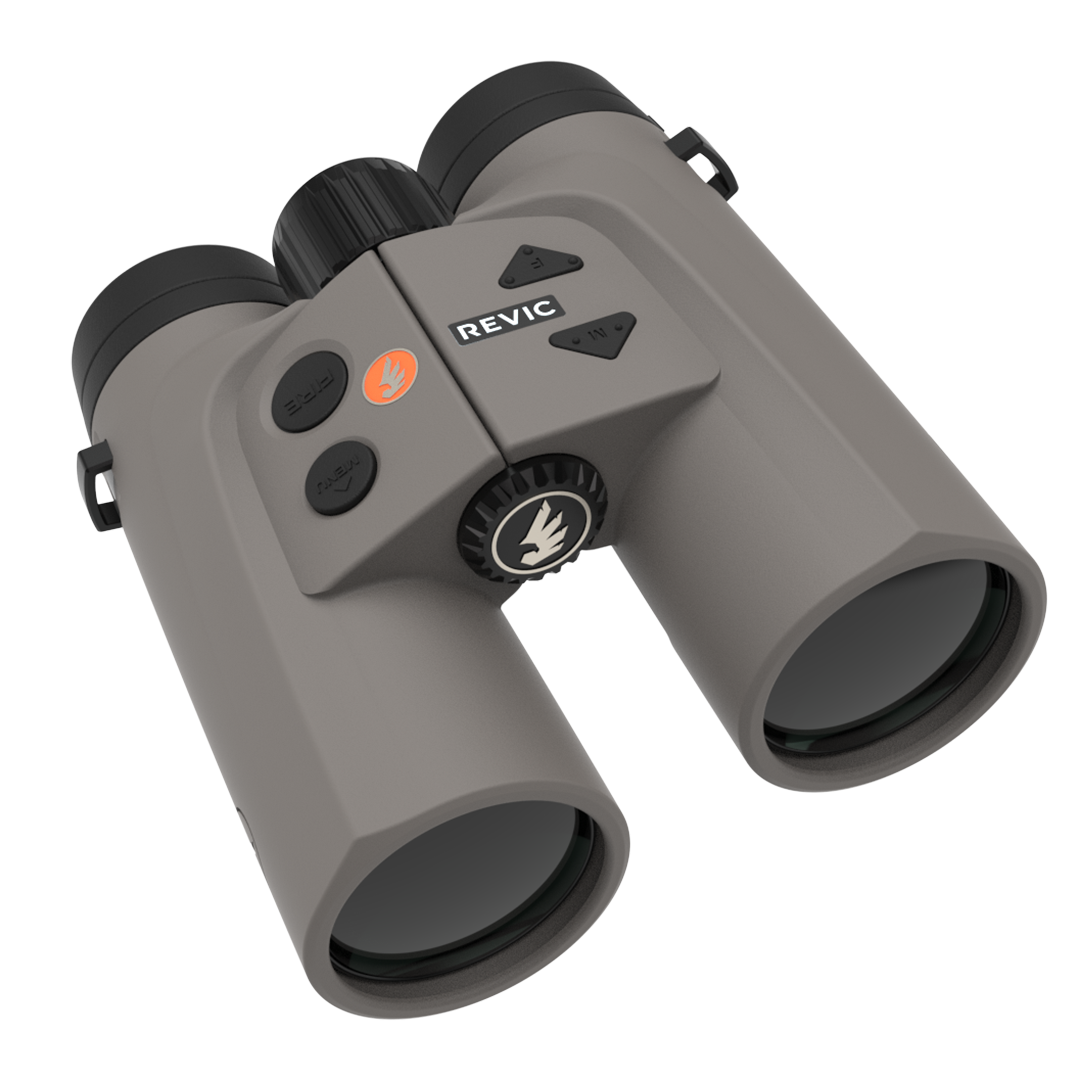

Revic Acura BR10 10x42 Ballistic Rangefinding Binocular AY-R-5501

SKU:AY-R-5501-Revic
(1)

Additional Payment Options

Government Export Restriction

This item may be regulated for export by the U.S. Department of State or the US Department of Commerce. Please see our Export Policy

Description

The Revic Acura BR10 10x42 is a precision-engineered ballistic rangefinding binocular designed for long-range hunters and shooters who demand high performance in the field. Combining crystal-clear optics with advanced ranging technology, the BR10 offers fixed 10x magnification and fully multi-coated ED glass for superior clarity and light transmission. It delivers reliable distance measurements out to 5,000 yards on reflective targets and up to 1,400 yards on deer-sized game, with integrated angle compensation for accurate ballistic corrections. Built tough with an aluminum chassis and rubber-armored housing, it's fully waterproof, fog-proof, and shock-resistant-ideal for rugged environments. The intuitive interface allows quick target acquisition with measuring times of around 1 second. Bluetooth connectivity and Revic Ops app integration add functionality for data syncing and firmware updates. The device also includes environmental sensors for pressure, temperature, and compass heading. A Class 1M eye-safe laser ensures both performance and safety, with minimal beam divergence for pinpoint accuracy. With its compact size and exceptional range capabilities, the BR10 is a go-to choice for field-ready precision.

Key Features:
  • 10x magnification with 42mm objective lenses
  • Fully multi-coated ED glass for enhanced image clarity
  • Ranging distance: 10 to 5,000 yds (reflective); 2,200 yds (deer)
  • Beam divergence: 1.459 × 0.062 mrad
  • Built-in inclinometer with angle-compensated ranging
  • Laser wavelength: 905 nm (Class 1M Eye Safe)
  • Bluetooth-enabled; pairs with Revic Ops app
  • Environmental sensors: pressure, temperature, inclinometer, compass
  • Waterproof (IP67), fog-proof, and shockproof aluminum body
  • Weight: 31.75 oz; dimensions: 5.2" x 5.4" x 2.4"

Specifications

SKU

AY-R-5501-Revic

UPC

850056810302

MPN

AY-R-5501

Angular Field of View

Approximately 5.7°

Close Focus Range

10 m

Dimensions

5.2" L x 5.4" W x 2.4" H

Exit Pupil

4.2 mm

Eye Relief

16 mm

Field of View

32 ft at 100 yds

Range

10 to 5,000 yds (reflective targets)
Up to 2,200 yds (deer-sized targets)

Beam Divergence

1.459 × 0.062 mrad

Laser

Class 1M Eye Safe laser

Measurement Units

Yards and meters

Measuring Time

Approximately 1 second

Angle Compensation

Integrated inclinometer for angle-adjusted readings

Item Condition

New

Product Type

Rangefinding Binocular
