Schmidt Bender

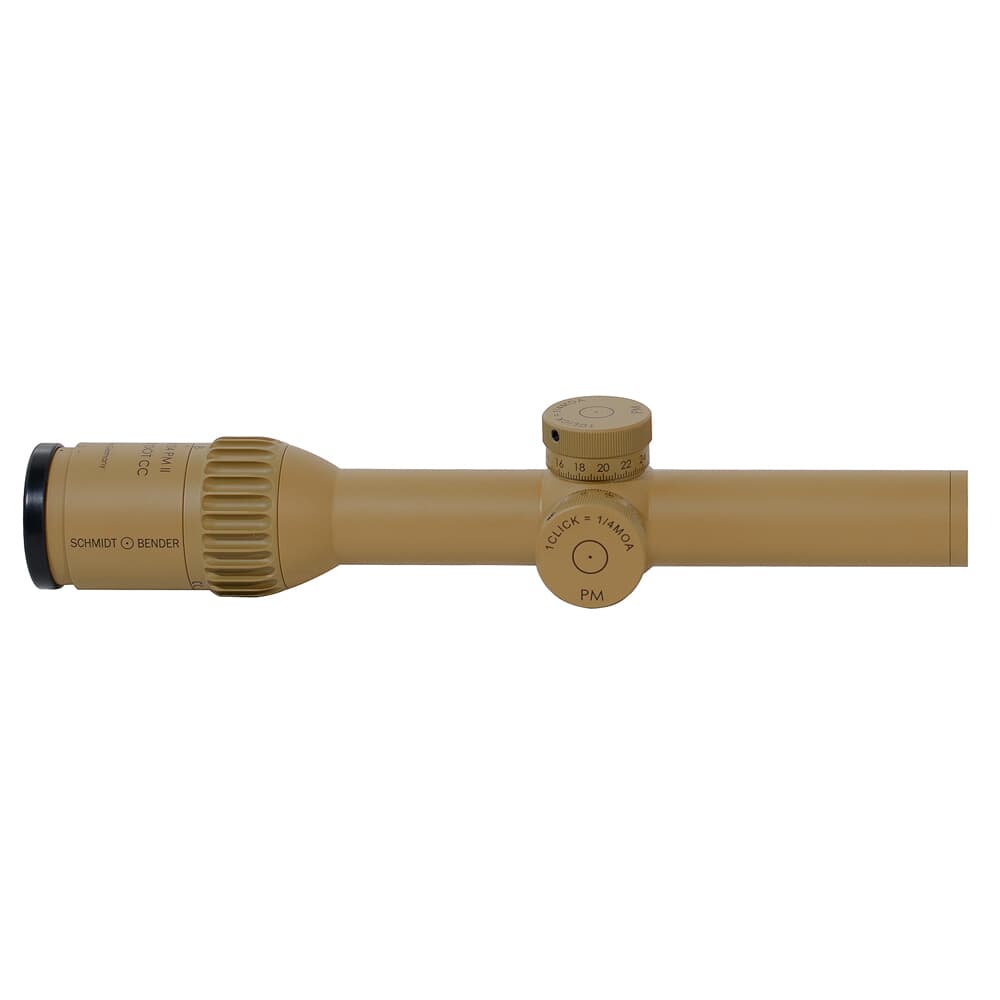

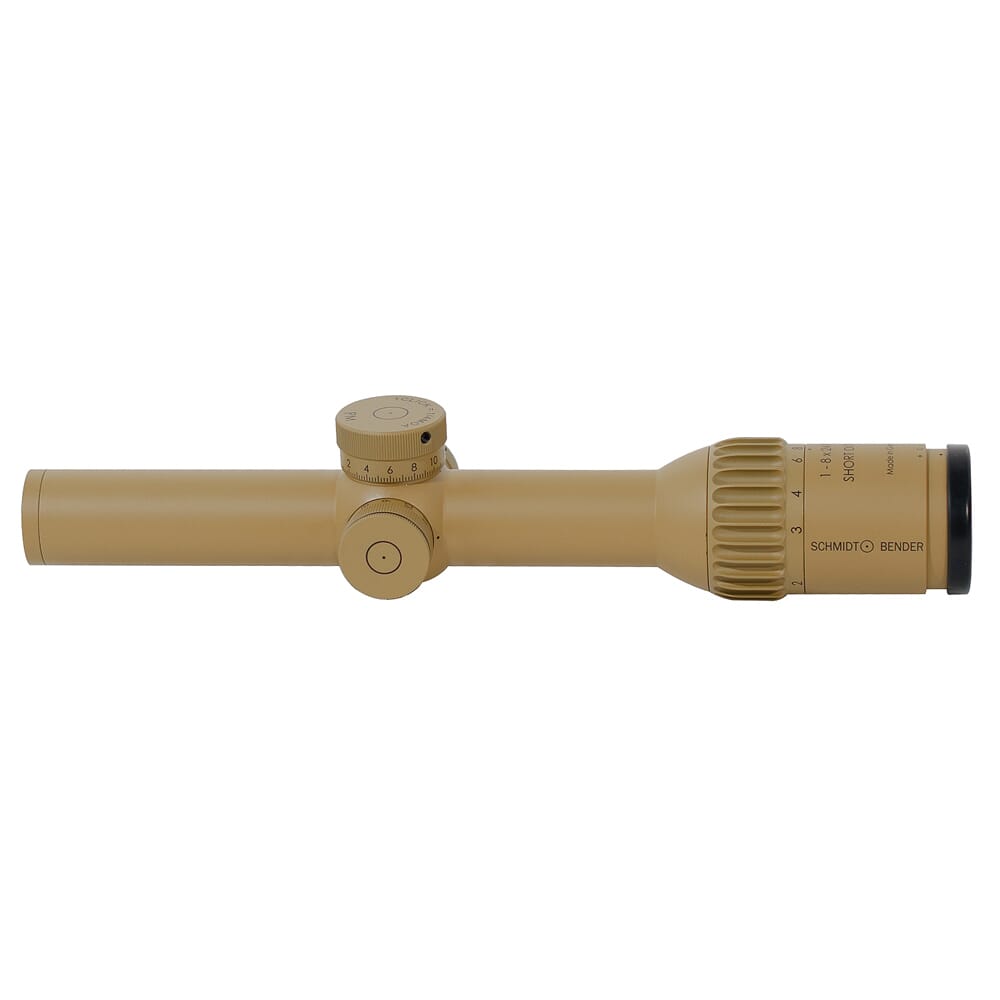

Schmidt Bender 1-8x24 PM II ShortDot CC FD CQB2 1/4 MOA cw ST LT / ST LT RAL8000 Riflescope 682-845-918-F5-D7
This item may be regulated for export by the U.S. Department of State or the US Department of Commerce. Please see our Export Policy
Description
Schmidt & Bender is synonymous with quality and precision. This perception has made Schmidt & Bender one of the leading suppliers of precision scopes in the world. As early as the company's start in 1957, Schmidt & Bender has engaged in the development and production of riflescopes that always meet the ever increasing requirements of civilians and law enforcement alike. The 1-8x24 ShortDot line is no different.
The 1-8x24 ShortDot from Schmidt & Bender is a feature rich riflescope line. The patented CC mode integrates a true red dot sight. At 1.1x, turn to CC and the system becomes parallax free with 1x magnification for distances between 7 and 10 meters. For short and medium distance shooting, look no further than the 1-8x24 ShortDot to meet your needs. With 8 different illumination increments, low-light shooting is a problem of the past. Schmidt & Bender is a name you can trust to deliver quality and reliable scopes.
The Schmidt & Bender 1-8x24 ShortDot. While the scope comes with plenty of features, these accessories can be a valuable addition to your scope. For what ever your scope may need, EuroOptic has you covered.
Specifications:
- Field of View: 35.3 - 4.9
- Exit Pupil: 9.6 - 3 mm
- Eye Relief: 3.54 in
- Length: 11.54 in
- Transmission: 90%
- Magnification 1-8x
- Colors: Black, RAL8000, or Pantone7504M
Specifications
SKU
682-845-918-F5-D7
UPC
191992000236
MPN
682-845-918-F5-D7
Exit Pupil
9.6 - 3.0 mm
Eye Relief
90mm/3.54"
Field of View
35.3m - 4.9m
Illuminated Reticle
Yes, 11 settings
Light Transmission
90%
Magnification Range
1-8x
Parallax Adjustment
100 m Fixed
7 m CC Mode
Reticle Position
Second Focal Plane
Elevation Turret Details
ST LT (Single Turn; Locking Turret)
102 cm/100 m
Scope Finish
RAL8000
Scope Length
293mm/11.53"
Scope Objective Diameter
24mm
Reticle Details
CQB2 Reticle
Scope Tube Size / Mount
30mm
Turret Adjustment (Click Value)
.25 MOA CW
Scope Weight
22.75oz
Windage Turret Details
ST (Single Turn)
±6 mrad
Twilight Factor
14.1 - 37.4
Item Condition
New
Product Type
Riflescopes
Scope Turret Rotation
Clockwise (CW)
