Schmidt Bender
This item may be regulated for export by the U.S. Department of State or the US Department of Commerce. Please see our Export Policy

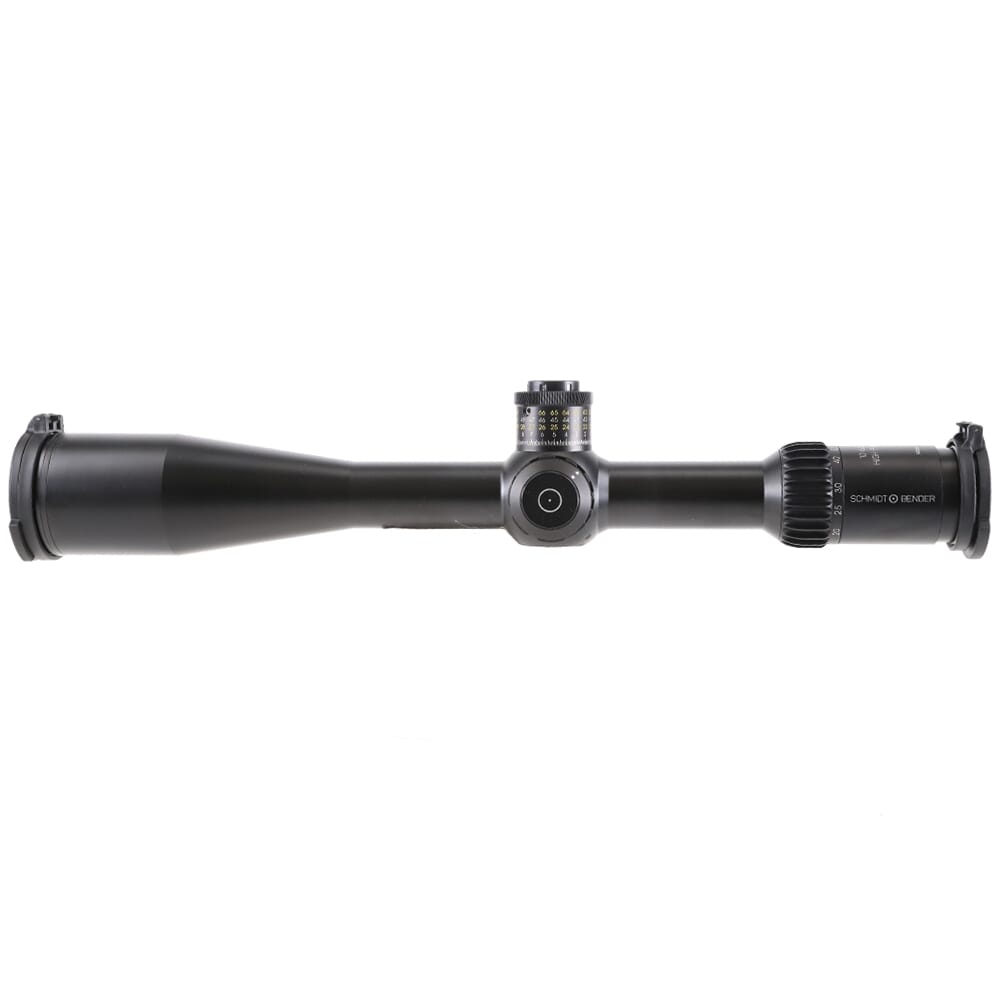

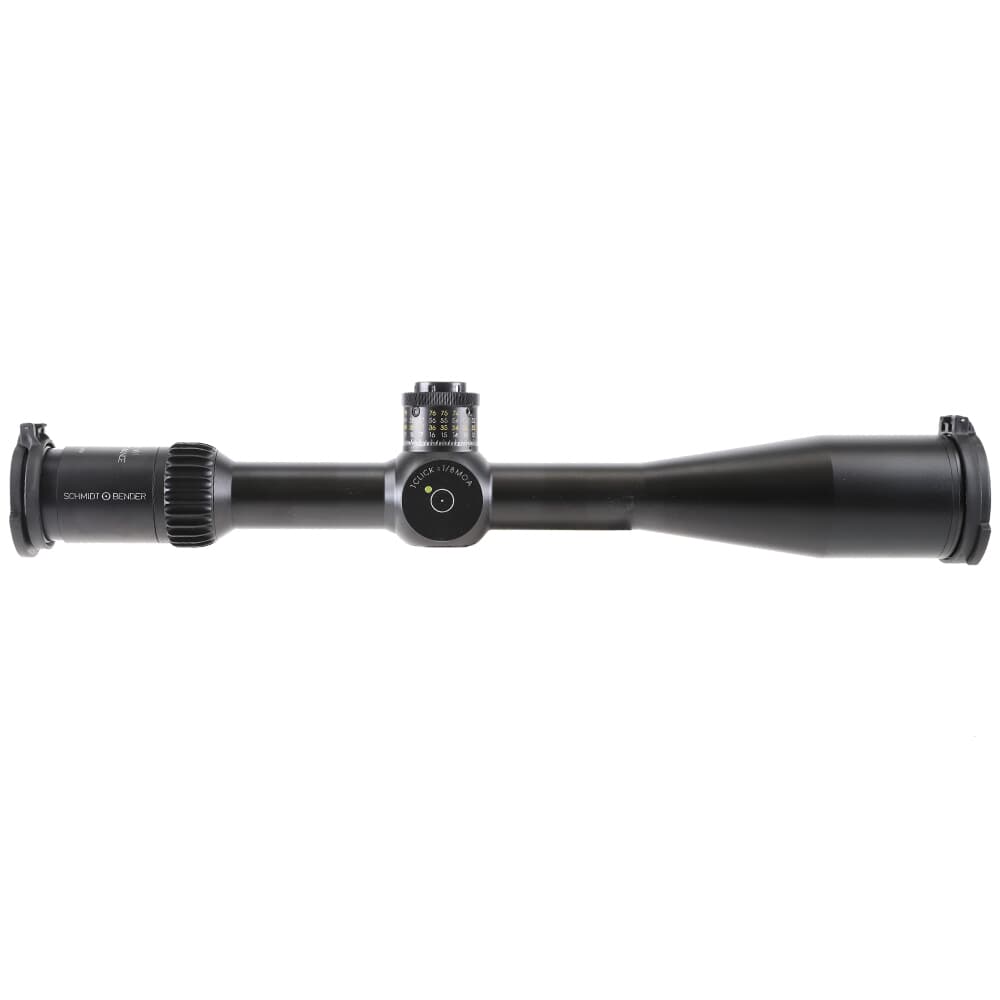

Schmidt & Bender’s 10-60x56mm Riflescope was designed to deliver maximum precision, and is ideal for bench rest, F-class, long range, and extreme long range shooting. Like all of Schmidt & Bender’s premium riflescopes, the 10-60x56mm offers superb optical quality. A massive field of view and generous exit pupil makes target acquisition fast and intuitive. The 56mm objective lens and 90% light transmission ensures a sight picture with high contrast and extreme clarity even when set to high magnification. One of the 10-60x56mm’s more notable features is the M1FL Reticle, which was specifically designed for the highest precision disciplines as well as for extreme long range shooting. Based off the LRR-MIL reticle, the M1FL reticle features a free floating center dot that covers a mere 0.32cm at 100 meters, and is surrounded by an interrupted center cross with 0.1 MRAD gaps and dashes for shot placement with extreme precision. The M1FL is graduated in 0.1 mrad ¬subtensions up to the 5 MRAD mark and can be used for holding and measuring over the entire range. For faster orientation, even graduation marks are made downward or to the right and uneven ones correspondingly upward or to the left. From the center, the markings are more clearly highlighted from the 2 mrad mark onwards so that they can be easily noticed even at lower magnifications.
Other features of the 10-60x56mm include the innovative LPI which integrates the illumination control into the parallax. This provides more mounting options, and better accommodates left handed shooters. The LPI outer knob controls the 11 illumination settings with “off” positions between each step. The inner knob provides parallax adjustments, beginning at 20 meters and going up to infinity. In addition, the 10-60x56mm Riflescope is available in two elevation turret options, the Double Turn II+ with click values of 0.1 MRAD and the Multi Turn II with click values of 0.05 MRAD. Both options have a elevation adjustment range of 23.5 MRAD.
860-911-62G-Q5-L7
191992066935
860-911-62G-Q5-L7
5.6mm - 1.0mm
3.94"
13.3 feet @ 100 yards (low power)
2.3 feet @ 100 yards (high power)
2.5° - 0.4°
No
90%
10x - 60x
20 yards to infinity
Second Focal Plane
1/8 MOA ccw MTII
Black
17.4 inches
56mm
M2F-2MOA
34mm
1/8 MOA
35 ounces
DTII+ ccw in 1/8 MOA
23.7–58.0
New
Riflescopes
Counter Clockwise (CCW)
