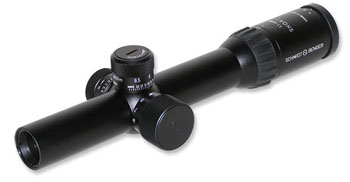

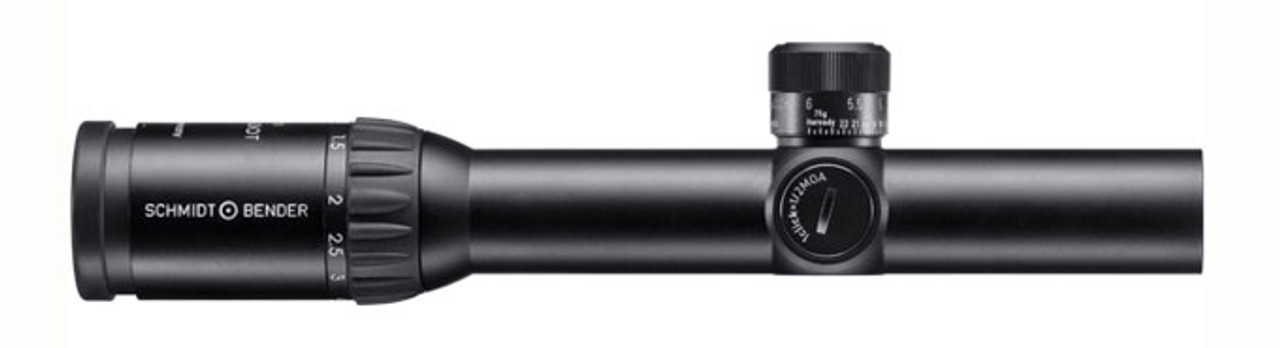

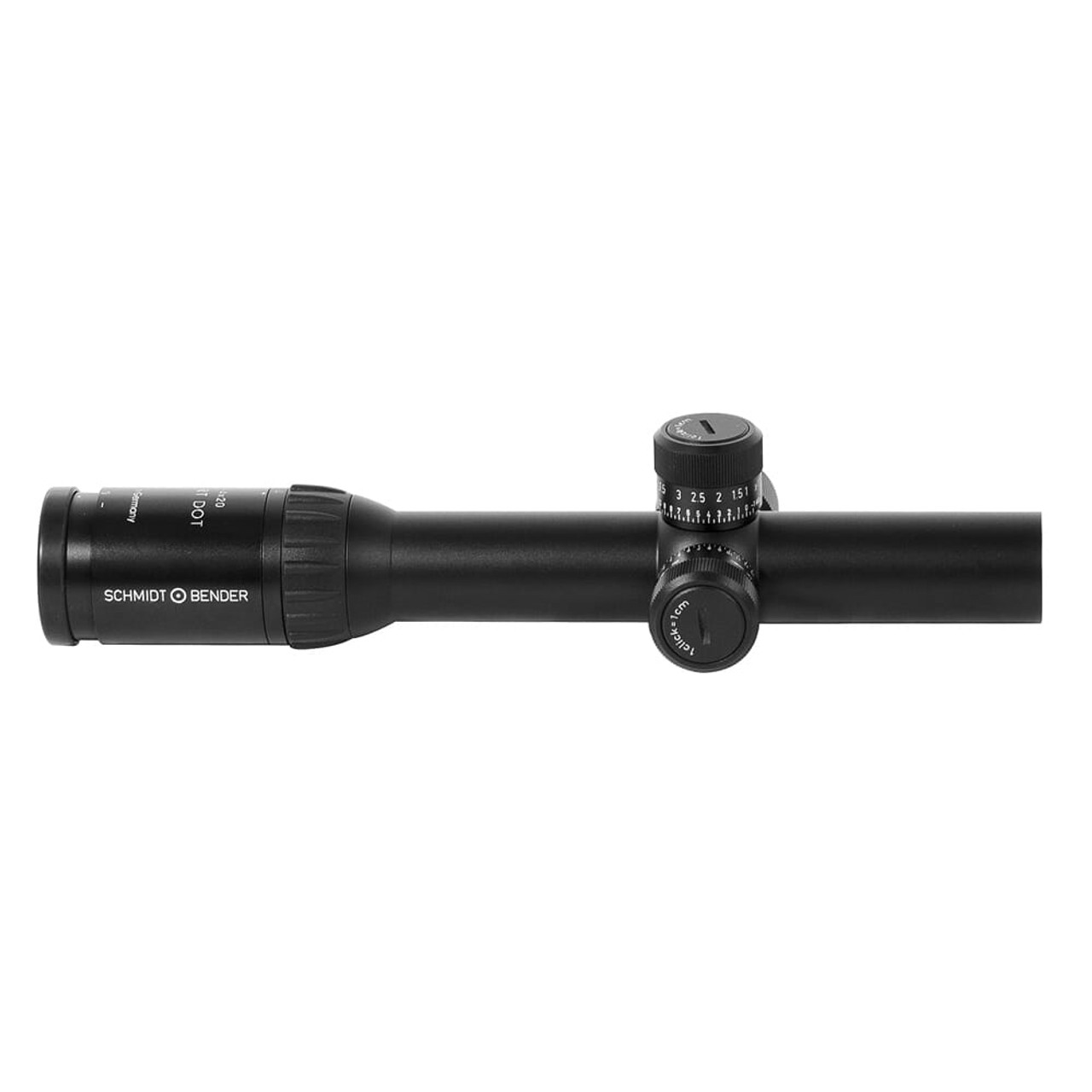

Schmidt Bender PM 1.1-4x20 1/2 MOA ShortDot CQB Scope

Schmidt Bender 1.1-4 x 20 Short Dot Police Marksman II CQB Locking Turret

A separate turret with 11 click stops controls the illumination function of a precise red dot at the center of the reticle. Fully variable illumination levels range from barely visible, for use with night vision equipment, to full bright for quick, accurate shots in bright, harsh daylight. With illumination switched off, the Short Dot functions as a standard scope with nonilluminated crosshairs. This is the first time that all possible applications of different illuminated reticle technologies have been combined into one riflescope, giving the Short Dot “any light, any time” versatility and reliability in any circumstance the shooter may encounter. Commonly referred to as the locking Short Dot, calibration rings are available for the M855, 75 Grain TAP and M118LR Load. M118LR turret standard.

At lower magnification levels, the Short Dot can be sighted with both eyes open. The full magnification range can be covered in a single 180–degree turn. Available with special CQB and No. 7 reticles.

Schmidt Bender PM II Manual

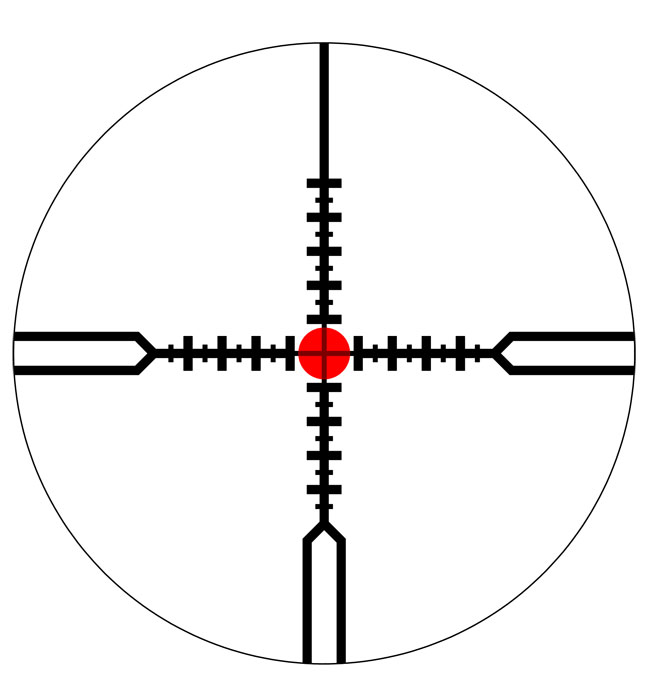

Schmidt Bender CQB Reticle
