Schmidt Bender

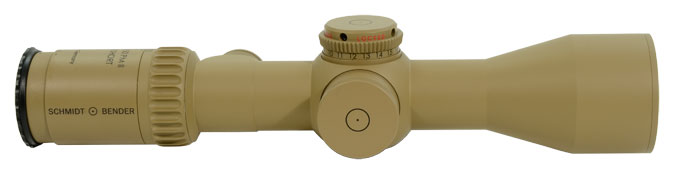

Schmidt Bender PMII Ultra Short Riflescope 5-20x50 34mm LP LT MTC/CT ST MSR FFP 1cm CCW Pantone 673-946-852-E2-E8
This item may be regulated for export by the U.S. Department of State or the US Department of Commerce. Please see our Export Policy
Description
The Schmidt Bender 5-20x50 PMII Ultra Short Riflescope was designed to take up as little real-estate on a rifle as possible while still providing a enough magnification to engage targets at medium to long range. Coming in at less than 12 inches in length, the 5-20x50 PMII Ultra Short leaves plenty of room for attachments like clip-on thermal/night vision optics and tactical lasers. The scope is built on a 34mm tube that aides in providing a large range of adjustment that is required for long range shooting. The 50mm objective in combination with the tube size and proprietary lens coatings produce a crystal clear sight picture with 90% light transmission.
To keep the riflescope as compact as possible, all Schmidt Bender 5-20x50 PMII Ultra Short Riflescopes feature low profile elevation and windage turrets, allowing for the mounting of reflex sights for close range engagements. All Schmidt Bender 5-20x50 PMII Ultra Short scopes come with locking turrets and ZeroClick to ensure the scopes zero is never unintentionally reset or lost. Some elevation turret options for the 5-20x50 PMII Ultra Short also feature Schmidt Bender’s MTC (More Tactile Clicks) technology, allowing for faster and more intuitive adjustments to elevation when engaging targets are varying distances.
Features of the Schmidt Bender 5-20x50 PMII Ultra Short Riflescope
- First Focal Plane Reticles
- 90% Light Transmission
- Locking Turrets w/ ZeroClick
- Compact 34mm Scope Body
- Low Profile Turret Design
Specifications
SKU
673-946-852-E2-E8
MPN
673-946-852-E2-E8
Exit Pupil
10.0 - 2.5 mm
Eye Relief
90mm/3.54"
Field of View
7.8m - 1.95m @ 100m
Illuminated Reticle
Yes
Light Transmission
0.9
Magnification Range
5-20x
Parallax Adjustment
Side Focus Parallax 25m->∞
Reticle Position
First Focal Plane
Elevation Turret Details
ST MTC LT (Single Turn; More Tactile Clicks; Locking Turret)
167 cm/100 m
Scope Finish
Pantone 7504M
Scope Length
300mm/11.8"
Scope Objective Diameter
50mm
Reticle Details
MSR Reticle
Scope Tube Size / Mount
34mm
Turret Adjustment (Click Value)
.1mRad counter clockwise adjustment
16 mRad elevation travel
+-6 mRad windage
Scope Weight
30.69 oz.
Windage Turret Details
ST ZS CT (Single Turn; Zero Stop; Capped Turret)
±60 cm/100 m
Twilight Factor
13 - 38.9
Item Condition
New
Product Type
Riflescopes
Scope Turret Rotation
Counter Clockwise (CCW)
