Vectronix PLRF25C BT X2 W/Kestrel Upgrade 914304 914486
This item may be regulated for export by the U.S. Department of State or the US Department of Commerce. Please see our Export Policy
By adding to cart, I understand, acknowledge, and agree to the Export Policy. I am a US Person, and I do not intend to export this product. Please see our Export Policy
Description
Includes Software Upgrade 914486 - Interoperability with Kestrel devices.

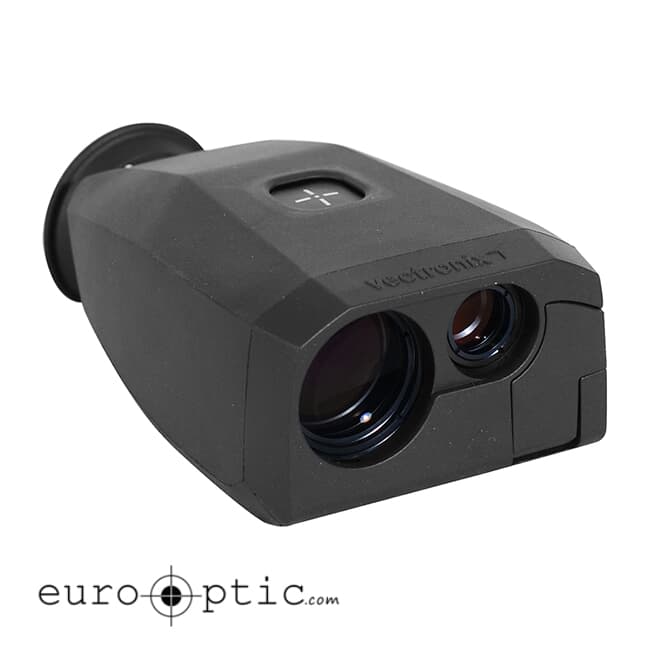

The Vectronics Pocket Laser Rangefinder (PLRF) is one of the smallest and most powerful laser rangefinders in its class. The design is ergonomic and lightweight allowing for one-handed operation, and its one-button control system means little training is necessary. The PLRF25C can accurately depict distance and angle measurements up to 6000 meters away. As the name implies, the PLRF25C is notably compact and can fit into most pockets with ease, measuring just 131x88x55mm and weighing only 430g.
PLRF25C Features
- Subject to stringent quality controls and tested to MIL-STD-810 and MIL-STD-461
- Ranging distances effectively up to 6,000 meters
- 1-Button, single-handed operation
- Intuitive handling
- 6x Magnified optic with 6° Field Of View
- RS232 Standard Data Interface
- Bluetooth (SPP) Compatible
- Rockwell Collins DAGR/PLGR II/PLGR+96 External GPS Compatibility
Resources
- PLRF25C Technical Data Sheet - Available On Request
- PLRF25C User Manual - Available On Request
- PLRF25C Brochure
- Tripods/Monopods Technical Data Sheet - Available On Request
Specifications
SKU
914304-914486-Vec
MPN
914304-914486
Dimensions
131mm x 88mm x 55mm / 5.2" x 3.5"x 2.2"
Range
5m to > 6,000m (3km on NATO target)
±2m (50m to 1,500m)
±5m (<50m / > 1,500m)
Battery Type
(1) 3V lithium battery type CR123A
> 5,000 Measurements Lifetime
Low-Battery Indicator
Beam Divergence
Typical 0.7 x 1.70 mil
Laser
1550 nm Class I Eye-Safe per IEC 60825-1 Ed 2.0
(2007-03)
Measurement Units
Distance: Meter, Yard, Feet
Angle: Milradian, Degree
Measuring Time
<0.4 Seconds
Monocular Details
6x Magnification
6°/106mil Field Of View
Fixed 30m -> ∞ Focus
Eye Relief: 24mm
Diopter Settings: +4 to -4
Angle Compensation
Distance
Azimuth (bearing, angle between north and object)
Inclination Angle
Azimuth accuracy ±10 mil / ±0.6°
tripod, typical ±5 mil / ±0.3°
Inclination accuracy ±3mil / ±0.2°
Weight
430g / 0.95lb (incl. battery)
500g / 1.1lb (w/shock absorbing cover)
Item Condition
New
Product Type
Laser Rangefinders
