Zeiss Sport Optics

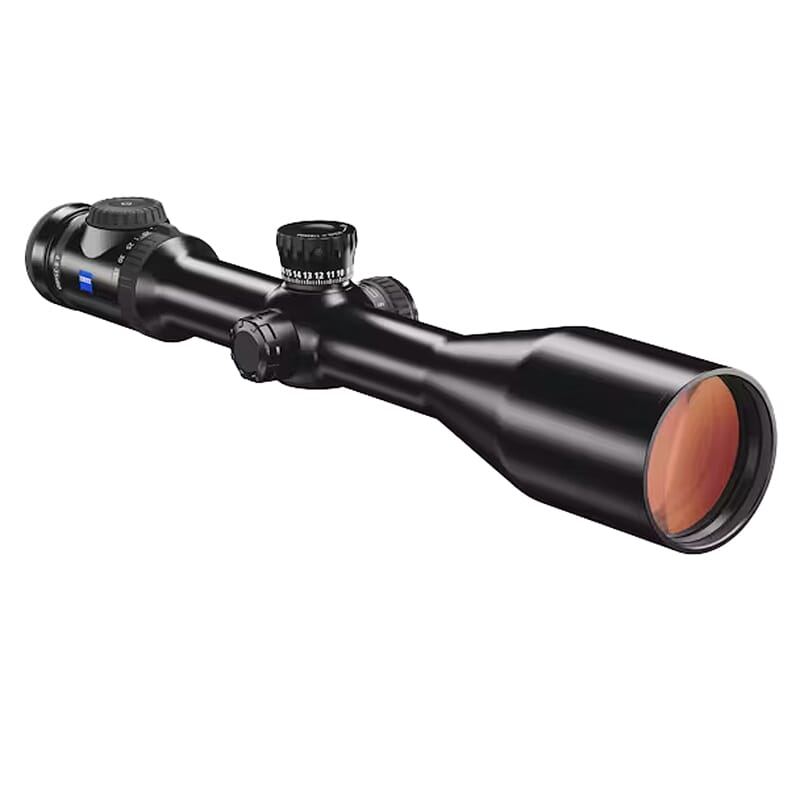

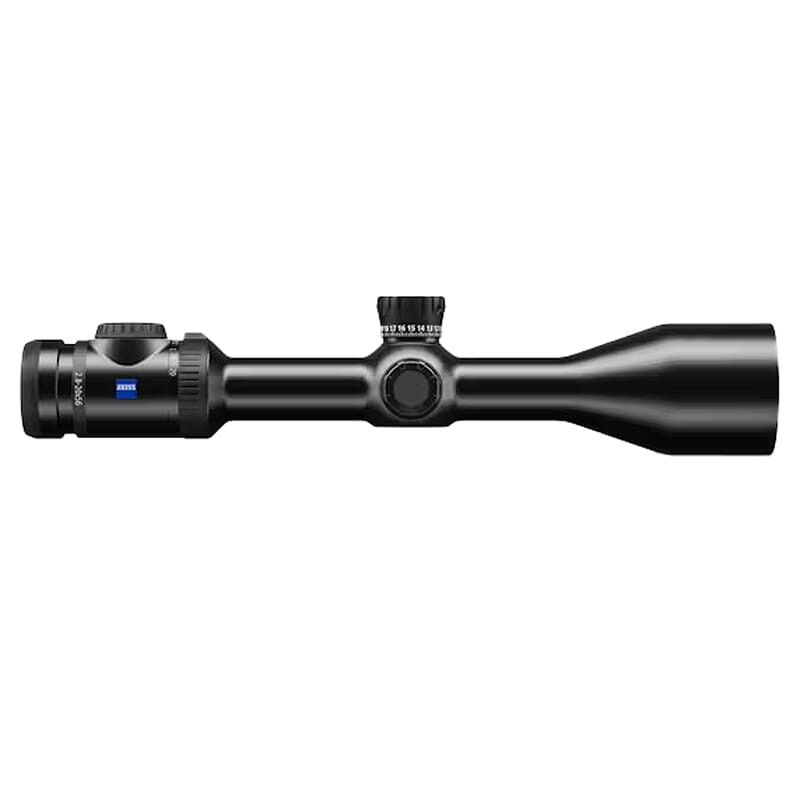

Zeiss V8 North American 2.8-20x56mm 30mm .25 MOA Plex #60 Riflescope w/Ballistic Stop 522133-9960-040
Additional Payment Options
This item may be regulated for export by the U.S. Department of State or the US Department of Commerce. Please see our Export Policy
Description
ZEISS V8 NA 2.8-20x56
German design, engineering, manufacturing, and ultimate craftsmanship come to life in these sophisticated V8 scopes with a highly advantageous 8x zoom ratio. The distinctly innovative optics utilize exotic glass types, including SCHOTT glass, featuring multiple FL (fluoride) and HT (high-transmission) lens elements. The optical system yields an impressively bright image, with a guaranteed light transmission value of 92%. An immediate advantage of these designs is the extra-large eye box that allows for faster target acquisition.
The V8 2.8-20x56 NA opens up more hunting opportunities in lower light conditions and at longer distances. Enjoy vivid and highly contrasting images, with exceptional resolution. The scope represents a perfect balance between high magnification and low-light performance.
Specifications
- Magnification: 2.8 – 20 ×
- Effective lens diameter: 27.5 – 56 mm
- Light transmission: 92%
- Exit pupil diameter: 9.9 – 2.8 mm
- Twilight factor: 7.9 – 33
- Field of view at 100 m (yds): 15.5 – 2.1 m (46 – 6 ft)
- Objective viewing angle: 8.8° – 1.2°
- Diopter adjustment range: −3.5 | +2 dpt
- Eye relief: 92 mm (3.6")
- Parallax setting: 50 m – ∞ (54 yds – ∞)
- Vertical adjustment range at 100 m: 72 MOA | 210 cm
- Lateral adjustment range at 100 m: 46.5 MOA | 135 cm
- Adjustment per click at 100 m: 0.25 MOA
- Centre tube diameter: 30 mm
- Eyepiece tube diameter: 46 mm
- Objective tube diameter: 62 mm
Features
- LotuTec: Yes
- Nitrogen filled: Yes
- Water resistance: 400 mbar
Physical
- Operating temperature: −25°C | +50°C (−13°F | +122°F)
- Length: 350 mm (13.8")
- Weight (without inner rail): 795 g (28.0 oz)
- Weight (with inner rail): 830 g (29.3 oz)
Specifications
SKU
522133-9960-040-Zeiss
UPC
740035000919
MPN
522133-9960-040
Exit Pupil
9.9 – 2.8 mm
Eye Relief
3.6"
Field of View
46 – 6 ft
Light Transmission
0.92
Magnification Range
2.8x - 20x
Parallax Adjustment
54 yards to infinity
Reticle Position
First Focal Plane
Elevation Turret Details
72 MOA
Scope Finish
Black
Scope Length
13.8"
Scope Objective Diameter
56mm
Scope Tube Size / Mount
30mm
Turret Adjustment (Click Value)
1/4 MOA
Scope Weight
29.3 oz
Windage Turret Details
46.5 MOA
Item Condition
New
Product Type
Riflescopes
