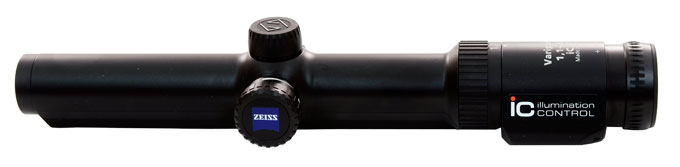

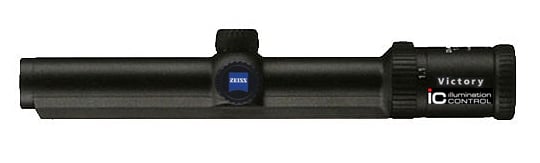

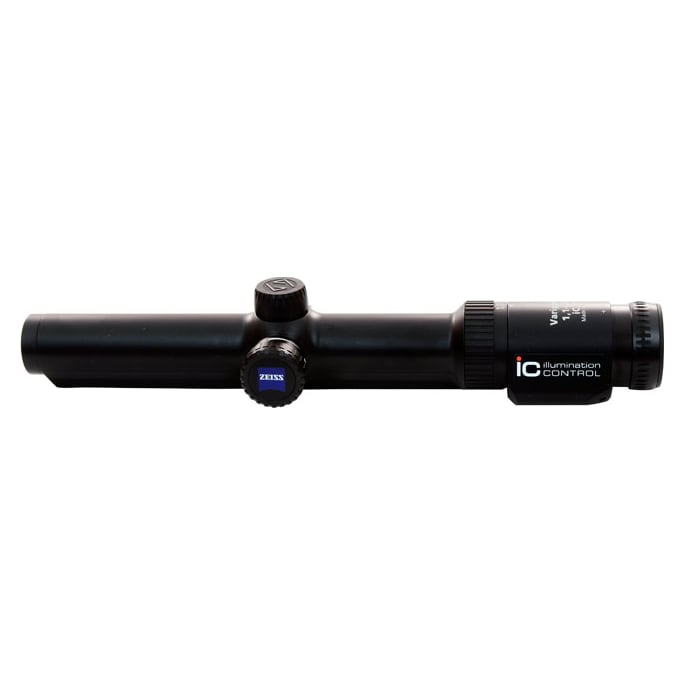

Zeiss Victory Varipoint 1.1-4x24mm T* #60 Illum Railmount Blaser IC Riflescope 521752-9960-000

Description

An excellent choice for your favorite brush rifle - the Victory Varipoint 1.1-4x24 iC T* from Zeiss sits low while it delivers a wide field-of-view. At 1.1x the ability to employ a ‘both-eyes-open’ method of sighting presents itself - this greatly improves situational awareness and the ability to execute that important follow-up shot. Dialing up to 4x magnifies distant targets enough for mid-to long-range shots on medium to large sized targets.

This particular Victory Varipoint riflescope is configured with a 30 mm tube, hunting turrets, an illuminated #60 reticle, Zeiss’ proprietary Rail Mount, and a matte black finish. It is designed to be mounted to a Blaser R93 or R8 iC rifle - it is not compatible with other rifles.

Optical Performance

FL Concept: fluoride ion glass to deliver brighter, sharper, and more saturated images
LotuTec coating: Sheds water, dirt, grease, grime. Lenses wipe clean without smearing
T* multicoating: reduces flare, improves contrast, increases light transmission
Advanced Optics System: Environmentally friendly lead and arsenic free glass yields exceptional resolution, contrast, color reproduction

Operational Details

Parallax correction: factory preset at 109 yards/100 m
Metric adjustments: 1 cm @ 100 m / 1/3 MOA W&E correction
Varipoint reticle system: the reticle is in the first focal plane, while the illuminated dot is in the second focal plane. This sophisticated configuration keeps the size of the dot constant while the reticle magnifies when increasing the magnification. The reticle’s brightness is controlled by a rotary knob located on the left side of the center tube.
Illuminated #60 Reticle: The illuminated #60 reticle features three thin posts with crosshairs with a single dot at the intersection of the cross hairs. This dot can be illuminated for precise shot placement in difficult lighting conditions. This configuration provides a clear line of sight while maintaining your ability to find your target quickly, under any lighting conditions.

Construction and Design

Low-profile hunting turrets
30 mm main-tube: machined from a single piece of aluminum. Nitrogen filled/o-ring sealed for waterproof and fogproof performance
This scope is designed for use with the Blaser R93 or R8 iC rifle. It is configured with a special illumination-control system that is not compatible with other rifles.
Zeiss Rail Mount: this mounting system does not employ traditional ring mounts to fit the scope to the firearm. Instead, a set of claw-type Zeiss Railmounts are attached to the firearm’s Weaver or Picatinny rail. These Railmounts interface with the toothed rail on the underside of the scope to ensure a solid repeatable mount.

Zeiss Varipoint Manual

Blaser R93 Rifle Specfications

Zeiss Varipoint Manual

Specifications

SKU

ZRBV110424-B60RAIL

UPC

740035001022

MPN

521752-9960-000

Eye Relief

3.54"

Field of View

108 -30.9'

Illuminated Reticle

Yes 2nd Image Plane

Magnification Range

1.1x to 4x

Reticle Position

First Focal Plane

Scope Finish

matte black

Scope Length

11.81"

Scope Objective Diameter

24mm

Reticle Details

#60 Illuminated Reticle

Scope Tube Size / Mount

Rail Mount

Turret Adjustment (Click Value)

1/3 moa per clcik

Scope Weight

16.83oz with rail

Item Condition

New

Product Type

Riflescopes

Scope Turret Rotation

Clockwise (CW)
