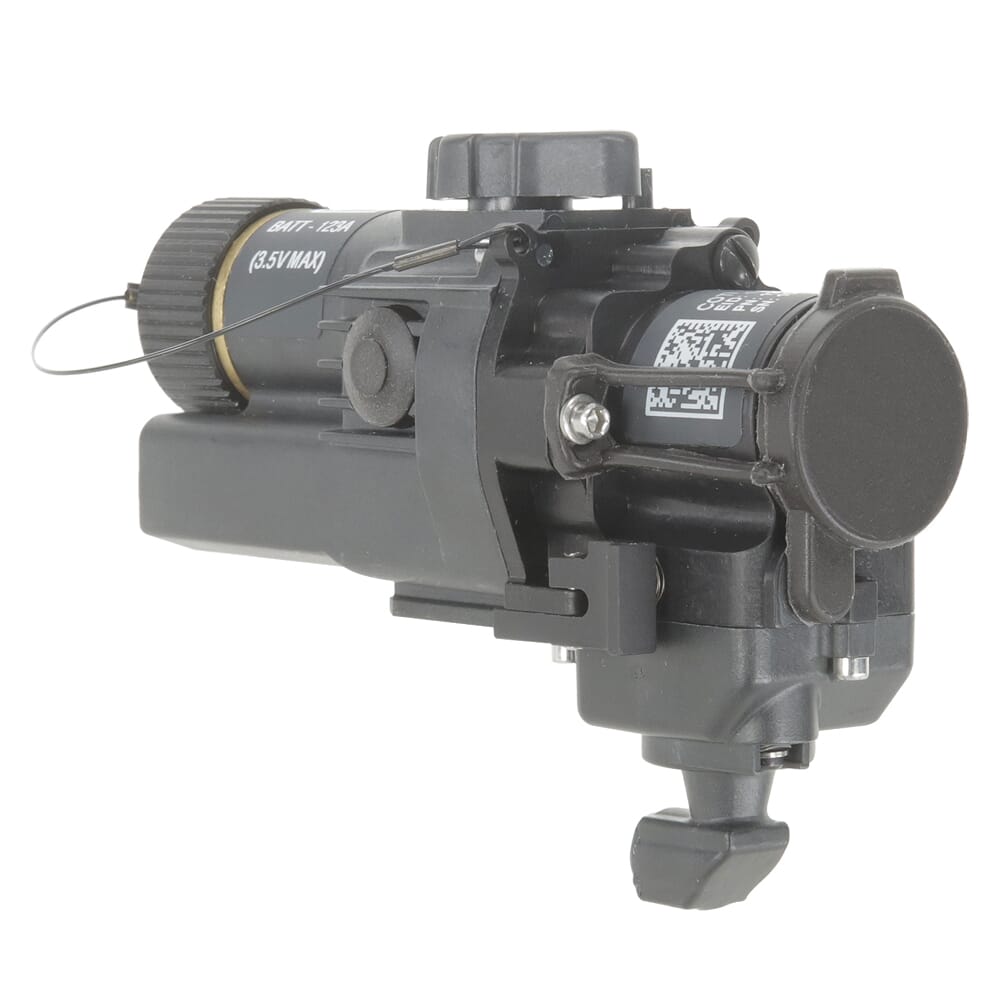

Vectronix USED COTI (Clip-On Thermal) Monocular Basic Equipment Kit 12712-3610-07 - Like New, NO MOUNTING BRACKET INCLUDED UA2608
USED

USED/MISC

Vectronix USED COTI (Clip-On Thermal) Monocular Basic Equipment Kit 12712-3610-07 - Like New, NO MOUNTING BRACKET INCLUDED UA2608 Includes: 12712-3400 Non-SOCOM COTI Assy 12712-5018 TACS Operator Manual (Non-SOCOM) 12712-5026 Quick Reference Card,

SKU:UA2608
(0)
Government Export Restriction

This item may be regulated for export by the U.S. Department of State or the US Department of Commerce. Please see our Export Policy

ITAR Product

By adding to cart, I understand, acknowledge, and agree to the Export Policy. I am a US Person, and I do not intend to export this product. Please see our Export Policy

Description

The Vectronix Clip-On Thermal Imager (COTI) was designed to provide its operator with the ultimate advantage in low/no light conditions by revealing far more than what is normally visible when using NVG devices. When paired with conventional night vision devices like the PVS-14, the COTI adds a layer of thermal detection that identifies both present and residual heat sources. Most night vision devices can only provide the operator with the ability to see in low light environments but that’s only part of the picture — the Vectronix COTI exposes potential targets that may be using some kind of cover that would normally defeat standard night vision capabilities. No matter the scenario, the COTI works with the NVG device to provide maximum situational awareness, allowing its operator to make well informed decisions on how the mission should proceed.

Specifications

SKU

UA2608

MPN

12712-3610-07

Dimensions

140mm x 38mm x 76mm (5.5" x 1.5" x 3")

Display

Micro Display with Adjustable Brightness

Field of View

20° Circular

Monocular Magnification

1x (optical)

2x (digital)

Operating Time

> 3.0 hours at 73° F

Polarity

White Hot or Black Hot Detection Modes Full Thermal, Patrol, and Outline Viewing Modes

Sensor Resolution

320x240 pixel 8-12μ wavelength

Optic Details

Sensor Type: Uncooled LWIR Microbolometer Fixed Focus Objective Aperture: f/1.15

Thermal Sensitivity

Detection: >500m

Recognition: >300m

Weight

150g (5.8 oz) Including Battery

Item Condition

Used

Product Type

Thermal
