Vectronix COTI (Clip-On Thermal) Monocular Basic Equipment Kit 12712-3610-07

SKU: 12712-3610-07-Vectronix-Kit

Vectronix COTI (Clip-On Thermal) Monocular Basic Equipment Kit 12712-3610-07

SKU: 12712-3610-07-Vectronix-Kit

List Price $5,500.00
Your Price $2,999.00
  You Save $2,501.00
iconThis item ships for free Offer valid within continental United States. Excludes firearms & ammunition.

Vectronix COTI

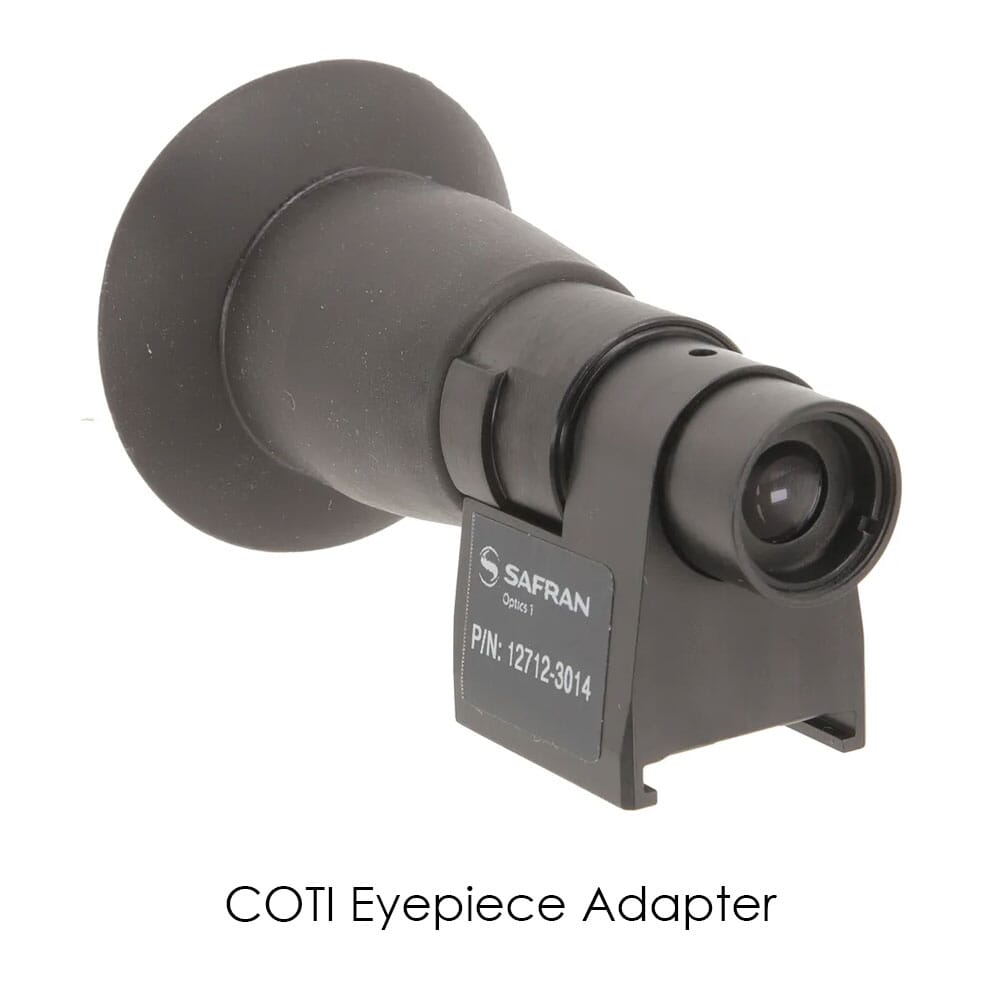

COTI Eyepiece (Needed For Monocular Functionality)
PVS-14
Export Restrictions

Government Export Restriction
This item may be regulated for export by the U.S. Department of State or the US Department of Commerce. Please see our Export Policy.

ITAR Restrictions

ITAR Product
By adding to cart, I understand, acknowledge, and agree to the Export Policy. I am a US Person, and I do not intend to export this product. Please see our Export Policy.


Description

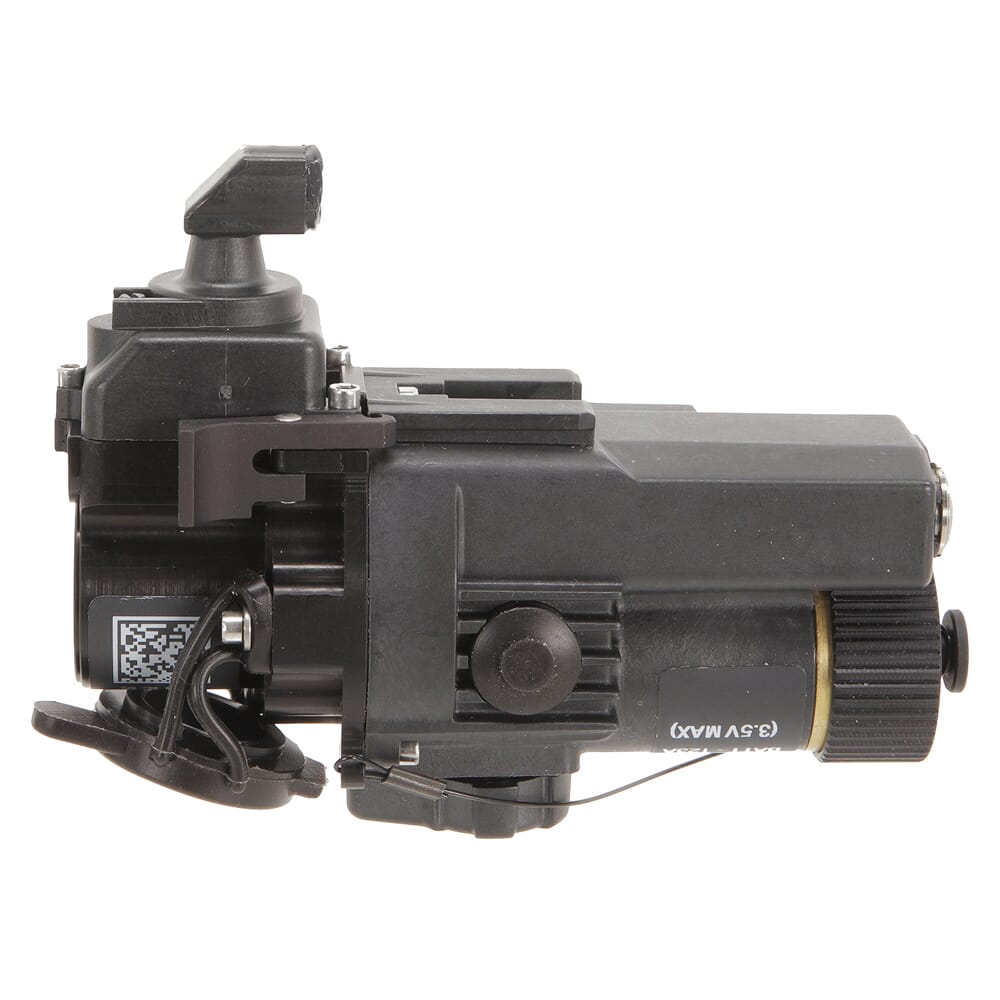

Vectronix COTI Clip-On Thermal Imager

The Vectronix Clip-On Thermal Imager (COTI) was designed to provide its operator with the ultimate advantage in low/no light conditions by revealing far more than what is normally visible when using NVG devices. When paired with conventional night vision devices like the PVS-14, the COTI adds a layer of thermal detection that identifies both present and residual heat sources. Most night vision devices can only provide the operator with the ability to see in low light environments but that’s only part of the picture — the Vectronix COTI exposes potential targets that may be using some kind of cover that would normally defeat standard night vision capabilities. No matter the scenario, the COTI works with the NVG device to provide maximum situational awareness, allowing its operator to make well informed decisions on how the mission should proceed.

Due to the compact size and weight of the Vectronix COTI, the device is an excellent standalone thermal monocular when used with the optional eyepiece. The low power consumption of the unit, optimal sensor technology, and high performance optical components integrate to provide a state-of-the-art thermal optic that is ideal for a wide range of applications.

The Vectronix COTI features two heat detection profiles (White Hot & Black Hot) as well as three viewing modes (Full Thermal, Patrol, and Outline). These options ensure that the COTI can be configured to meet the demands of any scenario, whether hand-held or weapon/helmet mounted.

Features of the Vectronix Clip-On Thermal Imager

  • Pocket Sized & Lightweight
  • Two Heat Detection Profiles: White Hot & Black Hot
  • Three Viewing Modes: Full Thermal, Patrol, & Outline
  • >3 Hours of Operating Time at 73° F
  • Wide 20° Circular Field of View

Strengths & Uses

  • Improves Situational Awarenesss In No-Light/Low Light Environments
  • Detects Thermal Signatures out to 500 Meters
  • Defeats Basic Camouflage
  • Detects Residual Heat
  • Multi-Role Capability

Package Includes

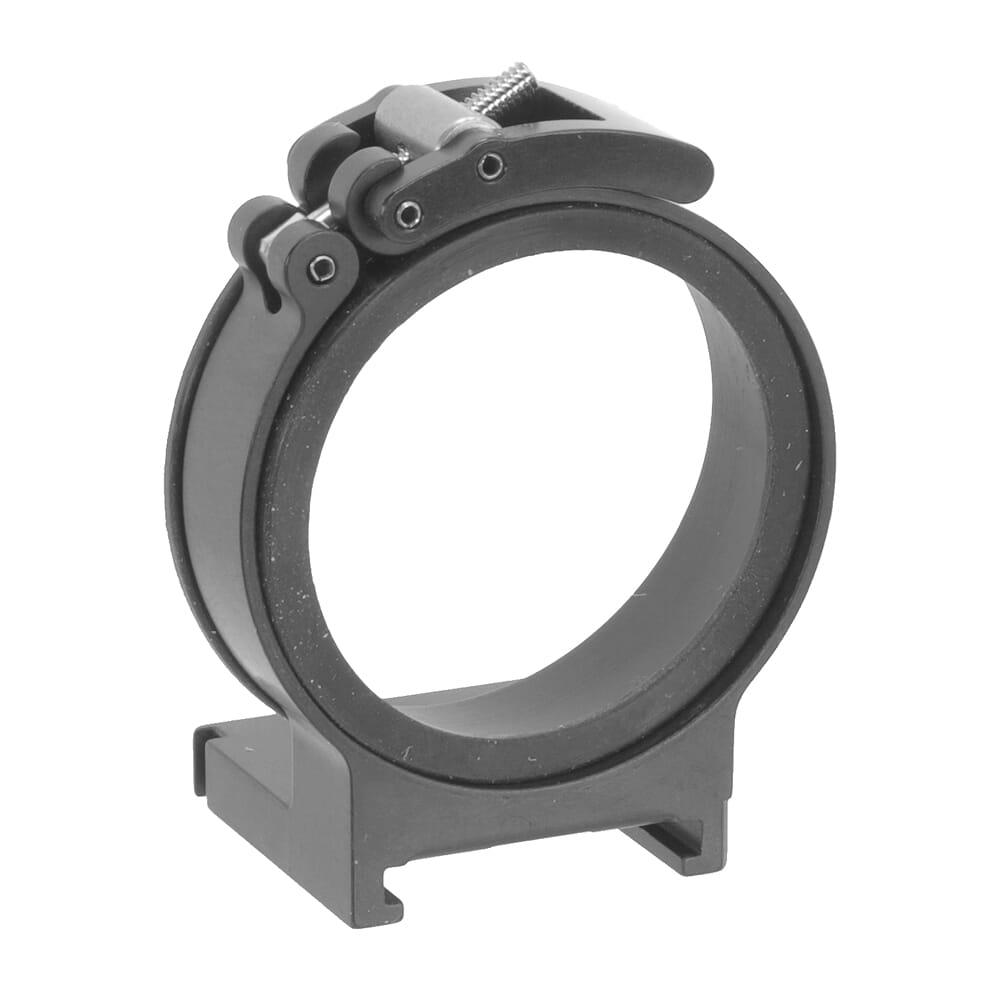

  • Mounting Bracket (PVS-7, -14, -15, -18, -23)
  • Operator Manual
  • Quick Reference Card
  • Lens Cloth
  • Black Soft Case 2" x 4" x 5"
  • CR123A Battery

Night Vision Devices PVS-14

Currently serving with US and NATO troops, the PVS-14 Gen III Night Vision Monocular is considered to be the all around best multi-functional night vision monocular available. The PVS-14 is a dual purpose night vision device; it can be used as a monocular (hand held or helmet mounted) or it can be weapon mounted and used in combination with NVG compatible reflex sights (weapon mount sold separately). The adjustable gain of the PVS-14 ensures that the operator is able to fine tune the device to optimized performance as ambient light conditions change.

In the helmet mounted configuration the PVS-14 allows the operator to keep the night adapted vision retained in one eye while utilizing the illuminated eyepiece of the device to enhance their situational awareness. The battery housing of the PVS-14 now includes a feature that powers the unit down when the device is stowed in the upright position on the helmet.

This PVS-14 unit features a white phosphor image intensifier tube with a min. 1760 FOM makes the unit more affordable. The tube provides a 16.2 min. signal to noise ratio and resolution of 57lp/mm min.

Included with PVS-14 Gen III Night Monocular Kits

  • Soft Carry Case
  • Manual
  • (2) AA Batteries
  • Demist Shield
  • Sacrificial Filter for Objective Lens
  • Head/Helmet Mount Adapter (J-arm)
  • Head-mount Assembly with 3 Brow Pads
  • Lens Tissue
  • Neck Cord
  • Eye-Cup
  • Front Lens Cap

Specifications

Dimensions:140mm x 38mm x 76mm (5.5" x 1.5" x 3")
Weight:150g (5.8 oz) Including Battery
Monocular Magnification:1x (optical)
2x (digital)
Field of View:20° Circular
Thermal Sensitivity:Detection: >500m
Recognition: >300m
Sensor Resolution:320x240 pixel 8-12μ wavelength
PolarityWhite Hot or Black Hot
Display:Micro Display with Adjustable Brightness
Red Hue Display When Used As Monocular
Battery Type(1) 3VDC Lithium CR123A
Operating Time> 3.0 hours at 73° F
Optic DetailsSensor Type: Uncooled LWIR Microbolometer Fixed Focus Objective Aperture: f/1.15
Item ConditionNew
Product TypeThermal
