Vectronix PLRF25C BT X2 W/Kestrel Upgrade 914304 914486 Like New Demo
This item may be regulated for export by the U.S. Department of State or the US Department of Commerce. Please see our Export Policy
By adding to cart, I understand, acknowledge, and agree to the Export Policy. I am a US Person, and I do not intend to export this product. Please see our Export Policy
Description
Like New Demo condition.
Includes Software Upgrade 914486 - Interoperability with Kestrel devices.

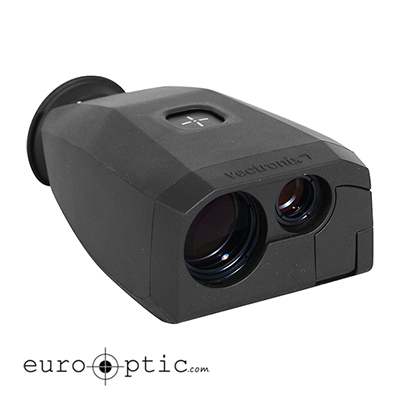

The Vectronix/Safran Optics 1 Pocket Laser Range Finder, or PLRF25, is a battlefield-tested ultra-long laser rangefinding device that is lightweight enough to be carried and operated by virtually anyone.
PLRF25C Features
- Subject to stringent quality controls and tested to MIL-STD-810 and MIL-STD-461
- Ranging distances effectively up to 6,000 meters
- 1-Button, single-handed operation
- Intuitive handling
- 6x Magnified optic with 6° Field Of View
- RS232 Standard Data Interface
- Bluetooth (SPP) Compatible
- Rockwell Collins DAGR/PLGR II/PLGR+96 External GPS Compatibility
Resources
- PLRF25C Technical Data Sheet - Available On Request
- PLRF25C User Manual - Available On Request
- PLRF25C Brochure
- Tripods/Monopods Technical Data Sheet - Available On Request
Specifications
SKU
914304-914486-Vec__LN
MPN
914304-914486
Dimensions
131mm x 88mm x 55mm / 5.2" x 3.5"x 2.2"
Range
5m to > 6,000m (3km on NATO target)
±2m (50m to 1,500m)
±5m (<50m / > 1,500m)
Battery Type
(1) 3V lithium battery type CR123A
> 5,000 Measurements Lifetime
Low-Battery Indicator
Beam Divergence
Typical 0.7 x 1.70 mil
Laser
1550 nm Class I Eye-Safe per IEC 60825-1 Ed 2.0
(2007-03)
Measurement Units
Distance: Meter, Yard, Feet
Angle: Milradian, Degree
Measuring Time
<0.4 Seconds
Monocular Details
6x Magnification
6°/106mil Field Of View
Fixed 30m -> ∞ Focus
Eye Relief: 24mm
Diopter Settings: +4 to -4
Angle Compensation
Distance
Azimuth (bearing, angle between north and object)
Inclination Angle
Azimuth accuracy ±10 mil / ±0.6°
tripod, typical ±5 mil / ±0.3°
Inclination accuracy ±3mil / ±0.2°
Weight
430g / 0.95lb (incl. battery)
500g / 1.1lb (w/shock absorbing cover)
Item Condition
Like New Demo
Product Type
Laser Rangefinders
