AGM F14-AP Fusion Tactical Monocular w/640x512 50Hz Thermal Sensor & Photonis Gen 2+ 1800-2300 FOM P43-Green Phosphor ITT 7152521111012F14

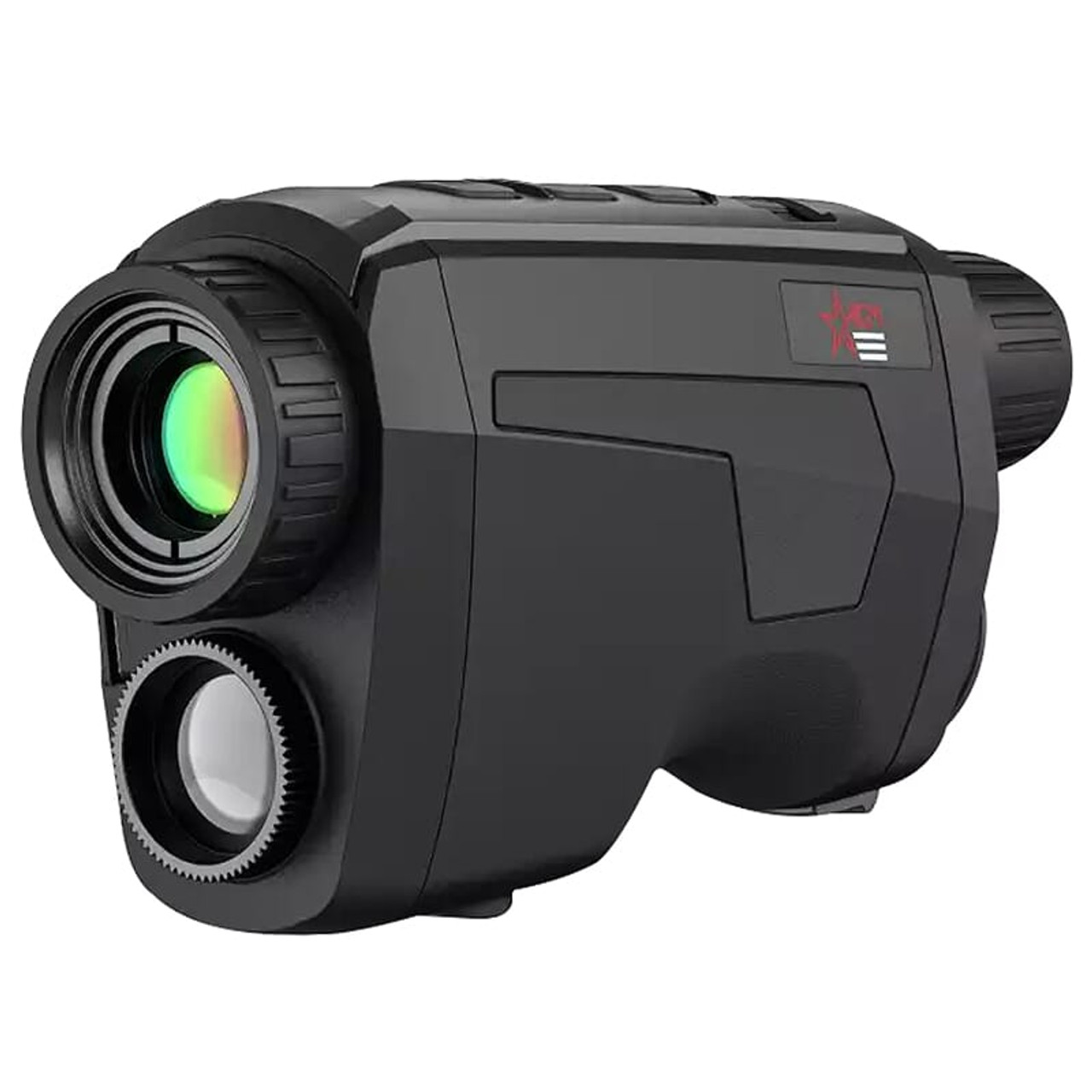

AMG’s F14-AP Fusion Tactical Monocular delivers unmatched night time performance in a compact package. This bi-spectrum optic combines I² light amplification with thermal imaging technology, allowing the operator to observe targets in extreme darkness such as moonless nights, as well as under adverse environmental conditions including smoke, fog, rain, and snow. This provides the operator with different variants of image view: thermal imaging, I² night vision, and enhanced fusion image which combines the two for easily adapting to different environmental conditions. The combination of night vision and thermal imaging makes the F14-AP Fusion Tactical Monocular perfect for police/military applications such as patrol, search and rescue, drug interdiction, and suspect apprehension, or for scenarios like nighttime predator hunting. The F14-AP is also equipped with a waterproof exterior to stand up to severe weather.

Other features of the F14-AP Fusion Tactical Monocular includes a Gen 2+ high-performance image intensifier tube (IIT) and a 12μm high-sensitivity thermal detector with 640x512 resolution. The F14-AP’s image brightness and image quality can be adjusted to the highest possible degree in changing lighting conditions thanks to a manual gain control, and the user-friendly and comfortable ergonomics makes operation simple and intuitive. In addition, the F14-AP Fusion Tactical Monocular can be used as a handheld device, or be mounted to a helmet for hands free operation.

Features and Specifications of the F14-AP Fusion Tactical Monocular

• Bi-spectrum image fusion and object highlight
• Detail enhancement and target recognition
• Selection of thermal view channel, I2 night vision channel, or both them combined with multiple fusion modes switchable
• 12 μm, 640x512 high-sensitivity thermal detector
• Digital zoom in thermal channel
• Azimuth and Pitch/Inclination Indication
• Brightness and contrast image adjustment
• Extra large exit pupil diameter (15mm)
• Low power consumption. Up to 8 hours continuous running in fusion mode and more then 60 hours operation in I2 night vision mode
• Aviation plug for external power supply and video output
• Waterproof
