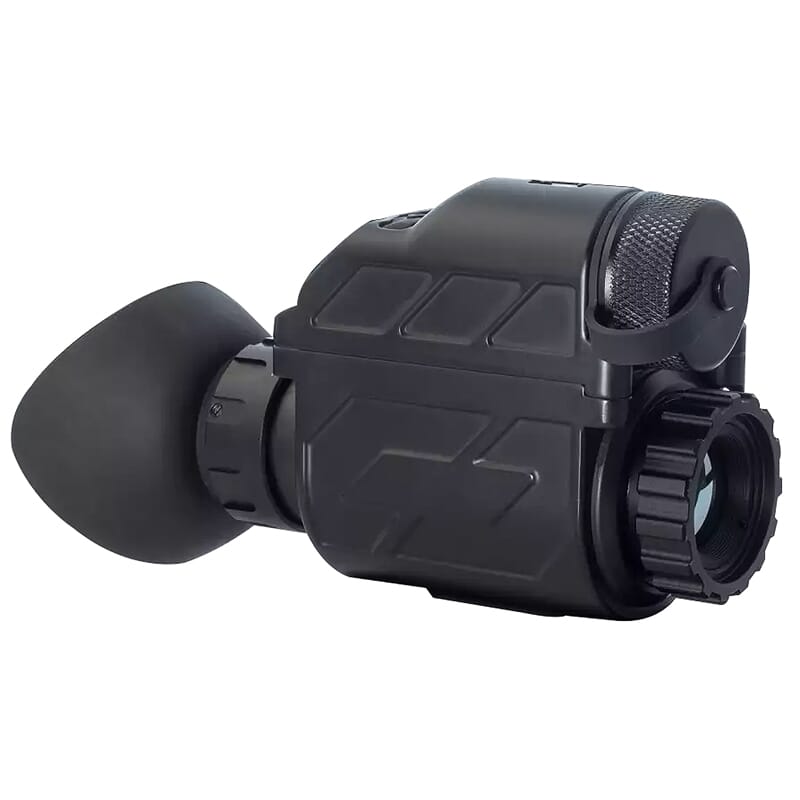

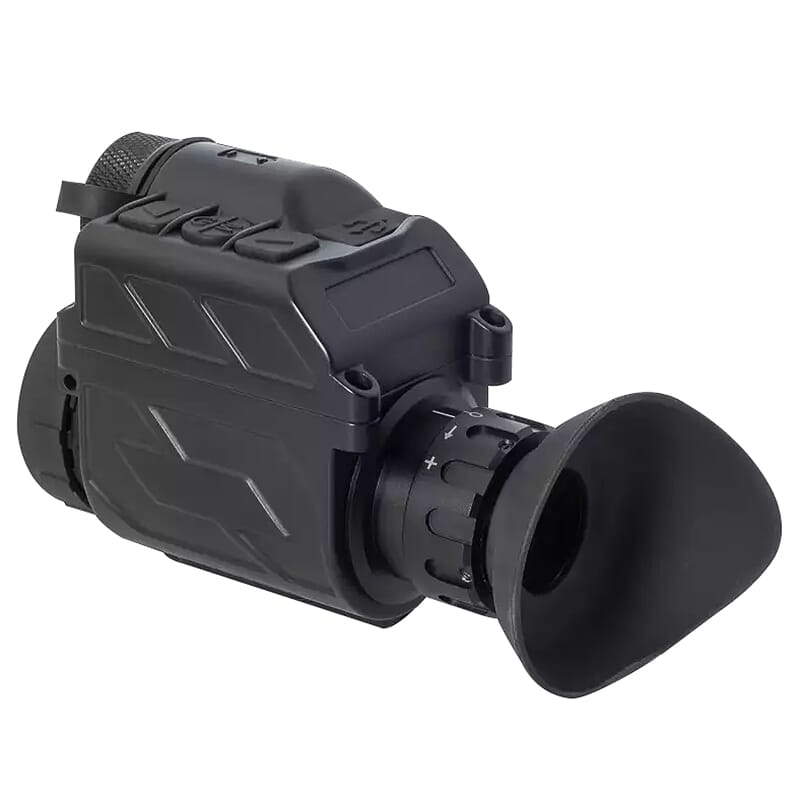

AGM StingIR-384 12um 384x288 50Hz Multi-Purpose Thermal Monocular w/Helmet Mount, Weapon Mount & Hard Case 3152451012ST11

AGM Global Vision

AGM StingIR-384 12um 384x288 50Hz Multi-Purpose Thermal Monocular w/Helmet Mount, Weapon Mount & Hard Case 3152451012ST11

SKU:3152451012ST11-AGM
(0)
Government Export Restriction

This item may be regulated for export by the U.S. Department of State or the US Department of Commerce. Please see our Export Policy

ITAR Product

By adding to cart, I understand, acknowledge, and agree to the Export Policy. I am a US Person, and I do not intend to export this product. Please see our Export Policy

Description

The StingIR Miniature Thermal Monocular provides exceptional nighttime observation in a compact package. It can be used an a handheld device or be mounted on a helmet or head-harness for handsfree operation. The StingIR comes equipped with a 12μm high-sensitivity uncooled VOx Microbolometer which can detect a man-sized source of heat at ranges up to 730 meters. These sources of heat are projected onto a 1024x768 OLED monitor, and can be displayed on four different color palettes: white hot, black hot, orange hot, and rainbow. Additionally, the user can select different Application Scenarios for different environments, these applications include default, outdoor, arctic, and rainforest. The default setting is the initial mode, and the outdoor setting is suitable for environments with fewer outdoor thermal targets to highlight. Arctic mode is optimized for environments with low ambient temperature (such as winter), and rainforest is intended for environments with high ambient temperature and humidity. Other features include an integrated digital compass and inclinometer, and an 4x digital zoom.

Features of the StingIR Miniature Thermal Monocular:

  • Can be used an a handheld device or be mounted on a helmet or head-harness
  • Four color palettes: white hot, black hot, orange hot, and rainbow
  • Application Scenarios: default, outdoor, arctic, and rainforest
  • Integrated digital compass and inclinometer
  • 12μm high-sensitivity uncooled VOx Microbolometer

Specifications

SKU

3152451012ST11-AGM

UPC

810027779830

MPN

3152451012ST11

Dimensions

5.5" × 2.4" × 2.0"

Display

1024×768 OLED

Field of View

16.3° x 12.3°

Monocular Magnification

Digital zoom: 4x

Operating Time

CR123A - up to 2 hours RCR123 - up to 3h 18650 - up to 5h

Sensor Resolution

384×288

Weight

7oz

Item Condition

New

Product Type

Thermal
