Armasight PVS-14+ Gen 3 Bravo M/L Sidekick Kit KPVS14GXSIDE3BB1

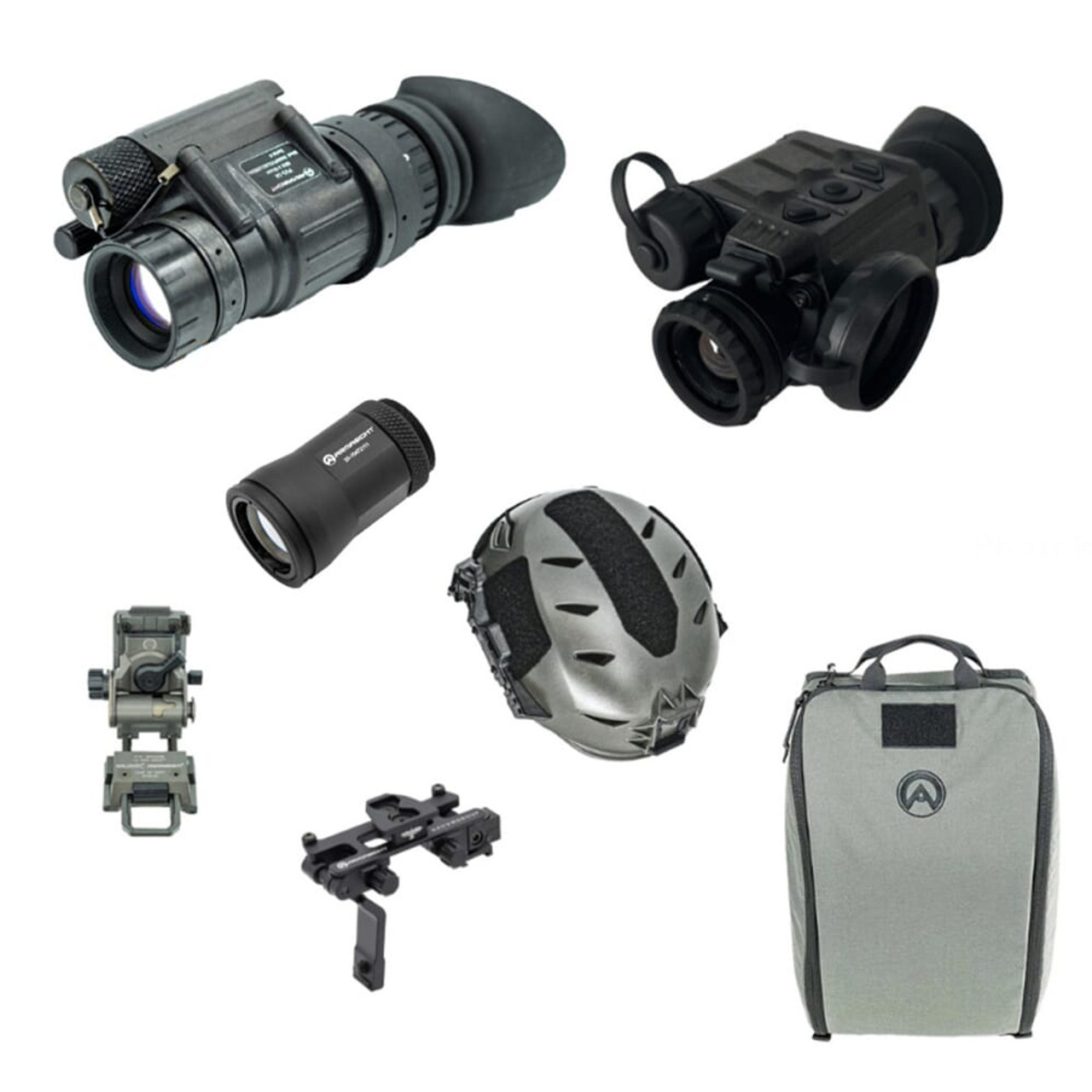

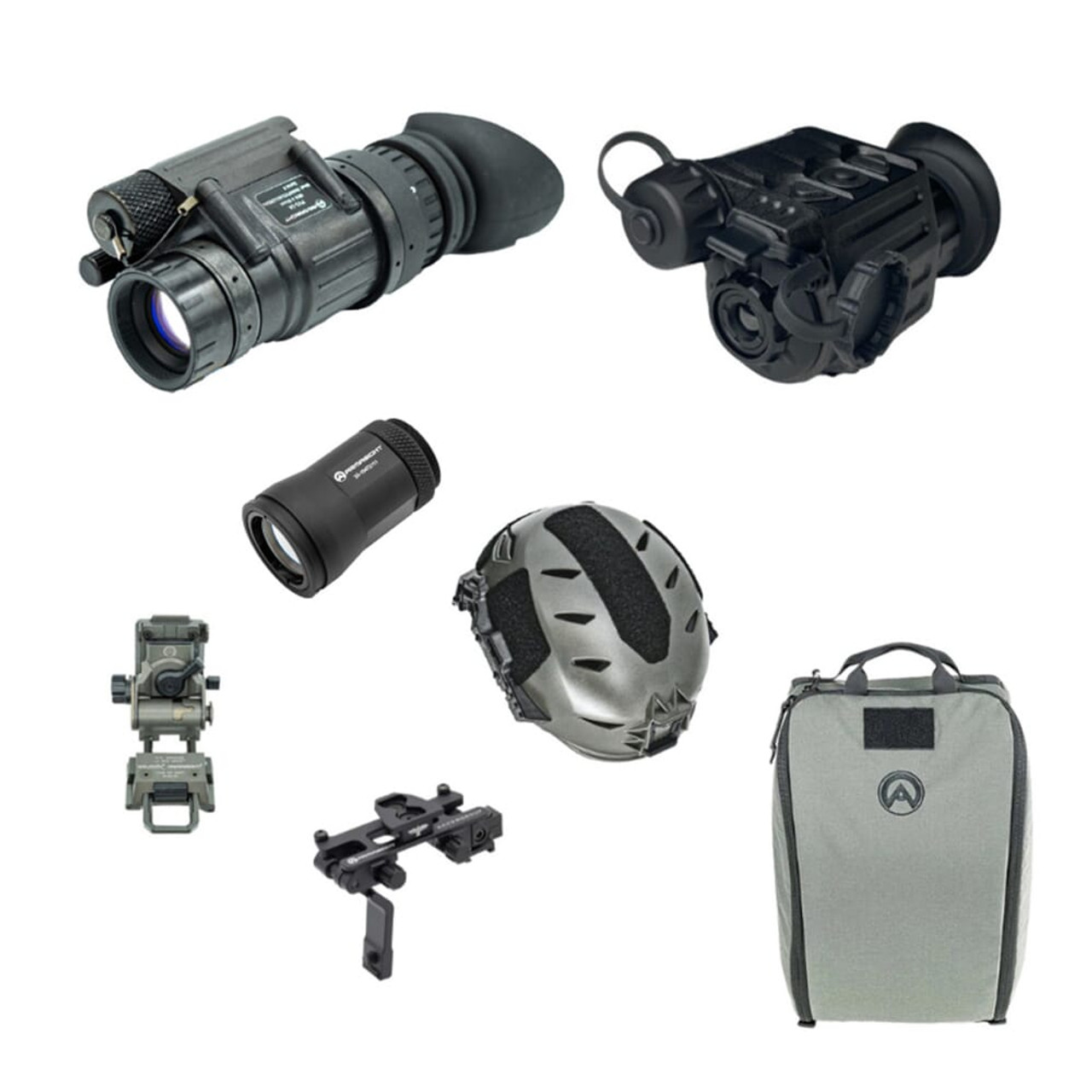

The Armasight PVS-14+ Gen 3 Pinnacle Premium & 320 Sidekick Kit comes fully equipped with everything needed for nighttime operations. This kit includes: (1) PVS-14 Gen 3 Pinnacle Night Vision Monocular, (1) 320 Sidekick Thermal Monocular, (1) Team Wendy EXFIL LTP Bump Helemt, (1) Armasight by OTTE Gear Night Vision Helmet Bag, (1) Armasight G95 NVG Mount by Wilcox Industries, and (1) Rayvn Group Modular Bridge Mount.

The PVS-14 Gen 3 Pinnacle Night Vision Monocular itself is an optimized version of Armasight’s Bravo Night Vision Device (NVD), offering significantly imporviced performance and image quality. The Gen 3 PVS-14 Monocular comes with your choice of a Bravo 1400+ FOM or High Performance 1800+ FOM image intensifier tubes (IIT). The Armasight PVS-14+ features a manual gain control, allowing you to adjust the brightness to your personal preference, and is adaptable for camera systems. Additionally, the PVS-14 Gen 3 Pinnacle can be used as either a handheld, head mounted, or helmet mounted NVD.

Just like the PVS-14 Gen 3, the included Sidekick 320 Thermal Monocular can be used as a handheld device, or can be mounted to a helmet for hands-free operation. A 50 Hz frame rate ensures the Sidekick 320 is more than capable of tracking moving objects, and provide smooth panningThe heart of the Sidekick 320 is Armasight’s exclusive ArmaCORE 320x240 12 um thermal core – a high-powered sensor that can detect a human-sized heat signature at 331 meters, recognize a human-sized heat signature at 85 meters, and identify a human-sized heat signature at 53 meters. The Sidekick 320 projects these heat sources onto a high definition XGA 1024x768 display and can be viewed on multiple color palettes. This allows the user to adapt the Sidekick 320 to their preferences or to specific environments, and image quality can be improved via integrated digital enhancement.

The included Team Wendy EXFIL LTP Bump Helemt provides impact protection and a stable platform for mounting the night vision and thermal devices. For greater comfort, the EXFIL LTP Helmet features a Zorbium foam liner as well as easily adjustable Cam Lock sliders and a micro-adjustable BOA Fit System. An EXFIL Rail 3.0 allows accessories to be mounted such as a EXFIL Ballistic Visor and the EXFIL Face Shield. The PVS-14 Gen 3 and Sidekick 320 attach to the helmet via the Rayvn Group Modular Bridge Mount and the G95 NVG Mount. The Rayvn Group Modular Bridge Mount attaches to the G95 Mount, which is then attached to the helmet. The Modular Bridge Mount features a fully articulating bridge system with a unique pod-on-rail design, allowing the user to slide pods into any position without the use of tools. This design also allows easy Inter-Pupillary Distance (IPD) adjustability as well as the ability to switch a single device setup from left to right eye or vice versa. Additionally, the G95 NVG Mount features a “break away” feature that disconnects NVD from the base to reduce the chance of neck injury.
