ATN

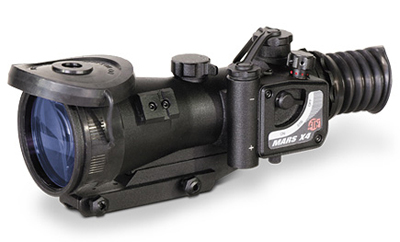

ATN MARS4x-WPT Night Vision Weapon Sight NVWSMRS4WP
SKU:NVWSMRS4WP
(0)
Government Export Restriction
This item may be regulated for export by the U.S. Department of State or the US Department of Commerce. Please see our Export Policy
ITAR Product
By adding to cart, I understand, acknowledge, and agree to the Export Policy. I am a US Person, and I do not intend to export this product. Please see our Export Policy
Description
3rd Gen. Image Intensifier Tubes
Battle proven Generation 3 technology. Our Gen. 3 units provide exceptional quality image resolution under varying light conditions. The units with 3rd Gen. Image Intensifier Tubes have a typical resolution of 64 lp/mm and a typical Signal-to-Noise Ratio of 20.
Similar to all of the ATN Aries Scopes, the ATN MARS4x-3 features only the purest grades of heavy glass and computer-aided optical designs to create multi-element, high-speed, multi-coated lenses for ultra-fast light transmission and resolution beyond current military standards.
All optical lenses on the ATN MARS4x-3 are individually fitted and calibrated to achieve optimum performance.
Battle proven Generation 3 technology. Our Gen. 3 units provide exceptional quality image resolution under varying light conditions. The units with 3rd Gen. Image Intensifier Tubes have a typical resolution of 64 lp/mm and a typical Signal-to-Noise Ratio of 20.
Description
ATN Mars Night Vision Weapon Scopes - the world’s largest line of professional Night Vision Sights – has a flagship – the ATN MARS4x-3. Inspired by ATN’s quest for technical perfection and named after the Roman God of War, the ATN MARS4x-3 NV Riflescoperepresents the absolute latest in the world of Night Vision Equipment.Similar to all of the ATN Aries Scopes, the ATN MARS4x-3 features only the purest grades of heavy glass and computer-aided optical designs to create multi-element, high-speed, multi-coated lenses for ultra-fast light transmission and resolution beyond current military standards.
All optical lenses on the ATN MARS4x-3 are individually fitted and calibrated to achieve optimum performance.
Features
- Superior quality Multi-coated all-glass optics
- Precision windage and elevation adjustments
- Tactical digital remote control
- Waterproof and submersible to 66 feet for 1 hour
- Included mount for Picatinny or 7/8" Weaver-style rail
- Unit accepts either, (1) 3V CR123A or (1) AA battery
- Nitrogen-purged for resistance to internal fogging
- Free Mil-spec hard case included
- Limited Two-Year Warranty
Specification
| Total Darkness IR System | Yes |
| ‘SMART’ Technology | No |
| IIT Generation | 3 |
| Resolution | 64 lp/mm |
| Magnification | 4x |
| Lens System | F 1.5, 108 mm |
| Proshield Lens Coating | Yes |
| FOV | 9° |
| Exit Pupil | 7 mm |
| Eye Relief | 45 mm |
| Range of Focus | 10 m to infinity |
| Diopter Adjustment | -5 to +5 |
| Controls | Direct |
| Remote Control | Yes |
| Automatic Brightness Control | Yes |
| Bright Light Cut-off | Yes |
| Infrared Illuminator | Detachable IR450 |
| IR Indicator | Yes |
| Low Battery Indicator | Yes (in FOV) |
| Power Supply | 1x1.5 V AA type battery or 1x3 V CR123A type battery |
| Battery Life | 55 hours (3 V) 40 hours (1.5 V) |
| Reticle System | Red or Amber on Green |
| Windage & Elewation Adjustment | 1/4 MOA |
| Environmental Rating | Waterproof |
| MIL-STD-810 | Yes |
| Operating Temperature | -51 to +45°C |
| Storage Temperature | -55 to +70°C |
| Dimensions | 235x90x95 mm 9.3"x3.5"x3.7" |
| Weight | 1.3 kg / 2.9 lbs |
| Warranty | 2 years |
Specifications
SKU
NVWSMRS4WP
UPC
658175900047
MPN
NVWSMRS4WP
Dimensions
235x90x95mm (9.3"x3.5"x3.7")
Exit Pupil
7mm
Field of View
9°
IIT Generation
White Phosphor Technology
Total Darkness IR System
Yes
Weight
1.3 kg / 2.9 lbs
Item Condition
New
Product Type
Reflex Sight/Red Dot
