In
ATN’s continuing effort to supply our clients with cutting edge
Night Vision Systems, we are proud to introduce a new line of select units based on
ATN White Phosphor Technology (WPT).
Studies show that scenes at night time appear remarkably more natural in black and white versus the usual green. B&W provides clearer information about contrast, shapes and shadows.
ATN’s White Phosphor Technology provides users with this natural
B&W Night Vision Image. The majority of the
WPT performance characteristics are on par or better than the latest Gallium Arsenide based Image Intensifier Tubes.
WPT specifications include typical resolution of 60lp/mm (with some over 74lp/mm) and Signal-to-Noise figures as high as 25.
Operators who tested units, that use
ATN WPT, reported a significantly better degree of detail, overall contrast, full-moon similarity and range of shades.
WPT provides more discriminating shades of intensity between white and black than between green and black resulting in better contrast and depth perception than when compared to green phosphor NVGs.
Description

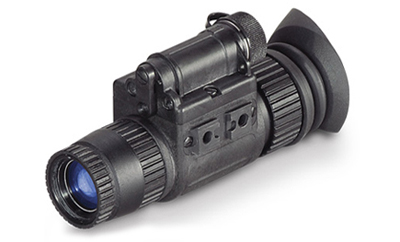

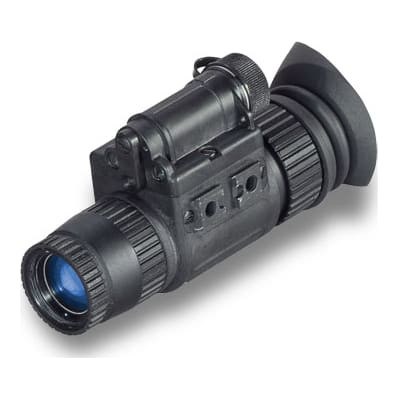

The
ATN NVM14-WPT is a high-performance, versatile Night Vision Device. It is designed to be multifunctional: hand-held as a monocular, head-mounted/helmet-mounted as a single-eye Goggles, or weapon-mounted as a Night Vision Sight. The
ATN NVM14-WPT has an optional flip-up headset or helmet mount with an automatic off-feature. The automatic off-feature turns the unit off when it is flipped-up out of the viewing position.
The
ATN NVM14-WPT has a host of additional features such as a built-in IR Illuminator with rotary lens to select between IR Spot or Flood Beam as well as a built-in automatic high-light cutoff to protect the Image Intensifier. The
ATN NVM14-WPT also includes a bright light and low-battery warning indicators, built into the viewing area of the eyepiece.
The
ATN NVM14-WPT Night Vision System is compatible with most weapons, IR Laser aiming/illuminating Devices and standard collimated Reflex Scopes. Optional: System/IIT service life recorder - feature, that lets you measure the hours of operation (within one minute), that have been used on the system.
*WPT is a registered trademark of American Technology Network, Corp.
ATN PS40-WPT Spec Sheet
ATN PS40-WPT User Guide
Features
- Compact and rugged design
- Waterproof
- Head or helmet mountable for hands-free usage
- Weapon mountable
- Auto Brightness Control
- Bright Light Cut-off
- Total Darkness Technology with built-in infrared illuminator and flood lens
- Compatible with most IR lasers
- Adaptable for use with cameras
- Ergonomic, simple, easy-to-operate controls
- Utilizes either a 123А Lithium battery or an AA Alkaline
- Battery Adapter included
- Optionally available patented Life Tracker System for measuring hours of operation
- Limited two-year warranty
Specification
| Total Darkness IR System | Yes |
| ‘SMART’ Technology | No |
| Multi-Purpose System | Yes |
| IIT Generation | WPT™ |
| Resolution | 60-74 lp/mm |
| Magnification | 1x |
| Lens System | F1.2, 27 mm |
| Proshield Lens Coating | Yes |
| FOV | 40° |
| Range of Focus | 0.25 m to infinity |
| Diopter Adjustment | -6 to +2 |
| Controls | Digital |
| Automatic Brightness Control | Yes |
| Bright Light Cut-off | Yes |
| Automatic Shut-off System | Yes |
| Infrared Illuminator | Yes (Built-in with flood lens) |
| IR Indicator | Yes (in FOV) |
| Low Battery Indicator | Yes (in FOV) |
| Power Supply | (1) 3 V lithium, or (1) AA Alkaline |
| Battery Life | 50 hrs |
| Environmental Rating | Waterproof |
| MIL-STD-810 | Complies |
| Operating Temperature | -40 to +50°C |
| Storage Temperature | -50 to +70°C |
| Dimensions | 120x49x69 mm
4.7"x1.9"x2.7" |
| Weight | 0.34 kg / 0.75 lbs |
| Warranty | 2 years |
