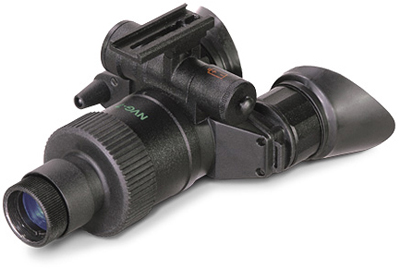

ATN NVG7-3A Night Vision Goggle Review

ATN NVG7-3A Spec Sheet

ATN NVG7-3A User Guide

ATN NVG7-3A Night Vision Goggle Features

• Lightweight, compact rugged Goggle system
• Multi-purpose: Hand-held, head-mounted or helmetmounted
• Comfortable, flip-up headgear
• Multi-coated all-glass optics
• Wide angle infrared illuminator
• Optional 3x, 5x and 8x lenses available
• Waterproof
• Limited Two-Year Warranty

ATN NVG7-3A Night Vision Goggle Specifications

• Total Darkness IR System: Yes
• ‘SMART’ Technology: No
• Multi-Purpose System: No
• IIT Generation: 3
• Photocathode Type: Think Film GaAs
• Resolution: 64-72 lp/mm
• Signal to Noise Ratio: 26 Typical
• Figure of Merit: 1800 Typical
• MTTF - Mean Time Before Failure: 10,000 hours
• Magnification: 1x
• Lens System: F1.2, 26 mm
• Proshield Lens Coating: Yes
• FOV: 40°
• Range of Focus: 0.25 m to infinity
• Diopter Adjustment: -5 to +5
• Controls: Digital
• Automatic Brightness Control: Yes
• Bright Light Cut-off: Yes
• Automatic Shut-off System: Yes
• Infrared Illuminator: Yes
• IR Indicator: Yes (in FOV)
• Low Battery Indicator: Yes (in FOV)
• Power Supply: 1x1.5 V AA type battery or 1x3 V CR123A type battery
• Battery Life: 50 hrs
• Environmental Rating: Weather and fog resistant
• MIL-STD-810: Complies
• Operating Temperature: -40 to +50°C
• Storage Temperature: -50 to +70°C
• Dimensions: 172 x 62 x 102 mm (6.7" x 2.5" x 4.0")
• Weight: 0.45 kg / 0.9 lbs
• Warranty: 2 years
