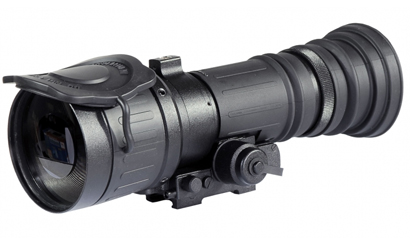

ATN PS40-4 - Day Night Weapon Sight NVDNPS4040

Representing the latest advancement in Night Vision Optics, the ATN PS40-4 gives your Daytime Scope Night Vision capability in a matter of seconds. The ATN PS40-4 mounts in front of a Daytime Scope to enable nighttime operation. No shift of impact, no need to re-zero nor change of eye relief occurs. The ATN PS40-4 uses the latest in image intensifier tube technology for outstanding resolution and performance.

Precision optical alignment is essential for a front sight system to work properly. This is why each ATN PS40-4 is individually tested and aligned on an optical scale by our engineers to provide perfect alignment. The ATN PS40-4 is one of the most compact and lightweight NV systems in its class, at only 840 grams.

ATN PS40-4 Spec Sheet

ATN PS40-4 User Guide

• Easily changes daytime scope to Night Vision
• Mounts in front of daytime scope, no re-zeroing required
• Multi-coated all-glass optics
• Fast catadioptic front lens system
• Large 40 mm eyepiece/output window
• Lightweight and rugged
• Comes with Quick Release Mount
• Optional 7/8" weaver mount
• Optional Scope Mounting System attaches the PS40 unit to the objective of the day scope (47-50; 56-58.7 mm diameter)
• Automatic brightness control
• Limited Two-Year Warranty



ATN PS40-4 Specs:

• Total Darkness IR System = No
• "SMART" Technology = No
• IIT Generation = 4
• Photocathode Type = Filmless GaAs
• Resolution = 64-72 lp/mm
• Signal to noise ratio = 25-30
• Figure of merit = 2000 typical
• Magnification = 1x
• Lens System = F1.44, 80 mm
• Proshield Lens Coating = Yes
• FOV = 12°
• Exit Pupil = 40 mm
• Range of Focus = 10 m to infinity
• Diopter Adjustment = No
• Controls = Direct
• Remote Control = Yes
• Automatic Brightness Control = Yes
• Bright Light Cut-off = Yes
• Infrared Illuminator = No
• IR Indicator = No
• Low Battery Indicator = Yes
• Power Supply = 1x1.5 V AA type battery or 1x3 V CR123A type battery
• Battery Life = 50 hours ( 3 V ) 25 hours (1. 5 V )
• Reticle System = No
• Windage & Elewation Adjustment = No
• Environmental Rating = Waterproof
• MIL-STD-810 = Yes
• Operating Temperature = -20 to +50°C
• Storage Temperature = -50 to +50°C
• Dimensions = 177 x 85 x 83 mm 7.0" x 3.4" x 3.3"
• Weight = 0.84 kg / 1.85 lbs
• Warranty = 2 years
