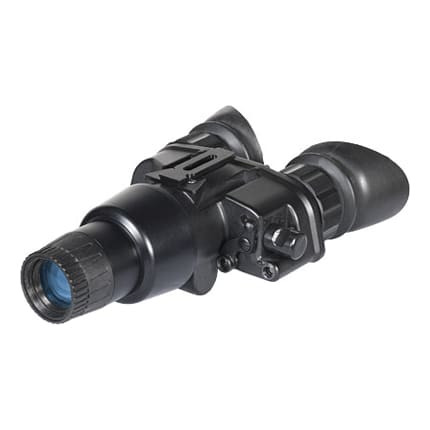

ATN PVS7-3P Pinnacle Night Vision Goggles NVGOPVS73P

ATN PVS7-3P Night Vision Goggle Review

The ATN PVS7 Night Vision Goggles is a robust, dependable, high-performance Night Vision System. The ATN PVS7 Night Vision Device is identical to the ATN AN/PVS-7 model adopted as a standard issue to U.S. Army ground troops, designed to assist viewing provide reliable service in the most unfavorable conditions.

Just like the AN/PVS-7, the ATN PVS7 comes complete with a lightweight, fully adjustable military head strap that allows for comfortable long-term use. Full U.S. Mil-Spec body with Goggles assembly, soft carrying case, demist shield, sacrificial filter for objective lenses, shoulder strap, head-mount assembly with 3 brow pads, lens tissue, neck cord and front lens cap. The ATN PVS7 is an excellent choice for Law Enforcement such as SWAT and Special Operations teams.

ATN PVS7-3P Spec Sheet

ATN PVS7-3P User Guide

ATN PVS7-3P Night Vision Goggle Features

• Standard military issue
• Multi-purpose: Hand-held, head-mounted or helmetmounted
• Lightweight
• Equipped with momentary or continuous IR switch
• Internal low battery and IR indicators
• Combat proven
• Waterproof
• Limited Two-Year Warranty

ATN PVS7-3P Night Vision Goggle Specifications

• ‘SMART’ Technology: No
• Multi-Purpose System: No
• Photocathode Type: Thin Film/Auto-Gated
• Resolution: 64-72 lp/mm
• Signal to Noise Ratio: 24 Typical
• Figure of Merit: 1800 Typical
• MTTF - Mean Time Before Failure: 10,000 hours
• Magnification: 1x
• Photocathode sensitivity: 2000-2800
• Lens System: F1.2, 26 mm
• Proshield Lens Coating: Yes
• Range of Focus: 0.25 m to infinity
• Diopter Adjustment: -6 to +2
• Controls: Direct
• Automatic Brightness Control: Yes
• Bright Light Cut-off: Yes
• Automatic Shut-off System: Yes
• Infrared Illuminator: Yes - Built in Flood
• IR Indicator: Yes (in FOV)
• Low Battery Indicator: Yes (in FOV)
• Power Supply: 2x1.5 V AA type battery or 1x3 V BA-5567/U type battery
• Battery Life: 60 hrs without infrared
• Environmental Rating: Waterproof
• MIL-STD-810: Complies
• Operating Temperature: -40 to +50°C
• Storage Temperature: -50 to +70°C
• Warranty: 2 years
