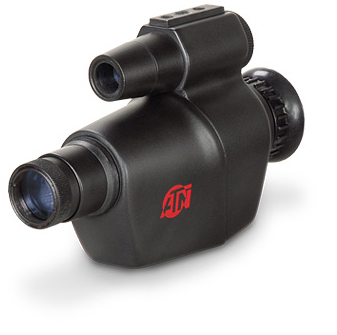

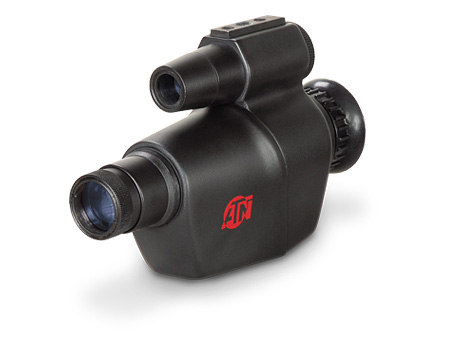

ATN NVG0VIPR10 Viper Modular Goggle System

The ATN Viper is the smallest and lightest Night Vision Goggles in the market. These hands-free top-quality Night Vision Goggles provide realistic 1:1 magnification, excellent comfort and are easy to operate. This Night Vision Scope from the line of ATN Night Vision equipment is an excellent alternative to the Night Vision Binocular. The ATN Viper is head-mountable Night Vision Goggles solution for Fishing, Paintball, Scouting or Security.

ATN Viper Spec Sheet

ATN Viper User Guide

description

If a hands free Night Vision Goggle System is what you need, we, at ATN have the unit for you. We would like to introduce you to the ATN Viper Night Vision Goggles. Designed primarily to be a Goggles System for hands free application, this unit can also be used as a compact Monocular or can be attached to a camera for the nighttime photography. This high-resolution 1st Gen.+ Night Vision unit comes with 1x magnification, but can be optional 4x or 8x. Surprisingly, even though we gave the ATN Viper a heavy coated glass lens, we were still able to keep its weight down to only nine ounces. So for any activity you plan on doing which requires Night Vision and hands free operation, the ATN Viper delivers superior results.

FEATURES

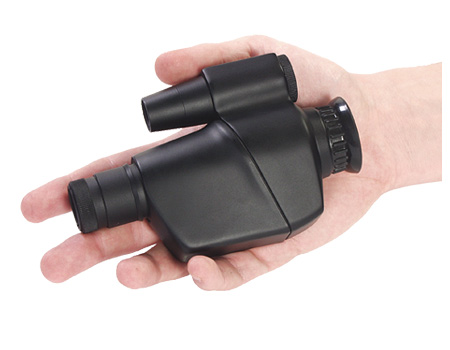

• The smallest night vision goggle on the market
• Hands-free usage
• Simple one switch operation
• High resolution Gen. 1+ Image Intensifier Tube
• Built-in Flood infrared illuminator

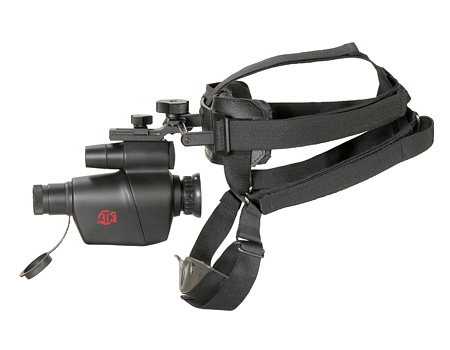

• Comfortable, easy-to-adjust headgear
• Flip-up and dual side headgear
• Lightweight
• Optional Doubler & Lens allows 4x to 8x magnification
• Water and fog resistant
• Limited Two-Year Warranty

Specification

Total Darkness IR System	Yes
‘SMART’ Technology	No
Multi-Purpose System	No
IIT Generation	1+
Resolution	40 lp/mm
Magnification	1x
Lens System	F1.4, 35 mm
Proshield Lens Coating	Yes
FOV	20°
Range of Focus	1 m to infinity
Diopter Adjustment	-5 to +5
Controls	Direct
Automatic Brightness Control	No
Bright Light Cut-off	No
Automatic Shut-off System	No
Infrared Illuminator	Yes
IR Indicator	No
Low Battery Indicator	No
Power Supply	1 x 3 V CR123A type battery
Battery Life	20 hrs
Environmental Rating	Weather and fog resistant
MIL-STD-810	No
Operating Temperature	-40 to +50°C
Storage Temperature	-50 to +70°C
Dimensions	145 x 95 x 48 mm 5.7" x 3.7" x 1.9"
Weight	0.3 kg / 0.65 lbs
Warranty	2 years
