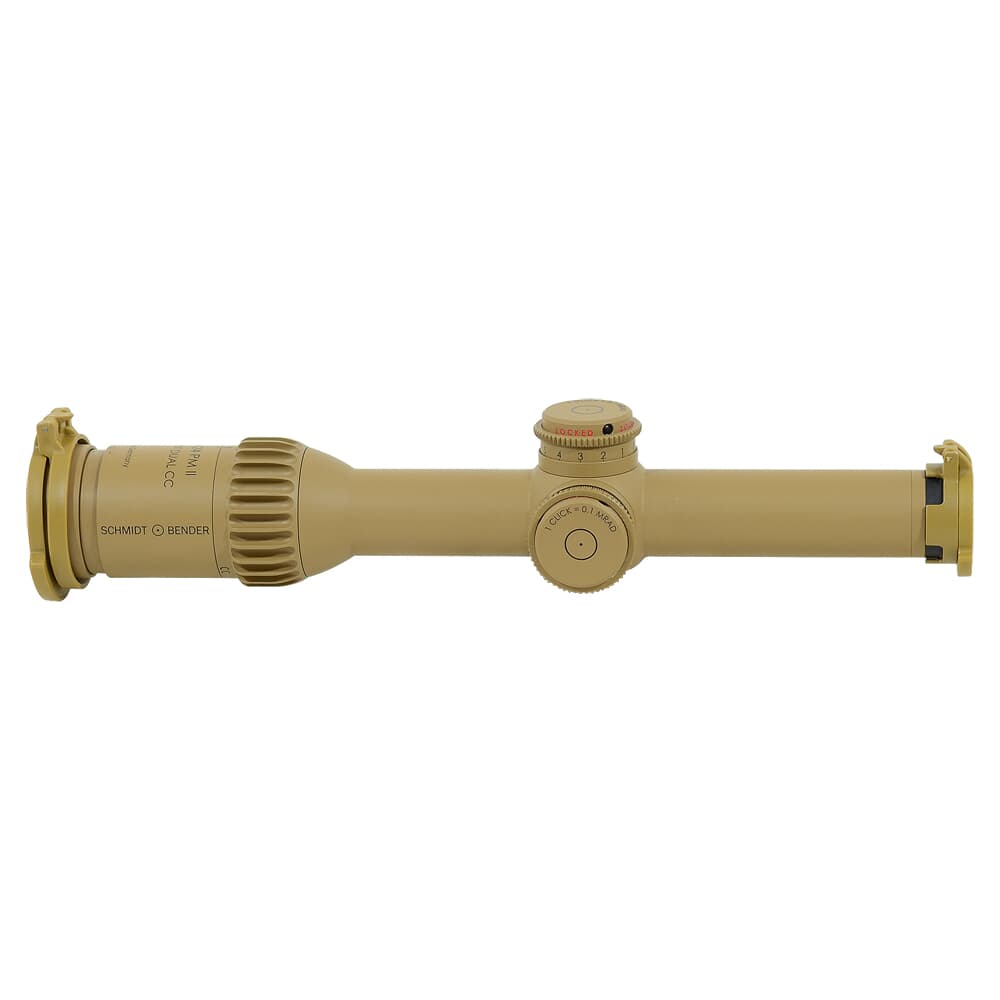

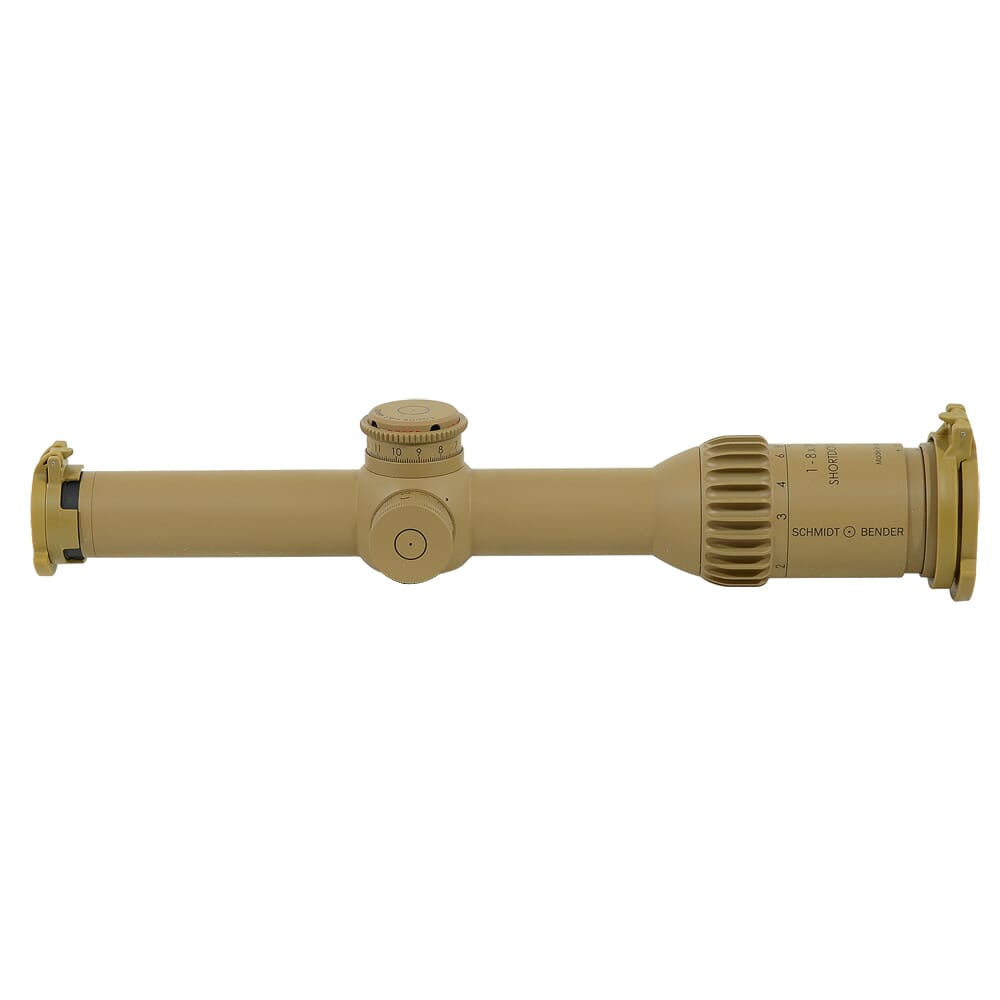

Schmidt Bender's PM II 1-8x24 ShortDot Dual CC riflescope represents the pinnacle of modern combat scope technology. The scope features true 1x low magnification (also known as close combat mode) for fast target acquisition in close quarters and 8x high magnification for easily engaging targets out to 500 yards. At low magnification the scope is parallax free to 7 meters and is parallax free out to 100 meters when magnification is increased.
The primary feature of the 1-8x24 ShortDot Dual CC riflescope is the dual focal plane reticles, the FlashDot red dot is located on the second focal plan allowing for a consistent dot size cross all magnifications, while the MilDot reticle sits on the first focal plane helping you make more accurate shots at longer ranges.
UA4431
UA4431
9.8-3.0 mm
90mm/3.54"
35.3 - 4.9m / 100m
Yes
1-8x
100m Fix
Dual Focal Plane
0 to 101cm

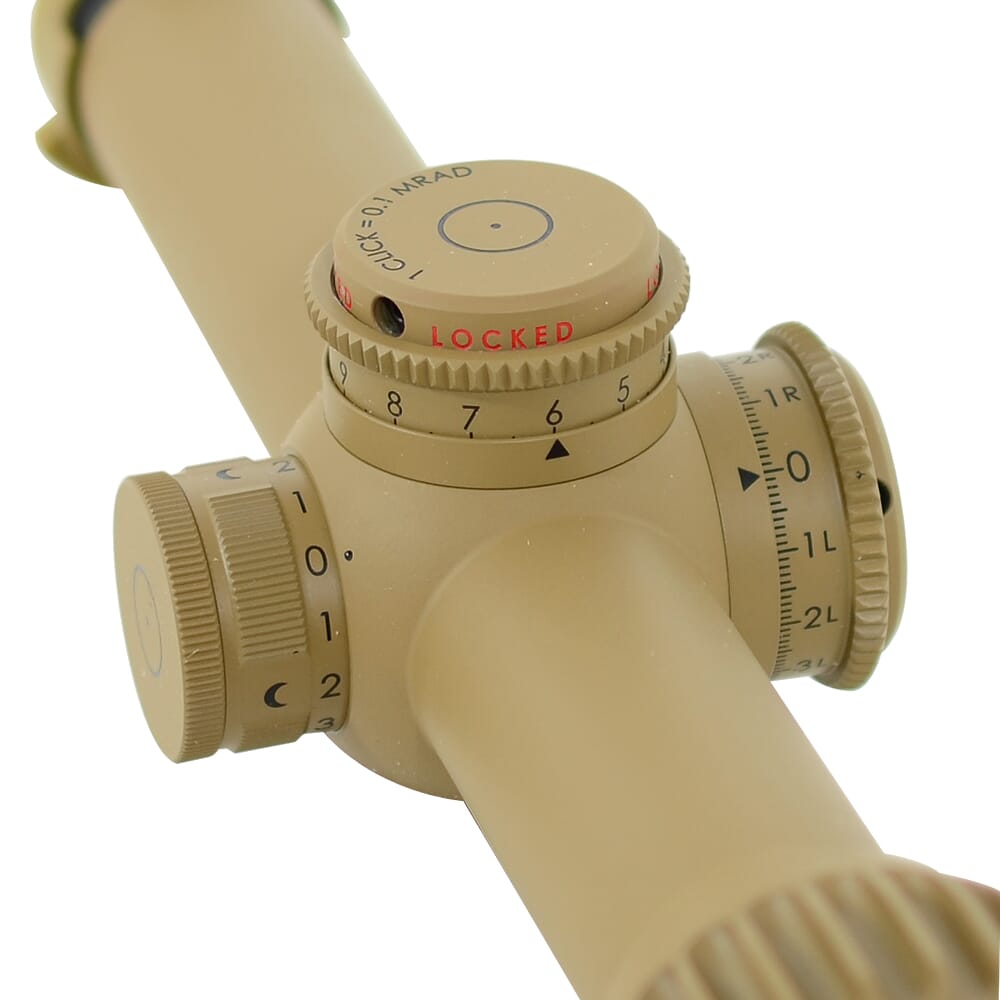

ST LT MTC (Single Turn, Locking Turret, More Tactile Clicks)
Pantone 7504M
293mm/11.54"
24mm
MDR-T6 Reticle in 1st Focal Plane
FlashDot in 2nd Focal Plane
30mm
1cm
22.54oz
ST ZS (Single Turn; Zero Stop)
±6 mrad
14.1 - 37.4
Used
Riflescopes
Counter Clockwise (CCW)
