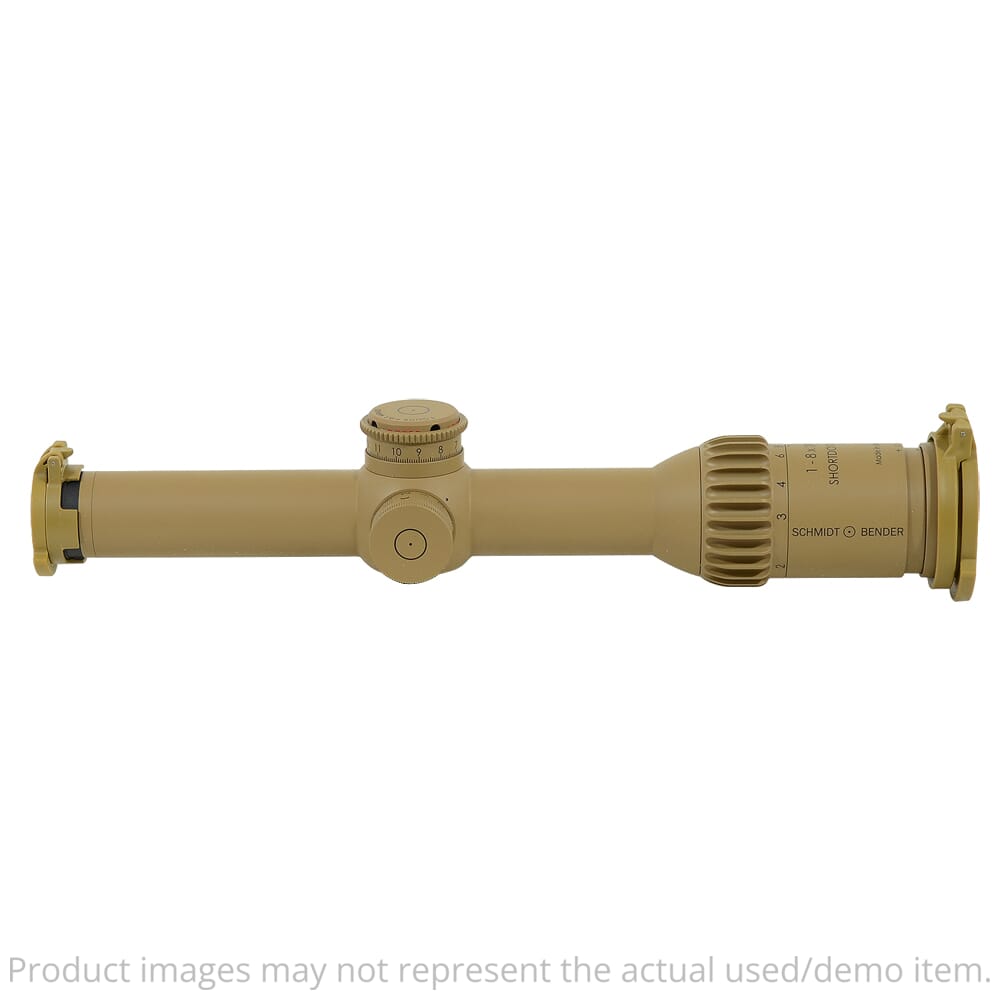

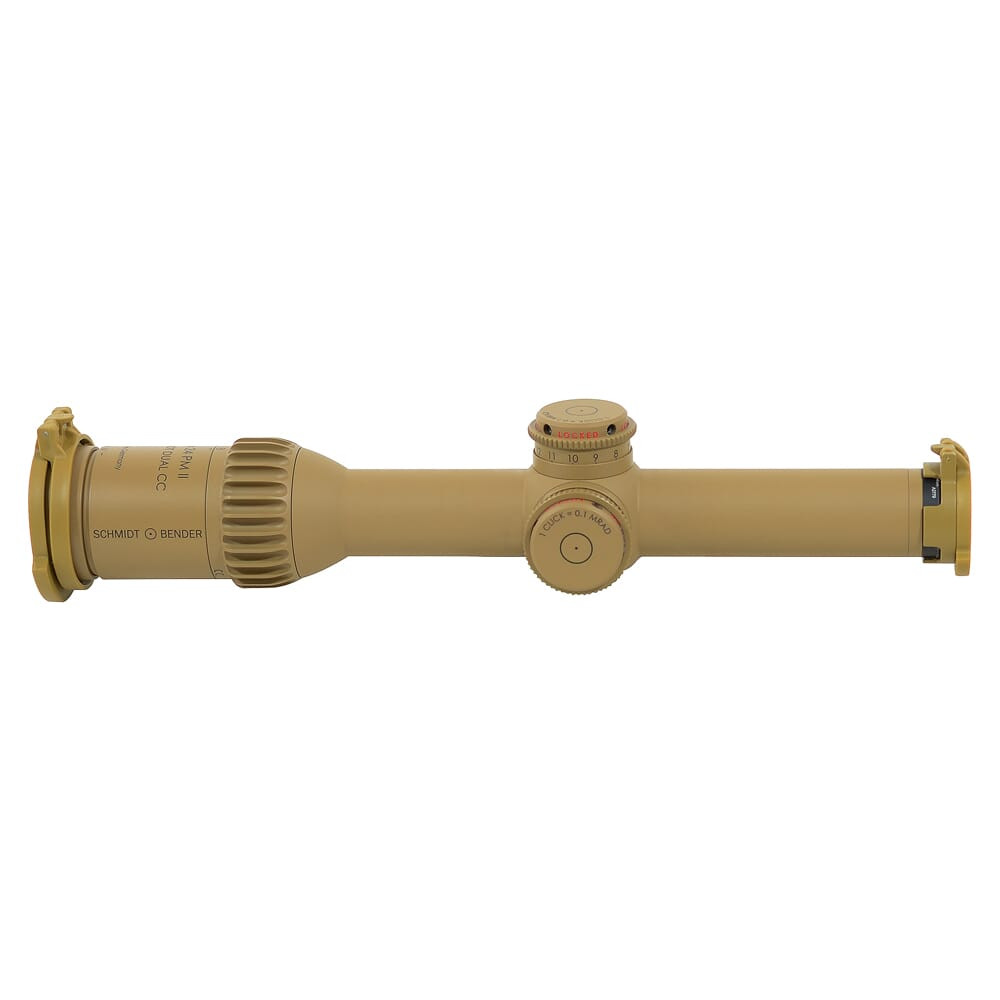

Schmidt Bender USED 1-8x24 PM II ShortDot Dual CC MDR-T6 CC 1cm ccw ST LT MTC / ST LT ZC Pantone 7504M Riflescope w/caps 683-846-43E-K2-H2 Exc Condition Very Light Ring Marks - No Box UA5225
This item may be regulated for export by the U.S. Department of State or the US Department of Commerce. Please see our Export Policy
Description
Schmidt Bender's PM II 1-8x24 ShortDot Dual CC riflescope represents the pinnacle of modern combat scope technology. The scope features true 1x low magnification (also known as close combat mode) for fast target acquisition in close quarters and 8x high magnification for easily engaging targets out to 500 yards. At low magnification the scope is parallax free to 7 meters and is parallax free out to 100 meters when magnification is increased.
The primary feature of the 1-8x24 ShortDot Dual CC riflescope is the dual focal plane reticles, the FlashDot red dot is located on the second focal plan allowing for a consistent dot size cross all magnifications, while the MilDot reticle sits on the first focal plane helping you make more accurate shots at longer ranges.
Specifications
SKU
UA5225
MPN
683-846-43E-K2-H2
Exit Pupil
9.8-3.0 mm
Eye Relief
90mm/3.54"
Field of View
35.3 - 4.9m / 100m
Illuminated Reticle
Yes
Light Transmission
>90%
Magnification Range
1-8x
Parallax Adjustment
100m Fix
Reticle Position
Dual Focal Plane

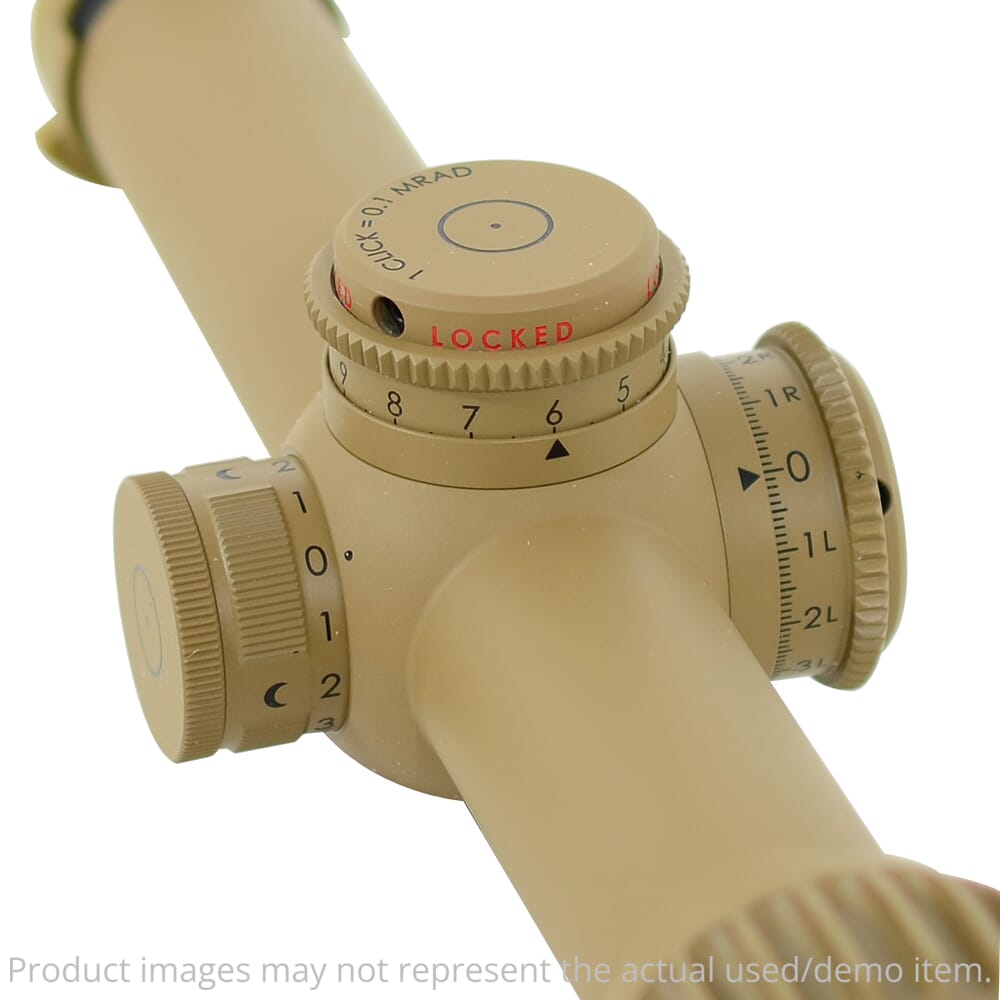

Elevation Turret Details
0 to 101cm
ST LT MTC (Single Turn, Locking Turret, More Tactile Clicks)
Scope Finish
Pantone 7504M
Scope Length
293mm/11.54"
Scope Objective Diameter
24mm
Reticle Details
MDR-T6 Reticle in 1st Focal Plane
FlashDot in 2nd Focal Plane
Scope Tube Size / Mount
30mm
Turret Adjustment (Click Value)
1cm
Scope Weight
22.54oz
Windage Turret Details
ST ZS (Single Turn; Zero Stop)
±6 mrad
Twilight Factor
14.1 - 37.4
Item Condition
Used
Product Type
Riflescopes
Scope Turret Rotation
Counter Clockwise (CCW)
