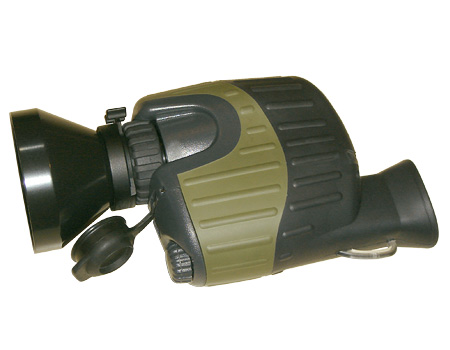

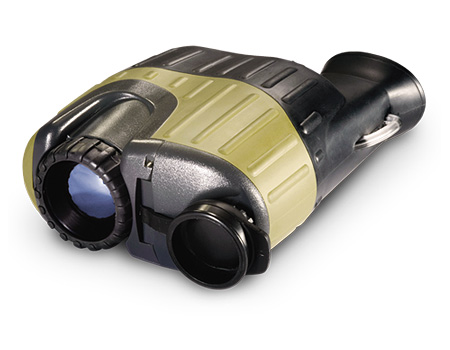

ATN Thermal Eye X200xp Thermal Camera TIMNX200

Description:

[Spec. Download]

The ATN L-3 Thermal-Eye X200 is the smallest and lightest hand-held Thermal Imaging System available on the market today. It is designed for a variety of applications including Public Safety, Security and Military.

The state-of-the-art amorphous silicon micro-bolometer technology found inside of the L-3 Thermal-Eye X200 System is what permits this camera to be so small and light. Measuring about 5 inches long and weighing only 13 ounces, the L-3 Thermal-Eye X200 Device easily fits into the palm of a hand or pocket, perfect for covert operations or convenience. The camera presents a huge advantage for the operator, providing the ability to see the unseen, even in the dark of the night, whether conducting a routine Patrol, Fugitive Search or covert Military Mission.

FEATURES

• On-screen battery level indicator
• Left- or right-hand operation with rugged slip-resistant grip
• 1/4-20 tripod mount
• Tactile battery loading feature for stealth nighttime operation
• External video and power jacks
• Long eye-relief viewfinder for use with glasses, face shield, masks, etc.
• One-Year Warranty

Specification

Magnification
Objective Focal Length	25 mm
FOV	11° x 8°
Focus Range	from 1m to infinity
Focus Adjustment	Manual
Exit Pupil
Eye Relief
Detector Type	Amorphous Silicon Microbolometer
Spectral Response	7-14 µm
Pixels
Pixel Size
Angular Resolution, mrad
Thermal Sensitivity
Range to Detect a Human	to 475 m
Output Format
Display	320 x 240 pixels
Display Format
Color	Monochrome
Digital ZOOM
Brightness Adjustment
Contrast Adjustment	Automatic
Available User Interfaces
Power Supply	2 x 1.5 V AA type battery
Start-Up Time	" 3 seconds
Operating Time w/one battery pack	2 hrs with AA/ 6 hrs with lithium

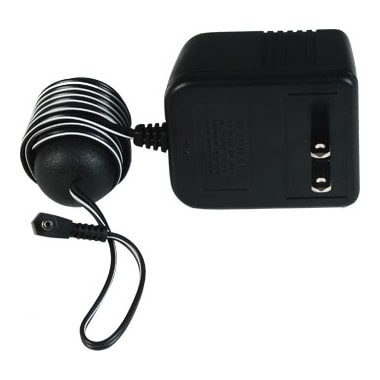

External Power Supply	12 vdc input on rear outlet jack
Operating Temperature Range	-20 to +60°C
Waterproof	Yes
Dimensions	134 x 114 x 51mm 5.25" x 4.5" x 2"
Weight (w/batteries)	380 g / 13 oz
Warranty	1 year
