Vectronix

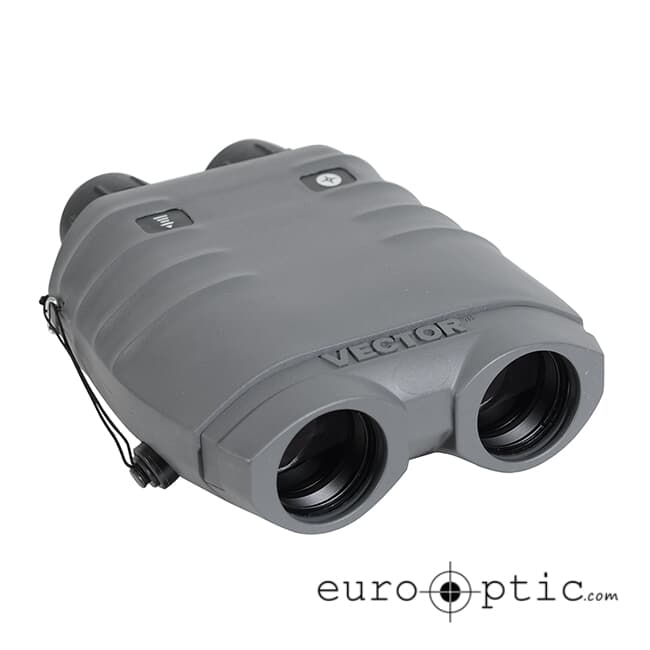

Vectronix VECTOR 21 Aero Rangefinder 906239
This item may be regulated for export by the U.S. Department of State or the US Department of Commerce. Please see our Export Policy
By adding to cart, I understand, acknowledge, and agree to the Export Policy. I am a US Person, and I do not intend to export this product. Please see our Export Policy
Description
The Vector 21 by Vectronics is a durable, high quality, and easy to use rangefinder with a reputation that speaks for itself. The Vector 21 utilizes an integrated 3-dimentional, 360 degree digital compass and a precise laser rangefinder with a class 1 eye-safe rating. It can accurately depict distance measurements up to 12 km away and provides a high level of safety with a 1.550 laser that is completely invisible to image intensification devices. The dual 42mm objective lenses provide excellent light transmission for a clear picture, even when the level of illumination is low. Operation of the Vector 21 is as simple as could be, new users can quickly adapt to its two-button control system which reduces the training and retaining efforts.
Features of the Vector 21:
- 7x magnification
- 100% eye-safe
- 6mm exit pupil diameter
- RS232 digital output
Resources
- VECTOR Brochure
- VECTOR 21 AERO Technical Data Sheet - Available On Request
- VECTOR Accessories Technical Data Sheet - Available On Request
- VECTOR Bluetooth Technical Data Sheet - Available On Request
- Tripods/Monopods Technical Data Sheet - Available On Request
Specifications
SKU
906239-Vec
MPN
906239
Dimensions
205 mm x 178 mm x 82 mm
8.1 in x 7.0 in x 3.2 in
Range
5 m to 12,000 m (5.5 yds - 13,123.36 yards)
Battery Type
6V lithium battery type 2CR5
>5,000 Measurements, low battery indicator
Beam Divergence
0.4 x 0.7 mil
Laser
1550 nm Class I Eye-Safe per IEC 60825-1 Ed 1.2
(2001-08), ANSI Z 136.1 (2000)
Measurement Units
Distance: Meter, Yard, Feet
Angle: mil, degree, gon
Measuring Time
0.4 s to 0.9 s
Repetition Rate: 12 per minute
Monocular Details
Magnification: 7x
Field of View: 120 mil/6,75°
Objective Diameter: 42mm
Focus: Fixed
Reticle: Red LED square activated by key and glass reticle with 5 mil graduation
Eye Relief: 18mm
Diopter Setting: > ± 4 diopters
Eye-base adjustment: 58.5 mm to 71.5 mm
1064 nm laser protection: Attenuation factor O.D. > 4
Angle Compensation
Azimuth accuracy (1σ) for inclination < 45°: +/-10 mil / +/- 0.6°
Maximum Inclination Angle: -30° to +90°
Inclination accuracy for inclination < 45°: +/-3 mil / +/-0.2°
Maximum bank angle: +/- 45°
Weight
<1.7 kg / 3.75 lbs (with battery)
Item Condition
New
Product Type
Rangefinding Binocular
