Vectronix
This item may be regulated for export by the U.S. Department of State or the US Department of Commerce. Please see our Export Policy
By adding to cart, I understand, acknowledge, and agree to the Export Policy. I am a US Person, and I do not intend to export this product. Please see our Export Policy

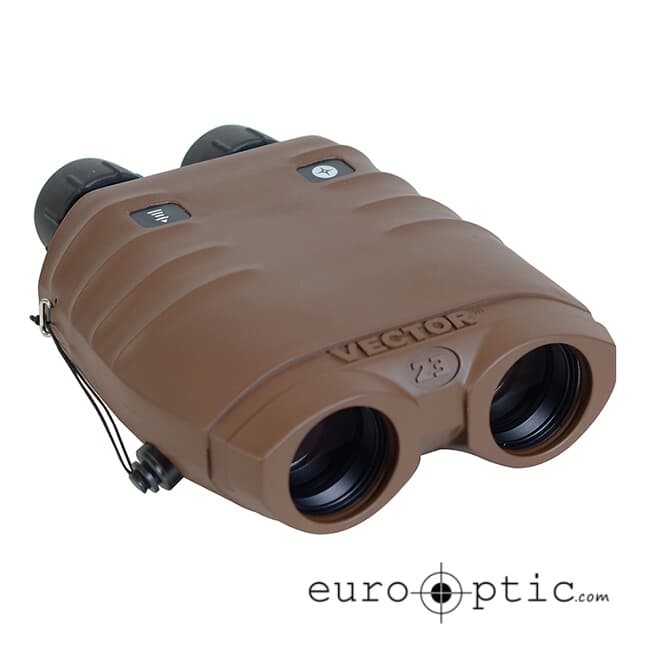

The far-ranging, highly reliable VECTOR 23 range finder contains unparalleled day optics and integrated Vectronix' 3-dimensional, 360° digital compass.
VECTOR 23 calculates range measurements of up to 25 km and provides azimuth, elevation, and cant angle as well as horizontal distance and height difference - not only between the observer and an object, but also between two remote objects.
The handheld contains a 1550nm wavelength laser which renders the device undetectable by night vision devices. Further, the VECTOR 23 unit's beam divergence is <0.3 mil, consequently allowing the handheld to accurately range smaller targets at longer ranges. All capabilities are executed with very little power consumption and like all Vectronix products, the handheld contains a Class I Eye-Safe Laser.
906098-Vec
906098
6.75°
205 mm x 178 mm x 82 mm
8.1 in x 7.0 in x 3.2 in
6mm
18 mm
120 mil
25 m to 25,000 m (27 yards to 27,340 yards)
6V lithium battery type 2CR5
Capacity: > 5,000 measurements, low-battery indicator
<0.3 mil
1550 nm Class I Eye-Safe per IEC 60825-1 Ed 2.0 (2007-03), ANSI Z 136.1 (2007)
Distance: meter, yard, feet
Angle: mil, degree, gon
< 0.6 s
Azimuth accuracy (1σ) with PPS calibration on: ± 10 mil / ± 0.6°
Inclination accuracy (1σ): +/-3 mil / +/-0.2°
Maximum inclination Angle: 45° in any direction (inclination and bank)
< 1.8 kg / 3.97 lbs (with battery)
42mm
New
Rangefinding Binocular
