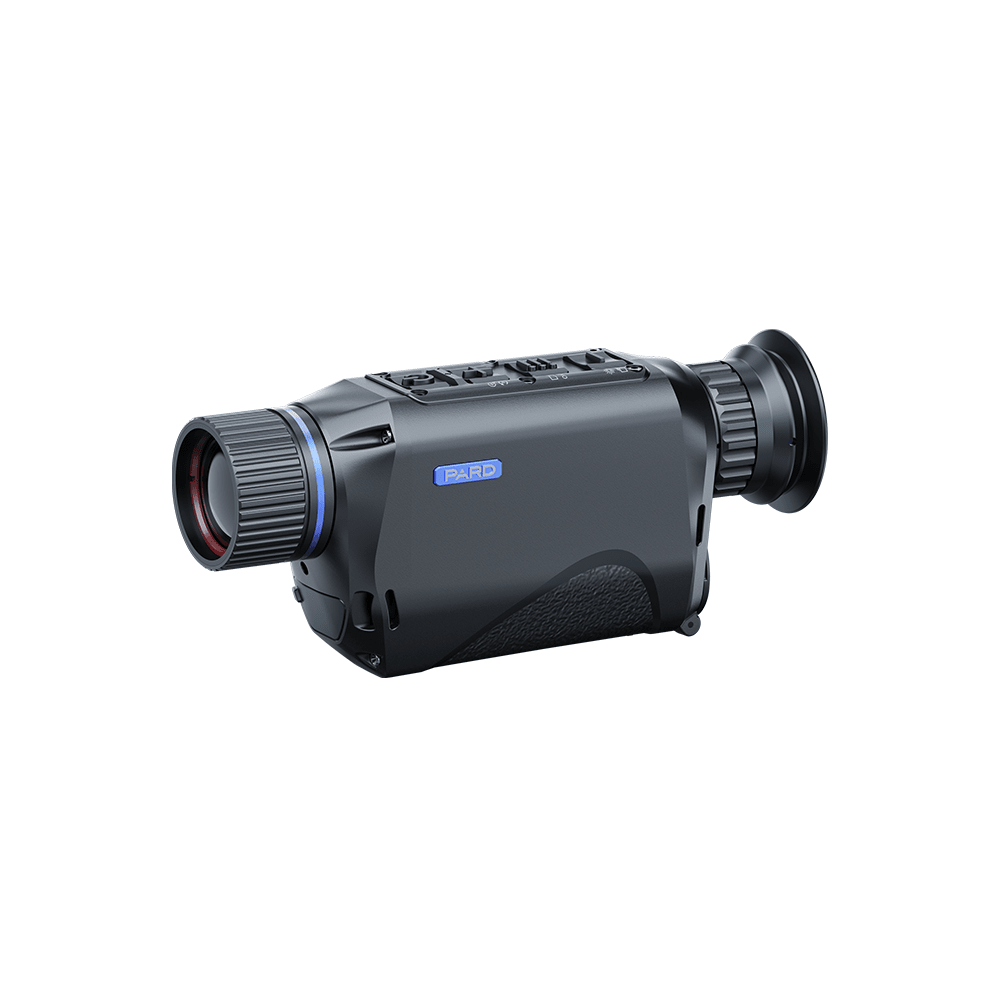

PARD TA32 25 LRF Thermal Monocular with 25mm Lens Built In Laser Rangefinder and Detection

SKU:TA32-25/L/F-PARD
(0)

Additional Payment Options

Government Export Restriction

This item may be regulated for export by the U.S. Department of State or the US Department of Commerce. Please see our Export Policy

ITAR Product

By adding to cart, I understand, acknowledge, and agree to the Export Policy. I am a US Person, and I do not intend to export this product. Please see our Export Policy

Description

The TA32-25 LRF is a thermal monocular with a 25mm lens and a 1200yd laser range finder. Its compact size conceals some of the most advanced technology in the thermal optics industry today. At only 11.5 oz (330g), it is lightweight and easily nests in the palm of your hand. It features a 2.6x optical zoom that leverages a change in the lens to adjust the distance between the camera and the target object, providing crisp and clear magnification. Additionally, it features a 2-8x digital zoom that provides additional magnification and enlarging the viewable image. With a 10.5°x7.9° field of view (FOV), you can see 394 ft FOV at 1000yds. This compact unit also features the ability to record MP4 1024x768 video of what you are viewing at the rate of 50 frames/second. Hi resolution JPEG images can be taken at 2562x1944 resolution. Images and video can be downloaded via the included HDMI cable or connected via Wi-Fi to your Android or iOS smartphone or tablet. Resolution of the display is 1024x768 OLED, backing up the 384x288 thermal sensor. This allows the TA32-25LRF to sense targets at up to 1100m. The advanced electronics have a Noise Equivalent Temperature Difference (NETD) of ≤25mK (milli-Kelvin). This is a measure of how sensitive the thermal detector is. The smaller the number, the better. Coupled with the 384x288 IR detector pixelation of 12µm (micrometers), you get an extremely sensitive device that performs even when environmental thermal contrast is low at great distances. The TA32-25LRF offers six different thermal color display modes for varying conditions – White Hot (most common), Black Hot (best for viewing wildlife at night), Red Hot (helps reduce overexposure with ambient light), Iron Hot, Edge and Sky. The 18650 removable/rechargeable battery provides up to 5 hours of use and can operate in temperature between -4° and 122° F. Conveniently carry a couple extra batteries to avoid having to leave the field due to recharge. The Ingress Protection (IP) factor rates at an industry leading IP67, providing 100% security against dust and submersion in up to 3ft of water.

Specifications

SKU

TA32-25/L/F-PARD

UPC

850042449851

MPN

TA32-25/L/F

Battery Life

up to 6 hours

Dimensions

158*73*49

Display

AMOLED

Eye Relief

20mm

Field of View

10.5°x7.9° 394 ft FOV at 1000yds

Height

73mm

Length

158mm

Magnification Range

Optical maginifcation 2 Digital Zoom(x) 2/4/8

Monocular Magnification

Optical maginifcation 2 Digital Zoom(x) 2/4/8

Polarity

Scene Mode City/Rain/Forest Image Mode WhiteHot/BlackHot/RedHot/Fusion1/Fusion2/IronRed1/IronRed2

Power Supply

18650 removeable and rechargeable type c charging port

Sensor Resolution

384x288

Size

1024*768

Optic Details

Thermal sensonr Type Uncooled VOx(vanadium oxide) Resolution(px) 384*288 Pixel Size(µm) 12*12 NETD ≤35mK(0.035℃) Frame Rate(Hz) 50

Thermal Sensitivity

≤35mK(0.035℃)

Spectral Response

Pixel Size(µm) 12*12

Weight

312g

Width

49mm

Item Condition

New

Product Type

Thermal
