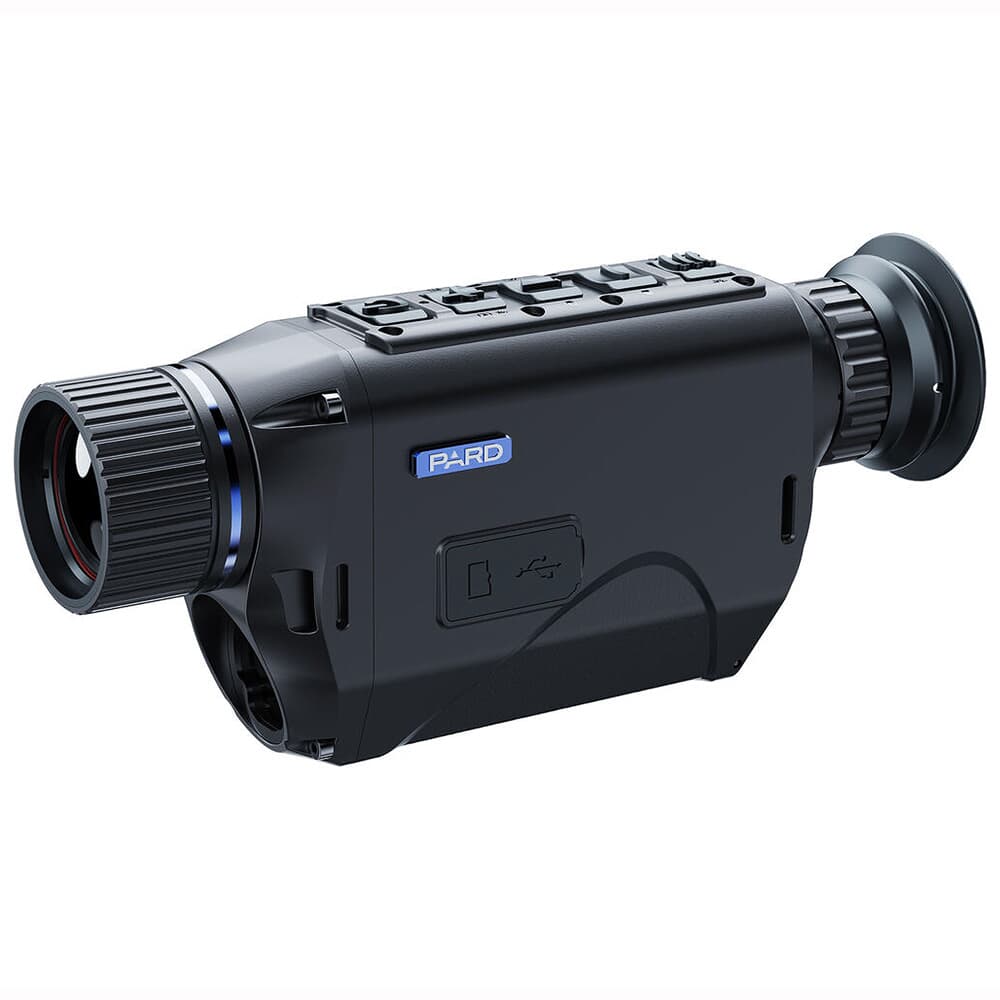

PARD TA62 25 LRF Thermal Monocular with 25mm Lens Built In LRF and High Performance Sensor

SKU:TA62-25/L/F-PARD
(0)

Additional Payment Options

Government Export Restriction

This item may be regulated for export by the U.S. Department of State or the US Department of Commerce. Please see our Export Policy

ITAR Product

By adding to cart, I understand, acknowledge, and agree to the Export Policy. I am a US Person, and I do not intend to export this product. Please see our Export Policy

Description

The TA62-25 LRF is a thermal monocular with a 25mm lens and a 1200 yard laser range finder. Its compact size conceals some of the most advanced technology in the thermal optics industry today. At only 11.5 oz (330g), it is lightweight and easily nests in the palm of your hand. It features a 1.6x optical zoom that leverages a change in the lens to adjust the distance between the camera and the target object, providing crisp and clear magnification. Additionally, it features a 2-8x digital zoom that provides additional magnification and enlarging the viewable image. It provides a 17.5°x13.1° field of view (FOV). This compact unit also features the ability to record MP4 1024x768 video of what you are viewing at the rate of 50 frames/second. Video can be downloaded via the included HDMI cable or connected via WiFi to your Android or iOS smartphone or tablet. Resolution of the eyepiece is 1024x768 OLED, backing up the 640x480 thermal sensor. This allows the TA62-25 LRF to sense targets at up to 1200m. The advanced electronics have a Noise Equivalent Temperature Difference (NETD) of ≤25mK (milli-Kelvin). This is a measure of how sensitive the thermal detector is. The smaller the number, the better. Coupled with the 640x480 sensor and a pixel pitch of 12µm (micrometers), you get an extremely sensitive device that performs even when environmental thermal contrast is low at great distances. The TA62-25 LRF offers six different thermal color display modes for varying conditions – White Hot (most common), Black Hot (best for viewing wildlife at night), Red Hot (helps reduce overexposure with ambient light), Iron Hot, Edge and Sky. The 18650 removable/rechargeable battery provides up to 5 hours of use and can operate in temperature between -4° and 122° F. Conveniently carry a couple extra batteries to avoid having to leave the field due to recharge. The Ingress Protection (IP) factor rates at an industry leading IP67, providing 100% security against dust and submersion in up to 3ft of water.

Specifications

SKU

TA62-25/L/F-PARD

UPC

850042449875

MPN

TA62-25/L/F

Battery Life

up to 6 hours

Dimensions

163*73*49

Display

AMOLED

Eye Relief

20mm

Field of View

17.5°x13.1°

Height

73mm

Length

163mm

Magnification Range

Optical maginifcation 1.6 Digital Zoom(x) 2/4/11

Monocular Magnification

Optical maginifcation 1.6 Digital Zoom(x) 2/4/11

Polarity

Scene Mode City/Rain/Forest Image Mode WhiteHot/BlackHot/RedHot/Fusion1/Fusion2/IronRed1/IronRed2

Power Supply

18650 removeable and rechargeable type c charging port

Sensor Resolution

640x480

Size

1024*771

Optic Details

Thermal sensor Type Uncooled VOx(vanadium oxide) Resolution(px) 640*480 Pixel Size(µm) 12*12 NETD ≤25mK(0.025℃) Frame Rate(Hz) 50

Thermal Sensitivity

≤25mK(0.025℃)

Spectral Response

Pixel Size(µm) 12*12

Weight

340g

Width

49mm

Item Condition

New

Product Type

Thermal
